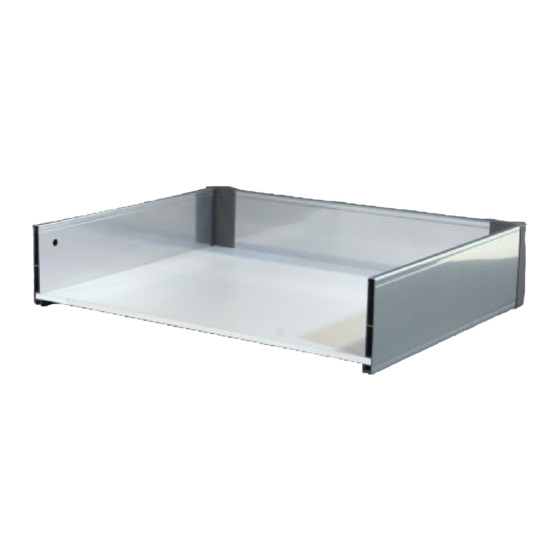

Following the new design trends we
have developed
a new drawer completely
produced in aluminum alloy.
Thanks to its 10mm thickness is
the thinner drawer in the market and also
the lighter one.
To get the perfect combo we suggest
to use our canceled runner
D26SHR.A with 3D handle.
Cassetto interamente realizzato
in lega di alluminio
seguendo le nuove tendenze del design.
I soli 10mm di spessore
lo rendono il cassetto più sottile
attualmente sul mercato.
Per sfruttare al meglio l'ALLUBOX
consigliamo l'utilizzo della nostra
guida D26SHR.A con regolazione 3D.
E07 allubox
E07
Allubox series
h.120mm.
FINISHING
FINITURE
ANODIZED
ANODIZZATO
E7
Allubox series
h.86mm.
WOOD
WHITE
LEGNO
BIANCO
VERNICIATO
002
COATED
Advertisement
Summary of Contents for Donati E07
- Page 1 E07 allubox Allubox series h.120mm. Allubox series h.86mm. Following the new design trends we have developed a new drawer completely produced in aluminum alloy. Thanks to its 10mm thickness is the thinner drawer in the market and also the lighter one.
- Page 2 E04 slimbox WORK IN PROGESS BIANCO 011 SLIMBOX is the newest drawer in our product's portfolio. GRIGIO 34 LEGNO It's a slim metal drawer with synchronized runners, they allow great and flawless sliding. Thanks to its reduced sizes inner volume is bigger and fully utilizable. Lo SLIMBOX è...
- Page 3 E05 domino Overall dimensions Ingombro DOMINO is modern and fresh RIA A it represents E01 EUROBOX evolution. Technical features, simplicity and elegant lines mark DOMINO as the perfect choice for both kitchen and bathroom. Synchronized runners ensure great stability and perfect sliding, and the new soft closing system grants a smooth closing movement.
- Page 4 E01 S eurobox incro Complete set basic components Holes position Schema di foratura H80mm EUROBOX CODE Nominal BACK bracket Cabinet front length (Nominal length) CODIC E RIA LZO Dimensioni 1.Concealed runners Left/Right 01 bianco 34 grigio 270 mm E01S 27 2.D raw er side Le ft /R igh t white....grey 01 bianco...
- Page 5 fia gm Fia ga h 130mm h 190 mm Glass si de h 130 mm. Glass si de h 190 mm. Fianco in vetro h 130 mm Fianco in vetro h 190 mm. Overall dimensions Overall dimension Ingombro Ingombro NL: Nominal length NL: Nominal length NL: Nominal length Lunghezz a nominale...
- Page 6 ROUND RAILING RECTANGULAR RAILING CESTONI BARRA SEZIONE TONDA CESTONI BARRA SEZIONE QUADRA Rectangular railing Barra a sezione quadra Round railing Barra a sezione tonda Sizes E05 series Series E01 series Sizes Series E01 series E05 series RQ E05 27 RQ E01 27 RE 05 27 RQ E05 30 RE 01 27...
- Page 7 ALUMINUM INNER DRAWER GLASS INNER DRAWER CASSETTO INTERNO ALLUMINIO CASSETTO INTERNO VETRO H 80 H 80 E05 series E05 series Series E01 series Series E01 series FRE GB 400 FR E01 80 40 E05 FR 40.80 FR E01 80 45 FRE GB 450 E05 FR 45.80 FR E01 80 50...
- Page 8 STEEL BACK SIDE ALUMINUM UNDER SINK RETRO METALLICO SOTTOLAVELLO IN ALLUMINIO H=80mm Steel back panel Retro metallico H=80 E01 S Aluminum under si nk sy st em Cabinet width H=80mm Steel back panel 400 mm RT3 40 80 fo r EUROBOX E01. 450 mm RT3.45 80 500 mm...
-
Page 9: Assembling Instructions
DIVIDER UNDER SINK DIVISORI SOTTOLAVELLO Aluminum divider for pan & pot drawer. Press fitting. Internal plastic divider as optional. Separatore in alluminio per cestone montaggio a pressione. Under sink drawer system for EUROBOX E01. Divisori interni opzionali in plastica. Standard width 900mm height 80mm, epoxy coated. Easy to assemble and quick disengage without tooling Divider cod:... - Page 10 E06 eurobox INOX CUTLERY TRAY VASCHETTE INOX Stainless steel Vaschette porta posate inox cod: length: IN 84 84 mm 16 8 mm IN168 IN 252 25 2m m 30 5 mm IN 305 IN BR45 IN BR50 Standard composition 45x45 drawer box Composizione tipo cassetto 45X45 N°...
- Page 11 E02 N BALL BEARING FULL EXTENSION eurowood system Side mounting zinc-coated drawer slid e, 45mm. high, loading 45 kg. Easy and quick front fixing Simple fixing to the cabinet member by flat head screws in the breathing for MDF or melamine wooden drawers. tab holes for a better lateral stabilit y.
- Page 12 EUROSOFT Concealed slide full extension with self and syncronized soft-closing Guida a scomparsa ad estrazione totale con self closing D26 S incro e chiusura ammortizzata sincronizzata Overall Dimensions Ingombri e Dimensionamenti Min Depth of the Inner Cabinet Nominal length = Nominal length + 13MM Inner Cabinet width Length of the Drawer=...
- Page 13 EUROSOFT Concealed slide full extension with self and syncronized soft-closing with 3D handle Guida a scomparsa ad estrazione totale con self closing D26S HR e chiusura ammortizzata sincronizzata con maniglia di sgancio 3D Overall Dimensions Ingombri e Dimensionamenti Min Depth of the Inner Cabinet Nominal length = Nominal length + 13MM Inner Cabinet width...
- Page 14 EUROSOFT Concealed slide single extension self and soft-closing Guida a scomparsa ad estrazione parziale con self closing D23 A e chiusura ammortizzata Overall Dimensions Ingombri e Dimensionamenti Min Depth of the Inner Cabinet = Nominal length +13MM Nominal length Width of the Inner Cabinet Length of the Drawer= Nominal length...
- Page 15 EUROSOFT Concealed slide single extension soft and self-closing with 3D handle Guida a scomparsa ad estrazione parziale con self closing D23 HR e chiusura ammortizzata con maniglia di sgancio 3D Overall Dimensions Ingombri e Dimensionamenti Min Depth of the Inner Cabinet Nominal length = Nominal length + 13MM width of the Inner Cabinet...
- Page 16 EVOLUTION Concealed slide single extension self and soft-closing D24 A Guida a scomparsa estrazione parziale con self closing ammortizzata Overall Dimensions Ingombri e DImensionamenti Min Depth of the Inner Cabinet = Nominal length +13MM Nominal length width of the Inner Cabinet Length of the Drawer= Nominal length...
- Page 17 Concealed slide single extension push open D23 P Guida a scomparsa ad estrazione parziale con sistema push open Overall Dimensions Ingombri e Dimensionamenti The Min Depth of the Inner Cabinet = Nominal length + 13 MM Nominal length The width of the Inner Cabinet Length of the Drawer= Nominal length...
- Page 18 Concealed slide f ull extension push open Guida a scomparsa ad estrazione totale Stabilizer for drawer STAB 01 D26 P con sistema push open Stabilizzatore per cassetti Stabilizer for drawer studied for PUSH OPEN runners. It can be used for every kind of runner for drawers.
- Page 19 Compact Complete set basic components D6 F H86/120/150mm Metal box Laterale metallico H 86/120/150 The complete set basic components Nominal Front fixing brackets Drawer set, height 86mm includes length With dowel Without dowel 1.Runners Left/Right contains: 270 mm D6.270.B D6.270 2.D raw er side Le ft /R igh t 1 set drawer profiles, powder-coated steel 300 mm...
- Page 20 SOFT-CLOSING system developed for wooden drawers with standard roller runners. Loading capacity 25Kg ( cod. RCAT3 ) Available with 40Kg loading capacity upon request ( cod. RCAT40 ) Tested at 40.000 cycles Fixings: - Plastic dowels 10X10 - Self-threading screws Sistema di chiusura SOFT-CLOSING realizzato per cassetti in legno con guide tradizionali (rotella).
- Page 21 Self-closing bottom fix clamp on roller slide Self closing bottom fix runner screw-on slide wheel 19. wheel 19. Guida scorrevole per fissaggio sottocassetto Guida scorrevole per fissaggio sottocassetto montaggio rapido con graffe e chiusura automatica montaggio a viti e chiusura automatica ruota diametro 19.
- Page 22 Self-closing bottom fix clamp-on Guida sottocassetto montaggio a vite roller slide with integrated con sistema ammortizzato integrato. soft closing system. Self-closing bottom fix screw-on Guida sottocassetto montaggio a macchina roller slide with integrated con sistema ammortizzato integrato. soft closing system. S4 pp Push-open system Soft-closing system...
- Page 23 Shelf support at sight, ABS antistatic cover. Shelf support at sight, ABS antistatic cover. The wall fixing plate allows the shelf setting. The wall fixing plate allows the shelf setting. Fixing hardware included. Fixing hardware included. Loading capacity kg 30. Loading capacity kg 30 UNI 8598/84 CATAS 13295/1 Reggimensola a vista con copertura in ABS antistatico...
- Page 24 PST R Reggimensola a scomparsa / Invisible shelf bracket PST R Invisible shelf bracket with expanding wedge. Suprime quality gas spring Metal inner part and plastic cover. suitable for folding doors. The special shape does not allow the bracket exit. Pistone pneumatico di qualita superiore per ante basculenti e a ribalta.
- Page 25 DAMPERS BFRE2 Reggimensola a scomparsa / Invisible shelf bracket Pneumatic gas spring. Pistone pneumatico. Load-bearing: Forze disponibili: 60N,80N,100N,120N,150N Standard cabinet fitting. Attacco al mobile standard. BFR103.6 Optional cabinet fitting: Attacco al mobile: Damper for cabinet doors and drawers. opzionale: Ammortizzatore per ante e cassetti. dia.
- Page 26 ASSEMBLING MACHINES DAMPERS MACCHINE MONTAGGIO PP.202 FAST 3 Semiautomatic assembling machine for side metal drawers saries”9”. Macchina semiautomatica per montaggio laterali metallici serie”9”. Rebound buffer screw fixing. Alternative: magnetic plate door fixing with screw. Sistema a cricchetto a vista montaggio a vite. Opzione: magnetico fissaggio anta a vite.
- Page 27 ASSEMBLING MACHINES MACCHINE MONTAGGIO NOTE: FAST 2 Semiautomatic assembling machine for fast eco runners series”3”. Macchina semiautomatica per montaggio guide sottocassetto serie”3”. FAST 6 FAST 1 Hand tool for EUROBOX front dowels fixing. Attrezzo inseritore per montaggio attacco frontale EUROBOX. Hand clenching tool for fast eco runners series “3”.
