User Manual

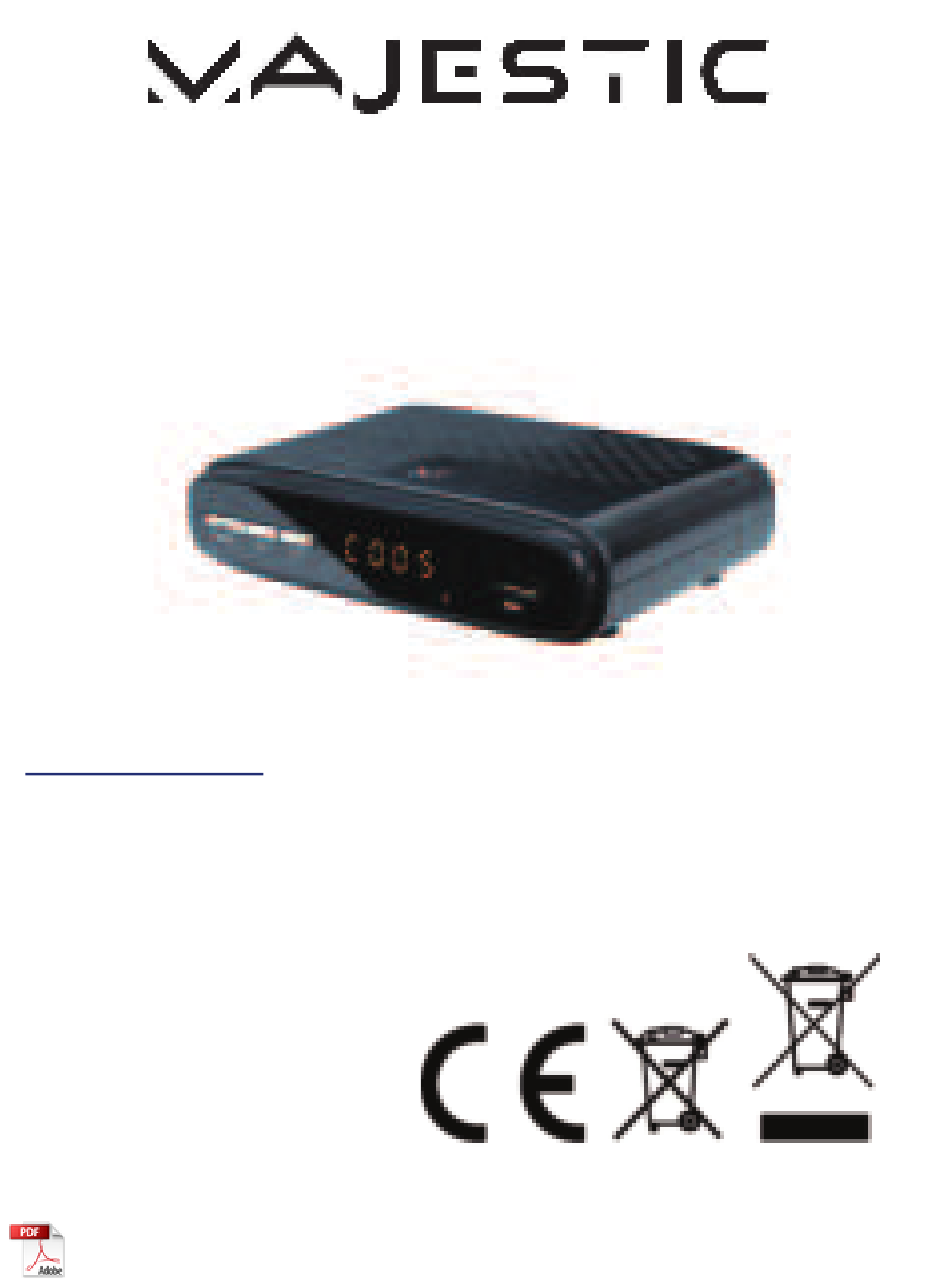

HD Digital Terrestrial Receiver
MODEL NO.: DEC 695T HD
New Majestic S.p.A.
Via Rossi Martini, 41
26013 Crema (CR) – ITALY
www.newmajestic.com
MADE IN CHINA
Please read this user manual before using or connecting this product.
And keep it handy for future reference.
0
User Manual
SAFETY WARNINGS
For safe use and maximum performance, please read this manual carefully before use.
17
Advertisement
Table of Contents
Related Manuals for Majestic DEC 695T HD
Summary of Contents for Majestic DEC 695T HD
- Page 1 User Manual HD Digital Terrestrial Receiver MODEL NO.: DEC 695T HD New Majestic S.p.A. Via Rossi Martini, 41 26013 Crema (CR) – ITALY www.newmajestic.com MADE IN CHINA Please read this user manual before using or connecting this product. And keep it handy for future reference.
-
Page 2: Dangerous Voltage
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT DISASSEMBLE THE APPLIANCE. THERE ARE NO USER SERVICEABLE PARTS. FOR REPAIRS CONTACT QUALIFIED TECHNICAL STAFF. To avoid the danger of electric shock or fire, do not expose to rain or moisture. Read all safety instructions before use. - Page 3 immerse the appliance in water or other liquids. Do not place vessels containing liquids (such as vases) on top of the appliance. • Do not touch the appliance with wet hands and do not place it near sinks, tubs or containers of liquids.
- Page 4 lThe remote control Method of learning: 1. Press remote control "SET" button and hold for 3 seconds, the red lights brightens dark; 2. Within 5 seconds, press remote control TV button you want to learn, the red light flashes; 3. Point both original TV remote control and remote control ends apart 3CM, press the TV remote control "VOL+"...
- Page 5 User Manual Battery Installation Insert the batteries (included) while observing the correct (+) and (-) polarities as illustrated bellows: 1, Remove the battery comer In the direction of the arrow. 2 Insert two 1.5V AAA batteries, Paying attention to the correct Polarities (+ and -) 3, Replace the battery cover.
-
Page 6: Front And Rear Panel
FRONT AND REAR PANEL 1.Power on/off button 2.Change channel down button 3.Change channel up button 4. Work light ON 5. LED display 6. Remote control signal sensor 7. USB jack 8. DVB-T antenna input 9. DVB-T antenna output (loop through) 10. -
Page 7: Installation
INSTALLATION CONNECTING THE RECEIVER Before you connect your STB to your TV please ensure that it’s is placed on a flat and stable surface. Please refer to the below diagram and your TVs user manual for cable installation instructions. User Manual... - Page 8 INSTALLATION GUIDE If you are using the unit for the first time or have restored the unit to Factory Default, the installation Guide Menu will appear on you TV screen. (1) [OSD Language] Press RIGHT/LEFT Key to select a language. (2) [Country] Press RIGHT/LEFT key to Select your country of residence.
- Page 9 A. Program Settings: In this menu you can edit program preferences, check the TV program guide (EPG), choose the type of channel sorting and change the duration of the information banner. B. Picture Settings: In this menu you can set the correct image ratio, depending on the TV in use, the video resolution of the HDMI output, the TV format (PAL / NTSC), the type of video signal adopted by the scart socket and the transparency level of the OSD menu.
- Page 10 If corrective software updates are published on our website www.newmajestic.com this function will allow them to be executed. G. USB Settings: The USB menu has 3 options: (a)MULTIMEDIA: While in TV mode, press the “USB” button to access to the Multimedia menu. The menu contains 3 different icons: Music, Photo and Movie.
- Page 11 Troubleshooting The below table is s list of common problems that many occur with your receiver. Fault Possible cause Unit not turned on at Ensure power plug is plugged into Power on, but nothing display mains switch wall socket and switch is on red on screen TV picture drops Antenna is not properly...
-
Page 12: Audio Decoder
TUNER Input connector IEC16902.Female Input Frequency range VHF&UHF Num of RF input Input impedance 75ohm RF output connector (Bypass)IEC 169-2 male Loop through 177.5-866MHz Demodulation Standard ETSU EN300 744 Guard interval models 1/32, 1/16, 1/8 active symbol duration FEC Modes rate 1/2,2/3,3/4,5/6.7/8 Carriers/constellation All modes supported including non hierarchical... - Page 13 INFORMATION TO USERS OF DOMESTIC EQUIPMENT Pursuant to Art. 25, Paragraph 1 of the Legislative Act N. 49 14th March 2014, "Implement of the Directives 2011/65 / EU and 2012/19 / EU concerning the reduction of the use of hazardous substances in electrical and electronic equipment, as well as waste disposal".
