VEM M21 T Series Quick Start

VEM motors Thurm GmbH

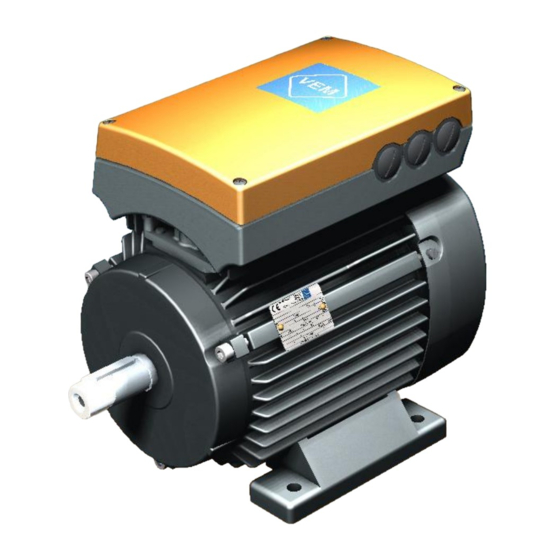

The present Quick Setup enables the user to install the Compact Drive step by step and to drive
the motor in the factory settings. This Quick Setup is handled with every drive.
Complete statements and advices to our product conception and the choice of drive as well as
complete technical data papers and listing of parameters with detailed descriptions of parameter
setup and a presentation of possible serial communication is contained in the Design Guide which
is handled with every Local Control Panel (LCP2).
NB!
Please read carefully the safety regulations and the installation instructions
in the Operating Manual or the Design Guide before putting into operation the
Compact Drive. Look at www.vem-group.com / products / drive solutions.
1.

Electrical Installation

Mains terminals

1.1.

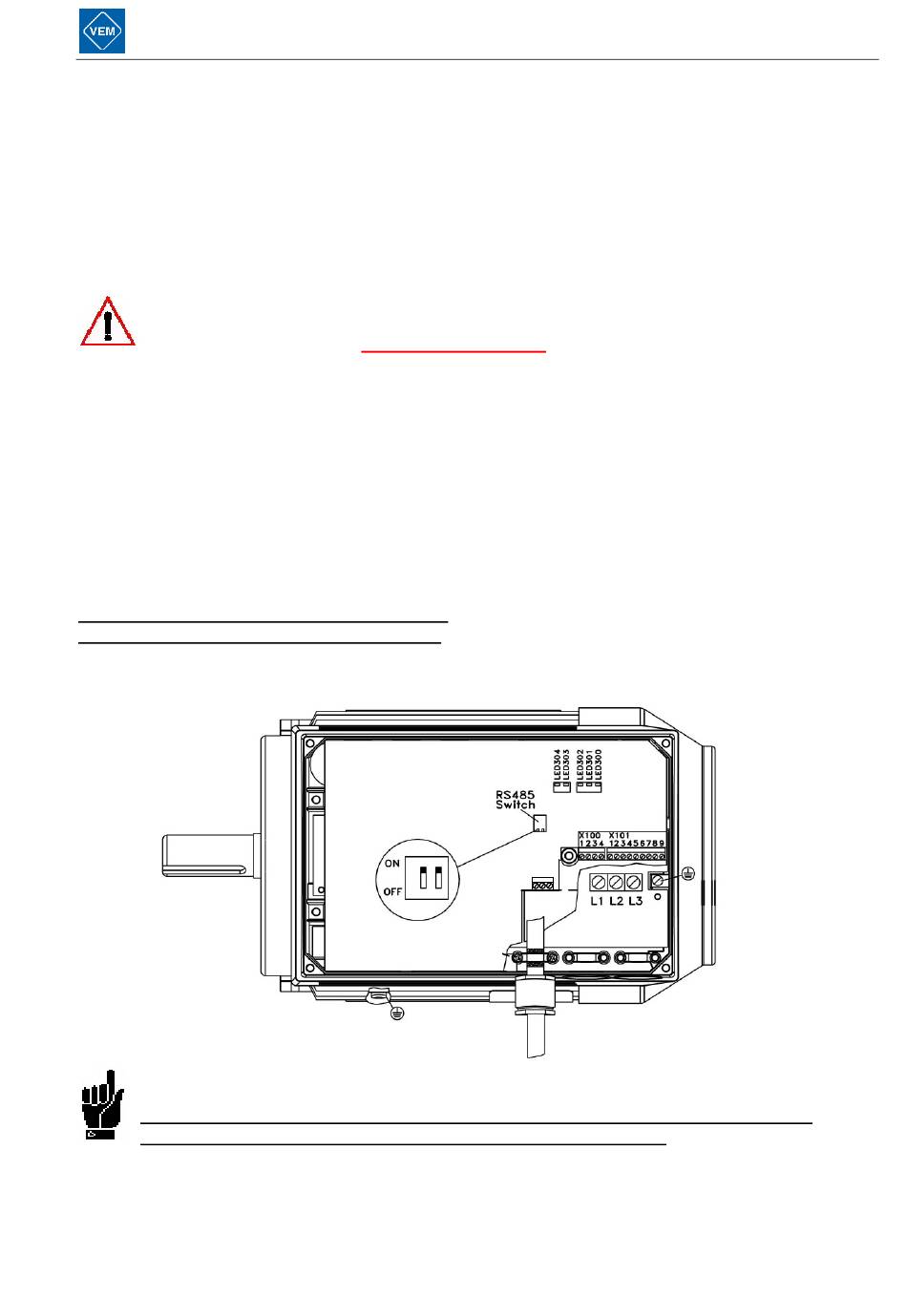

Remove the inverter box cover, which is held by four screws, to obtain access to the terminals.
Remove the detachable terminal plugs from the terminal blocks X100 (4-pole) and X101 (9-pole) to
obtain access to the mains terminals (see fig. 1).
To contact the mains terminals L1, L2 and L3
lift only the corners of the black plastic cover!
NB!
Before connecting the mains terminals L1, L2, L3 be aware that the mains supply is
identical with the voltage on the name plate of the Compact Drive
10/2005
Compact Drives Series M21 ... T
X 102
1 2 3
Quick Setup
Fig. 1
1
