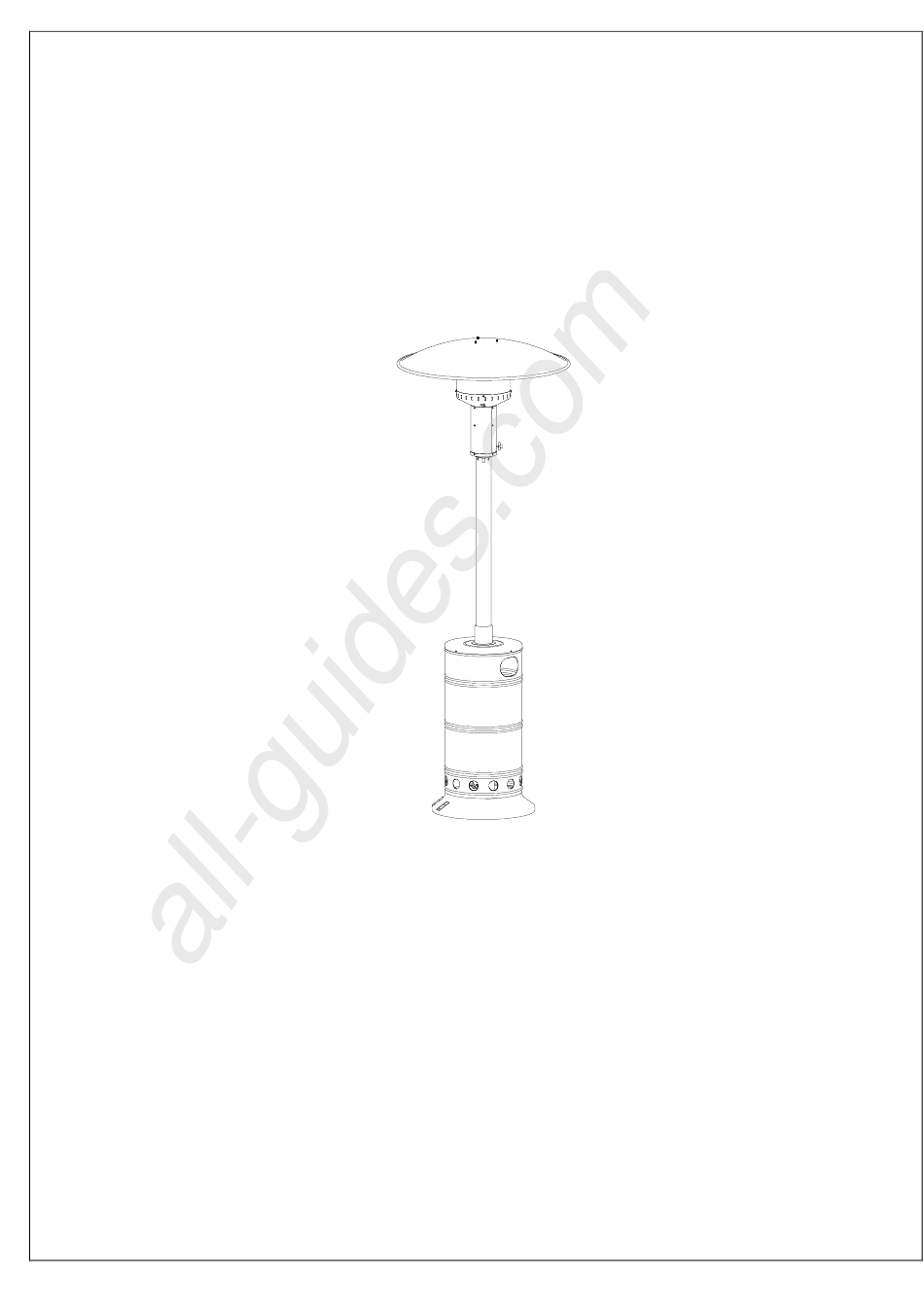

- Page 1 All manuals and user guides at all-guides.com Owner’s manual OUTDOOR PATIO HEATER APH-4000PV APH-4000SV IMPORTANT Your safety is very important, please read this manual thoroughly before you install, operate and maintain this heater. Retain this manual for future reference. If you have questions about assembly, operation, servicing or repair of this heater, please contact your selling dealer or call us directly, we will gladly provide assistance as required.
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com Table of Contents Important Warning……………………………………………………… …………2 Introduction………………………………………………………………………….3 Specification………………………………………………………………………...3 Important Safety Precautions…………………………………………….…… .3-5 Assembly…………………………………………………………………………..5 Tools required………………………………………………………………………5 Unpacking…………………………………………………………..………………5 Component List………………………………………………..…………………...6 LP gas hook up and installation of the cylinder…………………………………6 Assembly Instructions………………………………………. …………………. Installation………………………………………..…………………………….…...9 Operation……………………………………..………………………...……….…10 Preparation before lighting………………………….……………………….….. Leak Checking……………………………………….……………………………10 Lighting…………………………………………..………….. -
Page 3: Introduction
All manuals and user guides at all-guides.com recommended by the instructions. For your safety ♦ Warning: If you smell gas: 1.Shut off gas to the appliance. 2.Extinguish any open flame near the appliance. 3.If odor continues, immediately call your gas supplier or local fire department. Introduction Thank you for choosing Outdoor Patio Heater. - Page 4 All manuals and user guides at all-guides.com operating instructions. If any time gas odor is detected, shot off the appliance immediately, find and correct the leak. Please set up the propane supply with utmost care. Alert both children and elders to the hazard of high surface emperatures. Care must be taken for the supervision of children in the vicinity of an operating or hot heater.
-
Page 5: Assembly
All manuals and user guides at all-guides.com instructions, and of the hazards involved. If this heater is used in a commercial or rental installation, it is the responsibility of the purchaser to check with the local codes for properly acquainting with the safety precautions and instructions. Failure to comply with the precautions and instructions provided with this heater can result in death, serious bodily injury and property loss or damage from hazards of fire, explosion, burn, asphyxiation, carbon... -
Page 6: Lp Gas Hook Up And Installation Of The Cylinder
All manuals and user guides at all-guides.com Reflector Burner assembly Base assembly with the allast weight & Bracket uel -line ¡ Cylinder decorative cover Post / the Slip socket cover Regulator / hose assembly Fastener package Owner’s manual Wheel Kit (optional part) Figure 1) 1.4 LP gas hook up and installation of the cylinde... -
Page 7: Assembly Instructions
All manuals and user guides at all-guides.com 1.5 Assembly Instructions . Set the burner assembly on a flat Step 1 surface. Remove the protective end cap from the only one end of the male flared fitting at the end of the fuel line. Leave the other end cap on to protect the fitting while you are doing this assembly. - Page 8 All manuals and user guides at all-guides.com If you prefer the heater Step 3. comes with the wheel kit, you need to purchase them from your selling dealer. You can attach the wheel kit with the fasteners provided now. See Figure 5. Place the cylinder Step 4.
-
Page 9: Installation
All manuals and user guides at all-guides.com Connect an approved propane cylinder to regulator / hose assembly. Step 8. Properly tighten the regulator’s hand wheel and connection device to tank valve. Do not use tools. First check for leaks: Be sure the fittings at the end of the feed line going into the burner head and other end of the fuel feed line where the hose is attached are tight. -
Page 10: Operation
All manuals and user guides at all-guides.com 2.2 Minimum clearances Minimum 24” clearances from combustible materials must be maintained at all times while the heater is in operation. 3. Operation 3.1 Preparation before lighting 3.1.1 Check any possible shipping damage of the heater. If any is found, immediately contact your selling dealer or call us directly. -
Page 11: Setting Control
All manuals and user guides at all-guides.com position. Depress and hold the control knob for 2-3 minutes to purge the air from the gas line and flow of gas to the pilot assembly. Do not press on the igniter while you are purging the line. 3.3.2 Important Light step While Hold the control knob in, press the Piezo Igniter button (red button), the Piezo Igniter will be lit. -
Page 12: Maintenance
All manuals and user guides at all-guides.com Allow at least 45 minutes for the heater to cool down after using. Store the heater upright in a sheltered area away from inclement weather such as rain, snow and dust. We have our patio heater cover available to protect the burner head. We recommend using our heat head cover when your heater is in storage. -
Page 13: Troubleshooting
All manuals and user guides at all-guides.com Never use wood or plastic, it may break and block the parts. Never spray any cleaning product on the emitter grid or burner area. 6. Troubleshooting Problem Possible Cause What to do Purge gas line by holding control knob “PILOT”... -
Page 14: Service And Warranty Information
All manuals and user guides at all-guides.com 7. Service and warranty Information To learn how to service and procure parts for worn out, defective or damaged components, please contact your selling dealer or call us directly for assistance. Please provide us with heater’s model number and the serial number. - Page 15 All manuals and user guides at all-guides.com the original purchaser may have additional rights and remedies in law. 8.7 This warranty does not cover commercial or rental use.
