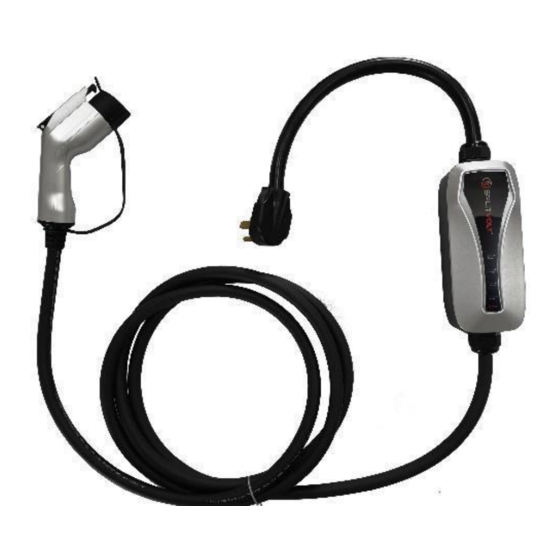

Splitvolt™ L2 Portable Fast EV Charger
Models: CGB J1-016, CGB J2-016, CGB J3-016, CGB J1-026, CGB J2-026
The Splitvolt Level 2 Portable EV Charger can charge any electric vehicle
(EV) that is equipped with a standard SAE J1772 interface. This includes
the vast majority of EVs sold in North America. The charger can also
charge any Tesla EV using the adapter that Tesla supplies with their
vehicle.
●
The CGB J1-016/026 and CGB J2-016/026 models (with 24-amp
capacity) provide the fastest possible safe charging rate from
common household 30-amp dryer circuits.
●
The CGB J3-016 model (with 40-amp capacity) provides the
fastest possible safe charging rate from a standard 50-amp
circuit.
IMPORTANT: Please read this manual and the rear sticker on charger
before use for important safety information.
QuickStart User Guide
Advertisement
Table of Contents
Related Manuals for Splitvolt L2
Summary of Contents for Splitvolt L2

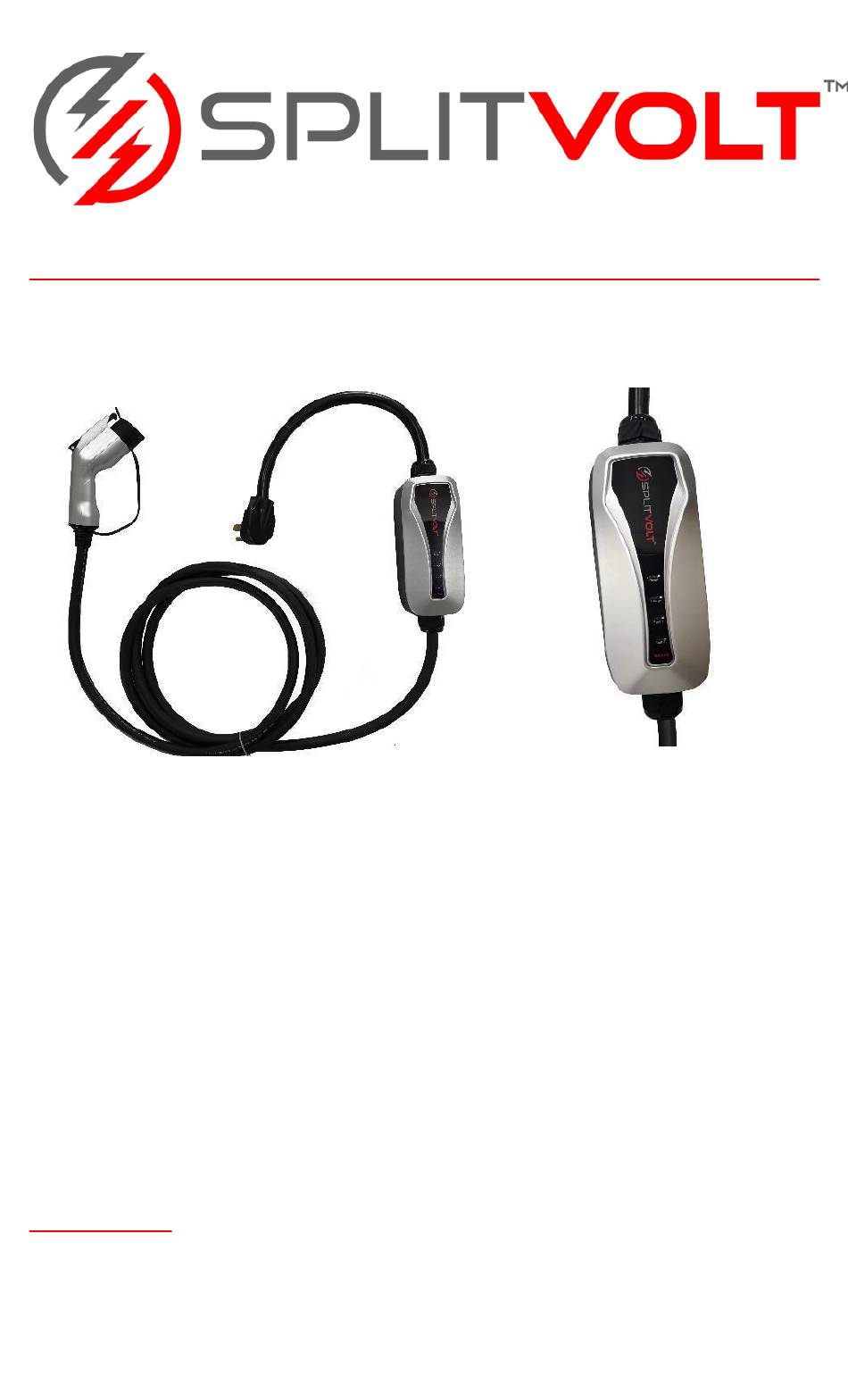

- Page 1 QuickStart User Guide Models: CGB J1-016, CGB J2-016, CGB J3-016, CGB J1-026, CGB J2-026 The Splitvolt Level 2 Portable EV Charger can charge any electric vehicle (EV) that is equipped with a standard SAE J1772 interface. This includes the vast majority of EVs sold in North America. The charger can also charge any Tesla EV using the adapter that Tesla supplies with their vehicle.
-
Page 2: Contact Information
● Easy to use: just plug it into your NEMA 10-30, 14-30, or 14-50 wall socket or your Splitvolt Splitter Switch and connect it to your EV ● See the charging state at a glance via 4 LEDs (see table below) ●... -
Page 3: Product Diagram
READY/CHARGE, POWER indicators are all green How to stop charging 1. Press the button and disconnect the J1772 vehicle connector from the vehicle inlet 2. Close protective cap of vehicle inlet 3. If necessary, disconnect the plug from the socket outlet Splitvolt, Inc. -
Page 4: Led Indications
If you are having trouble, note the LEDs on your unit and consult the table above to determine the status of your system. Then follow the steps in the table below to resolve the problem. Check our website (www.splitvolt.com) and contact us if you are still unable to resolve. Condition Resolution... -
Page 5: Need More Help
Unplug from wall power and EV, contact an Overheated electrician Need more help? Please visit www.splitvolt.com, email info@splitvolt.com, or call (650) 209-0091 and leave a message with your contact information, product model number and the issue you are experiencing. Specifications Description... - Page 6 Over and under frequency Operating temperature –25°C ~ +55°C Storage temperature –40°C ~ +80°C Operating humidity 20%–85% Cable length 26’ (8 meters) 17.7 x 4.7 x 13.4 in Package dimensions (45x12x34 cm) Package weight 6.4 lb (2.9 kg) Splitvolt, Inc.
- Page 7 This warranty does not cover damages as a result of an accident; resulting from the use or misuse of parts not manufactured or sold by Splitvolt, Inc; or resulting from modification of the Splitvolt Charger.
