19 inch TFT LCD Monitor
HS191
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS191 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hanns.G HS191

Summary of Contents for Hanns.G HS191

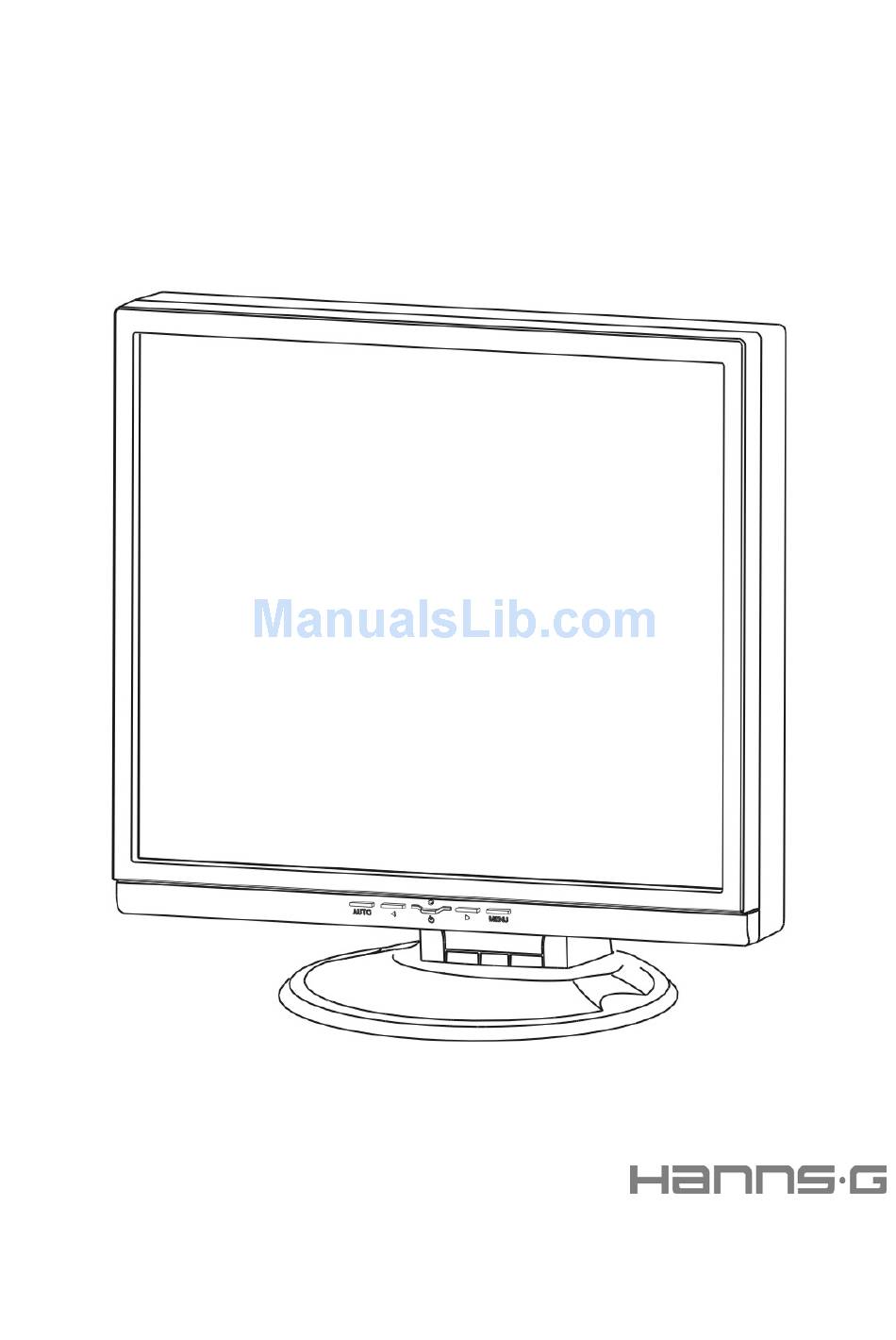

  • Page 1 19 inch TFT LCD Monitor HS191 USER’S MANUAL...
  • Page 2 User’s Manual Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 3 Some of the features of the TCO’03 Display requirements: Ergonomics Good visual ergonomics and image quality in order to improve the working environment • for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability. Energy Energy-saving mode after a certain time –...

  • Page 4: Recycling Information

    User’s Manual Recycling Information We, the HannStar Display Corp. care very much about our environment protection strategy and firmly believe that it helps us have healthier earth via appropriate treatment and recycling of industrial technology devices at the end-of-life. These devices contain recyclable materials, which can be re-decomposed and re-integrated intobrand-new marvels.

  • Page 5: Table Of Contents

    SAFETY NOTICE ... 6 PRECAUTIONS ... 6 SPECIAL NOTES ON LCD MONITORS ... 7 BEFORE YOU OPERATE THE MONITOR ... 8 FEATURES ... 8 CHECKING THE CONTENTS OF THE PACKAGE ... 8 INSTALLATION INSTRUCTIONS ... 9 POWER... 9 CONTROLS AND CONNECTORS... 10 ADJUSTING THE VIEWING ANGLE ...

  • Page 6: Safety Notice

    User’s Manual SAFETY NOTICE 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

  • Page 7: Special Notes On Lcd Monitors

    SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. • Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears. •...

  • Page 8: Before You Operate The Monitor

    User’s Manual BEFORE YOU OPERATE THE MONITOR FEATURES • 19” TFT Color LCD Monitor • Crisp, Clear Display for Windows • Recommended Resolutions: 1280 X 1024 @60Hz ® • EPA ENERGY STAR • Ergonomic Design • Space Saving, Compact Case Design CHECKING THE CONTENTS OF THE PACKAGE The product package should include the following items: (Reference only, the real feature is depended on selected model)

  • Page 9: Installation Instructions

    INSTALLATION INSTRUCTIONS Install INSTALLATION: 1. Align the monitor with the opening in the base. 2. Note that the longer section of the base points forward. 3. Snap the monitor into its base. A clear click sound will affirm that the base is connected correctly.

  • Page 10: Controls And Connectors

    User’s Manual CONTROLS AND CONNECTORS CABLE CONNECTIONS: Turn off your computer before performing the procedure below. 1. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer’s D-Sub port. 2.

  • Page 11: Adjusting The Viewing Angle

    ADJUSTING THE VIEWING ANGLE • For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. • Hold the stand so you do not topple the monitor when you change the monitor’s angle. •...

  • Page 12: Operating Instructions

    User’s Manual OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences.

  • Page 13: Front Panel Control

    FRONT PANEL CONTROL • Power Button: Press this button to switch ON/OFF of monitor’s power. • Power Indicator: Green — Power On mode. Orange — Off mode. • MENU / ENTER: 1. Activate the OSD menu or adjust the function settings and confirmation or 2.

  • Page 14: How To Adjust A Setting

    User’s Manual HOW TO ADJUST A SETTING OSD Diagram OSD Description Brightness adjustment: Select the 「 Brightness 」 option on the 「 Main Menu 」 . Enter the option and adjust the level. Contrast adjustment: Select the 「Contrast」 option on the 「Main Menu」.
  • Page 15 OSD Diagram OSD Description Clock adjustment: Select the 「Clock Adjustment」option to reduce the vertical flicker of characters on the screen. Enter the option and adjust the level. Phase adjustment: Select the 「Phase Adjustment」option to reduce the horizontal flicker of characters on the screen.
  • Page 16 User’s Manual OSD Diagram OSD Description How to set the OSD: Select 「OSD Setting」on the 「Main Menu」, and then enter the option. OSD horizontal adjustment: Select the 「OSD H-Position」option to adjust the horizontal position of the OSD. Enter the option and adjust the level. OSD vertical position adjustment: Select the 「OSD V-Position」option to adjust the vertical position of the OSD.
  • Page 17 User’s Manual OSD Diagram OSD Description OSD color setting: Select the 「OSD Color」setting option to adjust the color of the OSD. Enter the option and adjust the level. Language: Select the 「Language」 option to change the language of the OSD. Enter the option and select a language.

  • Page 18: Plug And Play

    User’s Manual OSD Diagram PLUG AND PLAY Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.

  • Page 19: Technical Support (Faq)

    TECHNICAL SUPPORT (FAQ) Q & A FOR GENERAL DEFECTIVE PROBLEM & QUESTION Power LED is not on No Plug & Play Picture is dim, bright or fuzzy Picture bounces or a wave pattern is present in the picture The power LED is ON (orange) but there’s no video or no picture.

  • Page 20: Error Message & Possible Solution

    User’s Manual ERROR MESSAGE & POSSIBLE SOLUTION CABLE NOT CONNECTED : 1. Check that the signal-cable is properly connected, If the connector is loose, tighten the connector’s screws. 2. Check the signal-cable’s connection pins for damage. INPUT NOT SUPPORT : Your computer has been set to unsuitable display mode, set the computer to display mode given in the following table.

  • Page 21: Appendix

    APPENDIX SPECIFICATIONS LCD Panel Input Display Colors Max. Resolution Plug & Play ® EPA ENERGY STAR Audio output Input Connector Maximum Screen Size Power Source Environmental Considerations Dimensions Weight (GW/NW) Regulatory Compliance ***The above specification is subject to actual panel specification and is subject to change without prior notice.

  • Page 22: Connector Pin Assignment

    User’s Manual CONNECTOR PIN ASSIGNMENT 15 - Pin Color Display Signal Cable: PIN NO. DESCRIPTION Green Blue Ground Ground R-Ground G-Ground B-Ground 24 - Pin Color Display Signal Cable: (Dual Input Mode) PIN NO. DESCRIPTION TMDS Data 2- TMDS Data 2+ TMDS Data 2/4 Shield TMDS Data 4- TMDS Data 4+...
