Children should be supervised to ensure that they do not play with the appliance.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible
for their safety.
applicable to your area of operation.
operate equipment.
the motor is switched off and disconnected from the battery(s) before attempting any manual weed removal.
electrical short circuit and void the warranty.
precautions for servicing the motor, do not perform this service.
FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN PROPERTY DAMAGE, FIRE, ELECTRIC SHOCK, DROWNING, OR OTHER
SERIOUS INJURY OR DEATH.
These product warnings, instructions and safety rules provided with the product represent some
common risks of water recreation devices and do not cover all instances of risk and danger.
Please use common sense and good judgement when enjoying any water activity.
SAVE THESE INSTRUCTIONS

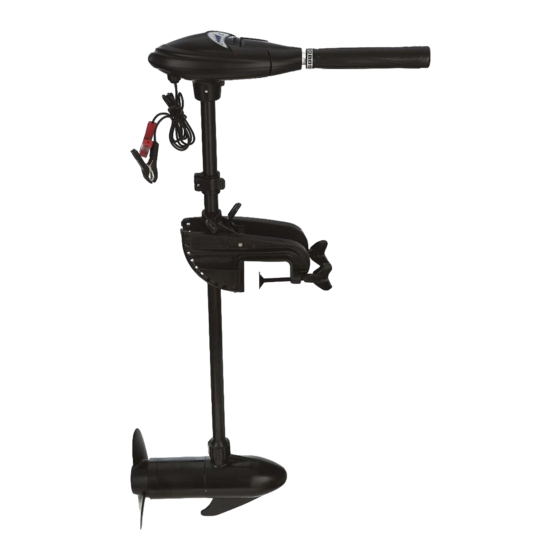

12 VOLT TROLLING MOTOR
Model BM4212
WARNING
Voltage:
Max. current:
Max. power:
Thrust:
Speeds:
Shaft length:
Suitable for:
Mounting type:
Requirement: a deep cycle marine 12volt battery with at least 60 ampere
hours rating.
Note:
product. Not to scale. Boat, battery and motor mount board are not
included.
(173PO) 12 VOLT TROLLING MOTOR ENGLISH 7.5" X 10.3" 05/21/2012
12V DC
35A
420W
40 Lbs (180N)
Maximum loaded boat weight: 2000Lbs (909kg)
5-forward / 3-reverse
36" (91.4cm)
Freshwater and saltwater
Transom mounting only
Page 1
173
173
PO
PO
173-*PO--R0-1305
Advertisement
Table of Contents
Troubleshooting
Summary of Contents for Intex BM4212
- Page 1 (173PO) 12 VOLT TROLLING MOTOR ENGLISH 7.5” X 10.3” 05/21/2012 12 VOLT TROLLING MOTOR Model BM4212 WARNING Children should be supervised to ensure that they do not play with the appliance. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 2 (173PO) 12 VOLT TROLLING MOTOR ENGLISH 7.5” X 10.3” 05/21/2012 Overview: Battery meter & Weed escape control button Tilt / twist / tiller extension handle Control box Quick release depth collar / Tilt lock lever steering tension knob Multi-position mounting bracket Clamp screws Motor Propeller...
- Page 3 (173PO) 12 VOLT TROLLING MOTOR ENGLISH 7.5” X 10.3” 05/21/2012 Shaft depth and steering tension adjustment 1. Open the lever arm of the quick release depth collar Quick Release Depth Collar / lever arm and slowly slide the shaft up or down to the desired depth.
- Page 4 (173PO) 12 VOLT TROLLING MOTOR ENGLISH 7.5” X 10.3” 05/21/2012 Tilt and extension handle adjustment and operation Tilt / twist / tiller extension handle IMPORTANT: To use the downward position, you must press the release button located on the underside of the pivot handle, and then push the desired position.
- Page 5 (173PO) 12 VOLT TROLLING MOTOR ENGLISH 7.5” X 10.3” 05/21/2012 Boat rigging and motor installation An over-current protection device (circuit breaker or fuse) must be used with this motor. The oast Guard requires that each ungrounded current-carrying conductor must be protected by a manually reset, trip-free circuit breaker or fuse.
- Page 6 (173PO) 12 VOLT TROLLING MOTOR ENGLISH 7.5” X 10.3” 05/21/2012 2. Motor loses power after a short running time: 3. Motor is hard to steer: a. Loosen the steering tension knob on the top of the mounting bracket. b. Lubricate the composite shaft. a.
- Page 7 (173PO) 12 VOLT TROLLING MOTOR ENGLISH 7.5” X 10.3” 05/21/2012 Limited Warranty Your 12 Volt Trolling Motor has been manufactured using the highest quality materials and workmanship. Warranty applies only to the 12 Volt Trolling Motor. This Limited Warranty applies only to the original purchaser and is not transferable. This Limited Warranty is with this manual, as proof of purchase will be required and must accompany warranty claims or the Limited Warranty is invalid.
