Summary of Contents for Scolmore ESP beacon BA4ZM

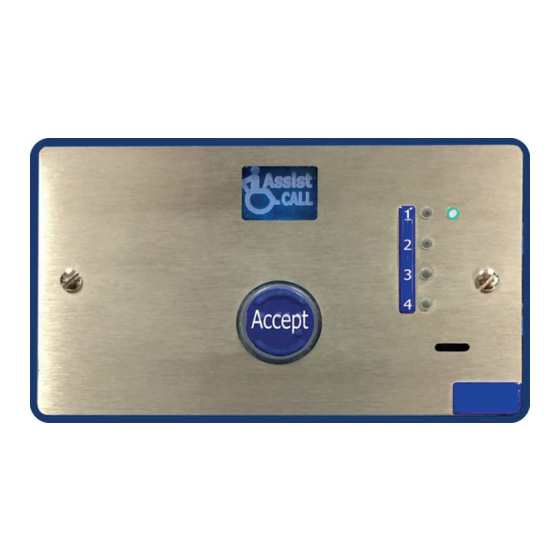

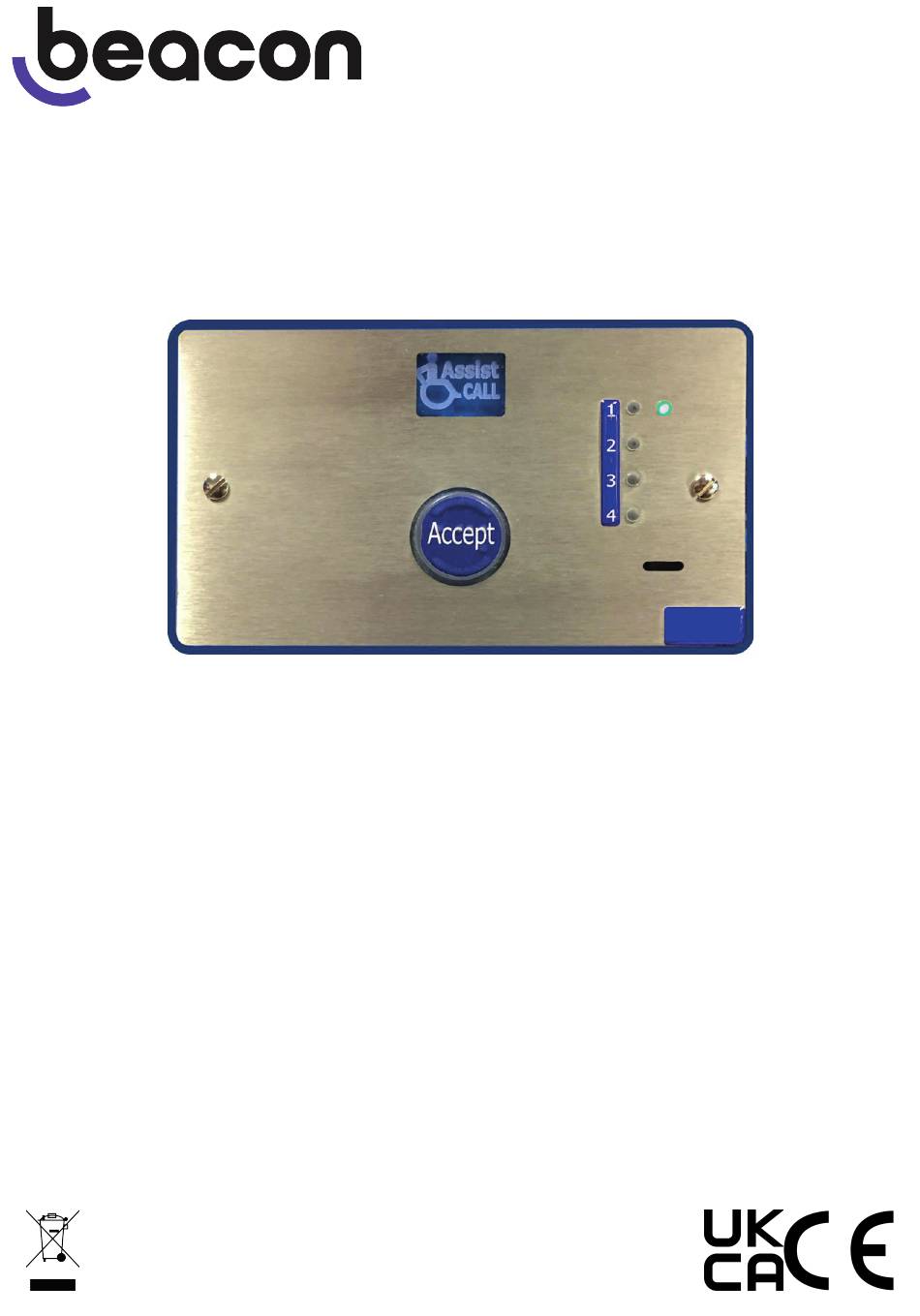

- Page 1 Assist Call BA4ZM Four Zone Controller Installation and Operation Manual...
- Page 2 Table of Contents Introduction .......................... 3 What is an Emergency Assistance Alarm ? ................ 3 Suitability ........................3 Product Overview ........................3 Design Guidelines ........................3 Ceiling Pull Cord location ....................3 Overdoor Indicator location ..................... 3 Cancel/reset point location ....................3 Important Safety Information ....................
- Page 3 1 Introduction 1.1 What is an Emergency Assistance Alarm ? An emergency assistance alarm is used by disabled people to summon assistance. The system generally consists of a ceiling mounted pull cord, a cancel plate, and an over door indicator plate.
- Page 4 4 Important Safety Information This Equipment must only be installed and maintained by a suitably skilled and competent person. This Equipment is defined as Class 2 in EN60950 (Low Voltage Directive) and must be EARTHED. Caution Indoor Use Only Shock Hazard- Warning Isolate Before Opening TO REDUCE THE RISK OF FIRE OR ELECTRIC...
- Page 5 Anti-static handling guidelines Make sure that electrostatic handling precautions are taken immediately before handling PCBs and other static sensitive components. Before handling any static-sensitive items, operators should get rid of any electrostatic charge by touching a sound safety earth. Always handle PCBs by their sides and avoid touching any components. 4.1 Unpacking the BA4ZM Remove the equipment from its packing, and check the contents against the following list: BA4ZM - Four zone controller, c/w 6 no 2 way fitted connectors.
- Page 6 Optional Battery Back Up If battery backup is required use BA4ZMPSBB battery pack, this requires an additional double socket box which should be mounted directly underneath the BA4ZMPS. The battery is complete with pre terminated battery wires which connect to the BA4ZMPS via a JST connector marked battery. The field devices are wired to the four terminals marked Zones 1 to 4, 0 and +, the devices are polarity sensitive, cabling between the controller and the devices is 2 core 1 mm CSA flex, wired in a radial circuit.
- Page 7 5.3.4 Lamp + Buzzer Test When the accept button is pressed for 5seconds a lamp and buzzer test will be performed, the test is cancelled by pressing the button again. 5.4 System Operation 5.4.1 Raising the Alarm inside the WC The person in distress raises the alarm by pulling on one of the red pull cord bangles, the blue indicator on the ceiling plate will indicate steady blue and the blue indicator flash and sounder will activate on the cancel plate.
- Page 8 Elite Security Products UK, Unit 7 Target Park, Shawbank Road, Lakeside, Redditch, Worcestershire, B98 8YN Tel +44(0)1527 515 150, Fax +44(0)1527 150 143; Email info@espuk.com Registered in England Number Company Registration No: 02769392, VAT Registration GB614686525 For more product information please visit www.espuk.com E&OE - Errors and omissions excepted.K21 Page 8 of 8...
