Important Information:
Please check with your local regulations prior to using this item. Some municipalities have
restrictions and requirements.
The fire place is intended for outdoor use only.
Do not use on wood decks or other wooden surfaces. If used on grass, then cover grass with a
thick layer of sand.
The fire place is intended to burn wood logs only. Do not burn coal, leaves or other combustible
materials in the fire place.
Do not use flammable or combustible objects or materials near this burning unit.
Not for use by children. Always keep children and pets away from fire place.
Use the fire place with caution. When the fire place is in use, the handle and the mesh screen will be
extremely hot and will cause injury to an unprotected hand. Please use the poker or an appropriate
heat resistant glove or pad when handling.
Never leave burning cook pit unattended and always extinguish fire completely before leaving the
fire place.
Clean and dry the product completely after each use.
Assembly Instruction

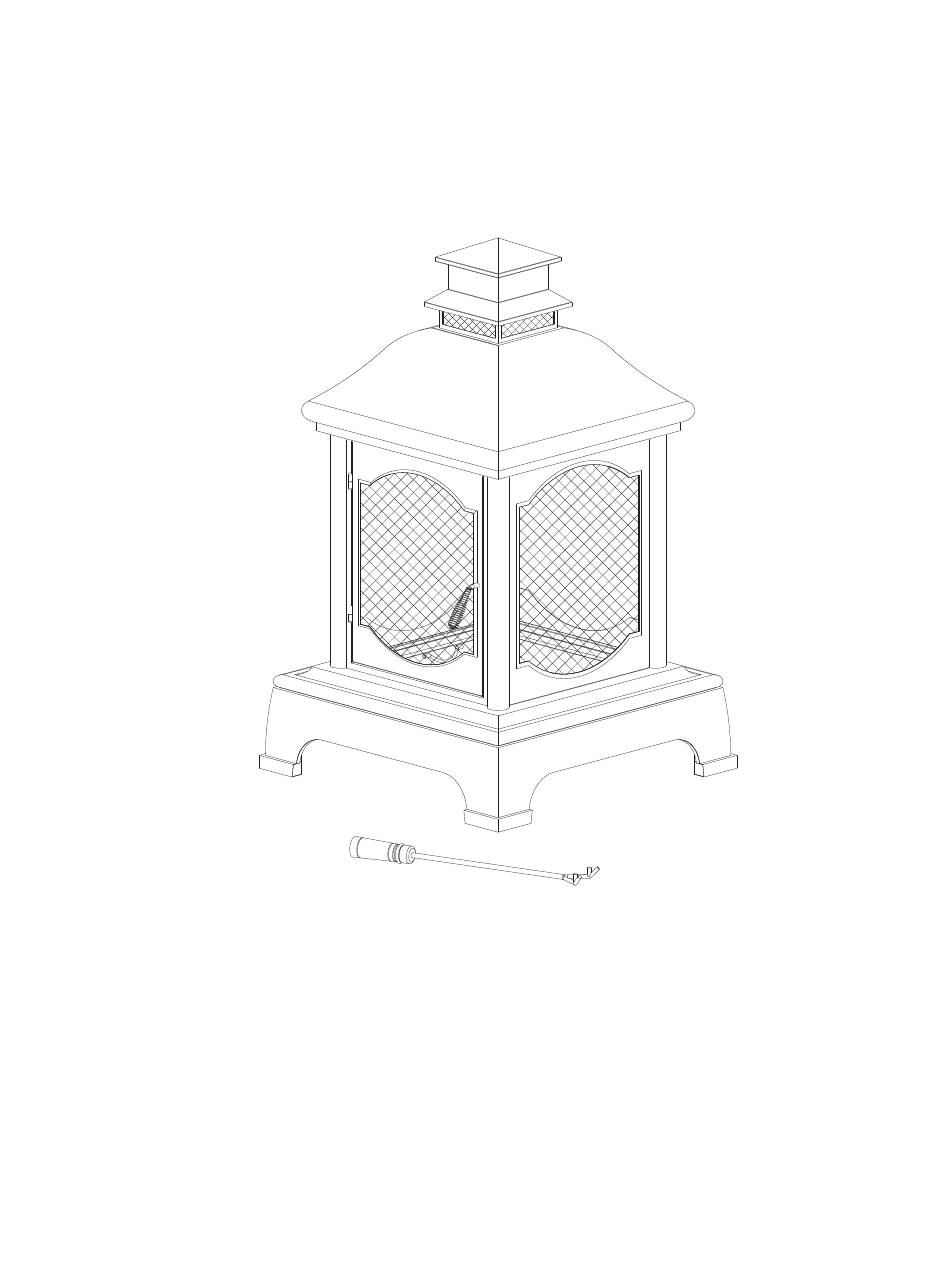

Item# L-CM057PST
