DT Research DT122 Basic Operation Manual

DT122

Options

The Dt122 is designed to work with a range of custom and off-the-shelf options to enhance its
applicability for various deployments.
• Built-in wireless LAN, with external antenna

SPECIFICATIONS

System
Processor
Intel® Atom™ Z530, 1.6GHz
GPU
Poulsbo SCH
Memory (RAM)
2GB
Storage 8GB to 16GB Flash or 32GB to 64GB SSD
Microsoft® Windows® XP Embedded or Windows® XP Pro for
Operating Systems
Embedded Systems
Display Resolution Up to 1280 x 1024
10/ 100/ 1000Mb BaseT LAN;
Network Interface
Wi-Fi 802.11a/b/g or Wi-Fi 802.11a/b/g/n (optional)
Expansion PCI Express
1 HDMI connector; 1 DVI port; 12V DC-in jack;
2 Audio jacks (Microphone-in, Line-in, Headphone-Out jacks);
Input/Output Ports
4 USB 2.0 ports; RJ45 connector for Ethernet;
Wi-Fi dipole antenna (optional)
Power
AC/DC Adapter
Input: 100 – 240V AC; Output: 12V DC
Mechanical
Enclosure
Aluminum + steel
Dimensions
1.4 x 5.5 x 5.1 in/ 35 x 140 x 130 mm
(H x W x D)
Weight
0.88 lbs/ 400 g
Environmental
Regulatory
FCC Class B, CE, C-Tick, UL, RoHS compliant
Temperature
Operation: 0°C - 40°C; Storage: -20°C - 60°C
Humidity
0% - 90% non-condensing
* Specifications subject to change without notice.
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131
Copyright © 2012, DT Research, Inc. All Rights Reserved. DT Research is a registered trademark of DT Research, Inc.
BOG071812DT122ENG
signage dtri com
4
ENGLISH
http://www.dtresearch.com
Embedded Controller/
System
DT122
BASIC OPERATION GUIDE
ENGLISH

INTRODUCTION

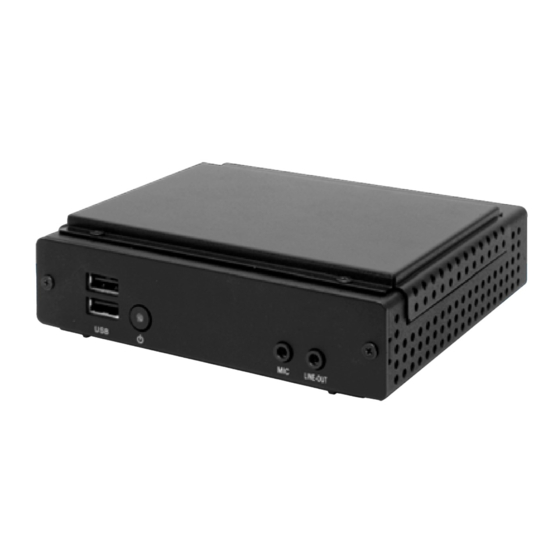

Thank you for acquiring the latest addition to DT Research's line of Embedded Controller/ System
devices - the DT122, featuring compact, robust construction powered by the energy efficient Intel®
Atom processor. The DT122 supports major embedded operating systems as well as Microsoft®
Windows® XP Embedded and Windows® XP Pro and provides complete solutions for a variety of
computing needs. The user is offered a choice of software solutions on a platform characterized by
the following:
• High-integration and energy-efficient processor technology
• Expanded graphics capabilities for multimedia applications
• Robust construction for reliable operation
• Cost-effective computing in compact packaging
1
Note: The actual package contents may vary depending on the configuration acquired.

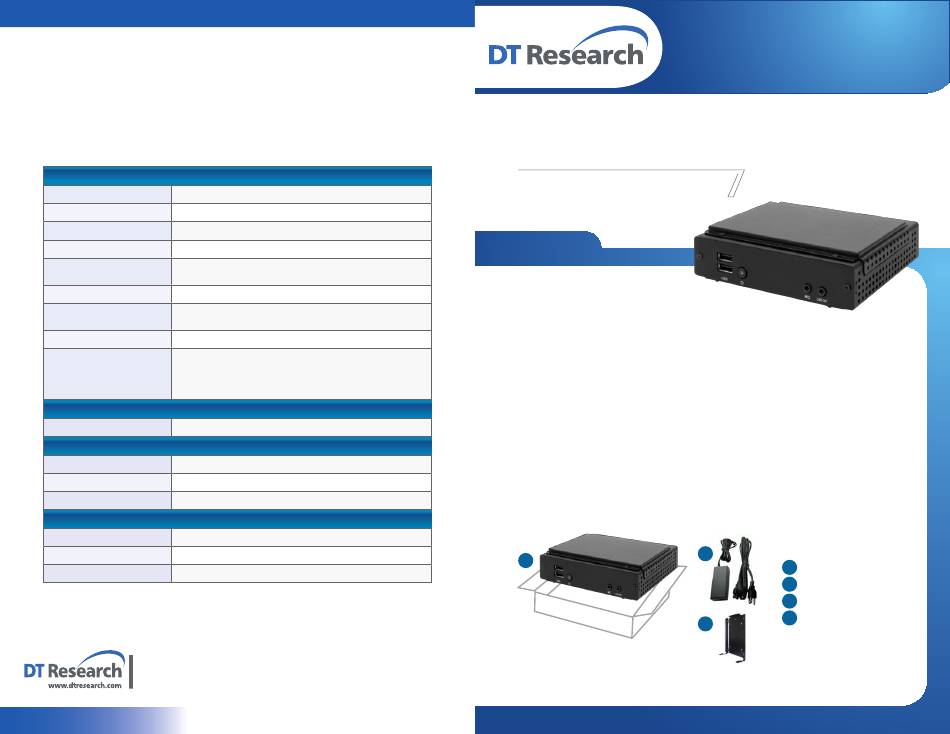

Package Contents
2
1
DT122
2
AC/DC Power Adapter
3
VESA Bracket
4
Basic Operation Guide
3
