Audison B-CON User Manual

ACCESSORIES
MANUALE D'USO / USER'S MANUAL
BT

Bluetooth

Note: use SDC PORT Cable or
ADC PORT Cable
connect to
devices with
ADC port
STEREO ANALOG OUT
Not Supplied
TOSLINK OPTICAL CABLE MAX 4.5 m / 177.16 In.
Not Supplied
STREAMING OFF
STEREO
ANALOG

OUTPUT

OPTICAL S/PDIF OUT
24 bit/192 kHz max
S/PDIF active

POWER SUPPLY

Voltage:
Idling current:
Remote IN voltage:
+ 12 Remote IN voltage:
USB Micro:
BLUETOOTH
Type:
Codec:
Profile:

INPUTS

Optical digital:

INPUT/ OUTPUT MANAGEMENT

Digital IN delay switch:
Power Connector:
ADC:
Mode Switch:
OUTPUT
Optical digital:
Analog:

SIZE

W x H x D mm / In.
Weight kg / lbs:
CARATTERISTICHE
L'Audison B-CON è l'unico ricevitore Bluetooth
da un player Hi-Res (Fioo, Sony Walkman...) e da dispositivi mobili Android/Apple di ultima generazione.
B-CON è compatibile con tutti i formati audio e raggiunge le massime prestazioni con lo streaming BT non compresso (max 96 kHz/24 bit, solo con dispositivi Android LDAC), sia riproducendo file locali che con le App che forniscono streaming Hi-Res (Tidal, Qobuz...).
Come da tradizione Audison, in fase di progetto è stata riservata particolare attenzione alla gestione del volume, aspetto fondamentale per la ricerca della massima qualità audio. Lo studio del team R&D Audison si è concentrato sull'utilizzo
audiophile della funzione "Absolute Volume". Nel B-CON questa gestisce il Volume Master del DSP * , evitando la perdita di risoluzione che si manifesta quando si agisce sul volume del dispositivo mobile (modalità: Absolute Volume Off),
garantendo la piena gamma dinamica.
In caso di chiamata vocale, il DSP commuta in automatico sull'ingresso Master del processore (associando il dispositivo mobile al B-CON e all'auto). Al termine della chiamata ritorna all'esecuzione del brano precedentemente messo in pausa,
gestendo il vivavoce dell'auto senza limitazioni.
Audison B-CON ha un ingresso ottico digitale "pass-through" (max 192 kHz/24 bit) che fornisce un secondo ingresso ausiliario al DSP attivo quando non è presente lo streaming BT.
L'uscita digitale (max 96 kHz/24 bit) e quella analogica (max 2 VRMS, S/N RATIO 100 dBA) permettono di collegare il B-CON a qualsiasi dispositivo audio.
* disponibile sulla nuova linea Forza o su bit One HD Virtuoso collegando la porta ADC.

PRODUCT FEATURES

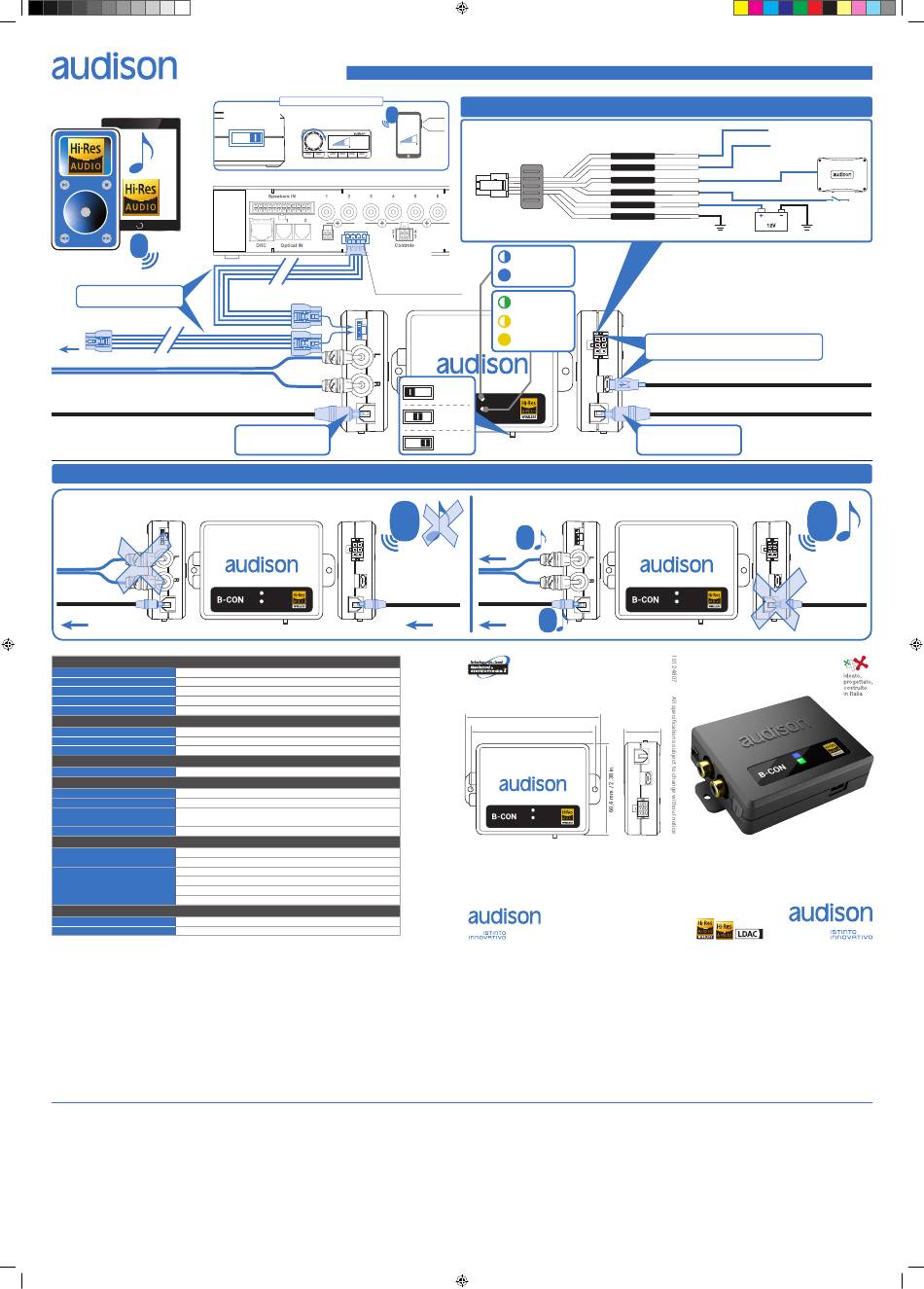

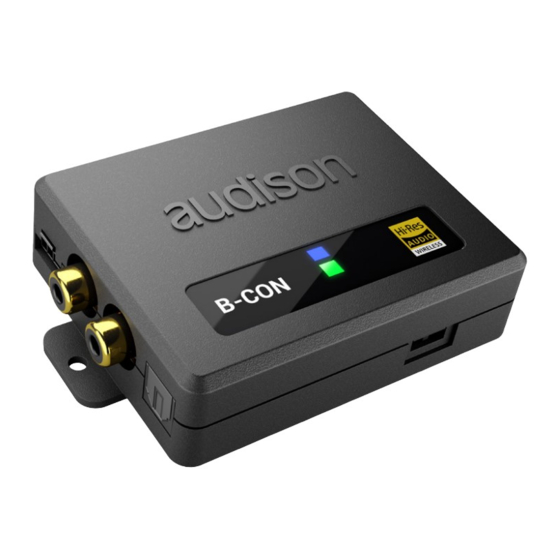

The Audison B-CON is the only Bluetooth 5.0 receiver designed for automotive use that has obtained the "Hi-Res audio wireless" certification from JAS (Japan Audio Society). B-CON is the ideal choice for streaming audio
®
from a Hi-Res player (Fioo, Sony Walkman ...) and from latest generation Android/Apple mobile devices.
B-CON is compatible with all audio formats and reaches maximum performance with uncompressed BT streaming (max 96 kHz/24 bit, only with Android LDAC devices), both playing local files and with Apps that provide Hi-Res streaming (Tidal, Qobuz. ..).
In keeping with Audison tradition, during the design phase particular attention was paid to volume management, a fundamental aspect for the search for the highest audio quality. The study by the Audison R&D team focused on the
audiophile use of the "Absolute Volume" function. In the B-CON this manages the Master Volume of the DSP * , avoiding the loss of resolution that occurs when operating on the volume of the mobile device (mode: Absolute Volume Off),
ensuring full dynamic range.
In the case of a voice call, the DSP automatically switches to the processor's Master input (by associating the mobile device with the B-CON and the car). At the end of the call it reverts back to playing the song previously paused, managing
the car speakerphone without limitations.
Audison B-CON has a "pass-through" digital optical input (max 192 kHz/24 bit) which provides a second auxiliary input to the active DSP when there is no BT streaming.
The digital output (max 96 kHz/24 bit) and the analog output (max 2 VRMS, S/N RATIO 100 dBA) allow the user to connect the B-CON to any audio device.
* available on the new Forza line or on the bit One HD Virtuoso by connecting the ADC port
Esec_MANUALE B-CON_2022 A3_rev1e.indd 1 Esec_MANUALE B-CON_2022 A3_rev1e.indd 1
B-CON
Audison devices Volume Control
*
Absolute
volume ON
VOL - VOL +
Bluetooth
=
DRC
Bit One HD Virtuoso rev.03
DRCC
SDC
connect to devices
with
Note: Connect only for Optical 2
auto switch, and Absolute
Volume control.
OPTICAL S/PDIF OUT
24 bit/192 kHz max
Pass-through S/PDIF Input
6 ÷ 24 VDC
70 mA @ 12 V
3 ÷ 12 VDC (0.5 mA)
6 ÷ 12 VDC (70 mA)
5 V (500 mA)
Bluetooth 5.0 + EDR
Ldac, AAC, SBC
Bluetooth A2DP 1.3, AVRCP 1.6
S/PDIF Optical (Max 24 bit/192 kHz)
1 sec.
AUX SEL wire, MASTER ENABLE wire
Serial RS232, to manage other Audison devices
that support this standard
Absolute volume ON/OFF, upgrade mode
From Optical input: 24 bit/192 kHz
From Streaming Bluetooth: 24 bit/96 kHz max.
Bandwidth (MAX) 20 ÷ 48k Hz
Output Level 2 VRMS
Distortion - THD @1 kHz, 1 VRMS 0.003%
S/N RATIO (A weighted) 100 dBA
90 x 60,4 x 23 / 3.54 x 2.38 x 0.91
0,054 / 0.119
5.0 progettato per l'utilizzo automotive che ha ottenuto la certificazione "Hi-Res audio wireless" dall'ente JAS (Japan Audio Society). B-CON è la scelta ideale per trasmettere lo streaming audio
®
POWER SUPPLY / TURN ON
BT
VOL +
VOL -
Smartphone
TURN ON BY REMOTE WIRE
Bluetooth
Disconnected
SDC port
Bluetooth
Connected
Streaming
48 kHz
Streaming
LDAC 48 kHz
Streaming
LDAC 96 kHz
Absolute
volume OFF
Upgrade
MODE ON
*
Absolute
volume ON

OUTPUTS PRIORITY

BT
STEREO
BT
ANALOG
OUTPUT
Bluetooth
Bluetooth
OPTICAL S/PDIF INPUT OPTICAL S/PDIF OUT
24 bit/192 kHz max 24 bit/192 kHz max
S/PDIF active S/PDIF active
BT
Bluetooth
90 mm / 3.54 in.
83 mm / 3.26 in.
audison.com
brown
MASTER EN
pink
AUX SEL
blue
REMOTE IN
orange
+12V REM
red
+BATT 12V
black
GND
GND
Note: use POWER SUPPLY/TURN ON Connection or
5 VOLT EXTERNAL POWER SUPPLY Connection
TO 5 VOLT EXTERNAL POWER SUPPLY
TOSLINK OPTICAL CABLE MAX 4.5 m / 177.16 In.
OPTICAL S/PDIF INPUT
24 bit/192 kHz max
STREAMING ON
23 mm / 0.91 in.
B-CON
Hi-Res Bluetooth receiver
PART OF ELETTROMEDIA
62018 Potenza Picena (MC) Italy
T +39 0733 870 870 - F +39 0733 870 880
www.elettromedia.it
Hi-Res Bluetooth receiver
audison.com
Active +12V AUDIO STREAMING OFF
Active +12V AUDIO STREAMING ON
External Device
Remote OUT
+ 12V
BATTERY GND
Only for bench use
Not Supplied
BT
Bluetooth
OPTICAL S/PDIF INPUT
24 bit/192 kHz max
S/PDIF active
rev. 1e
