21 Hubert Mathew Road, Illiondale, 1609
Tel +27 11 452 4737
www.mami.co.za

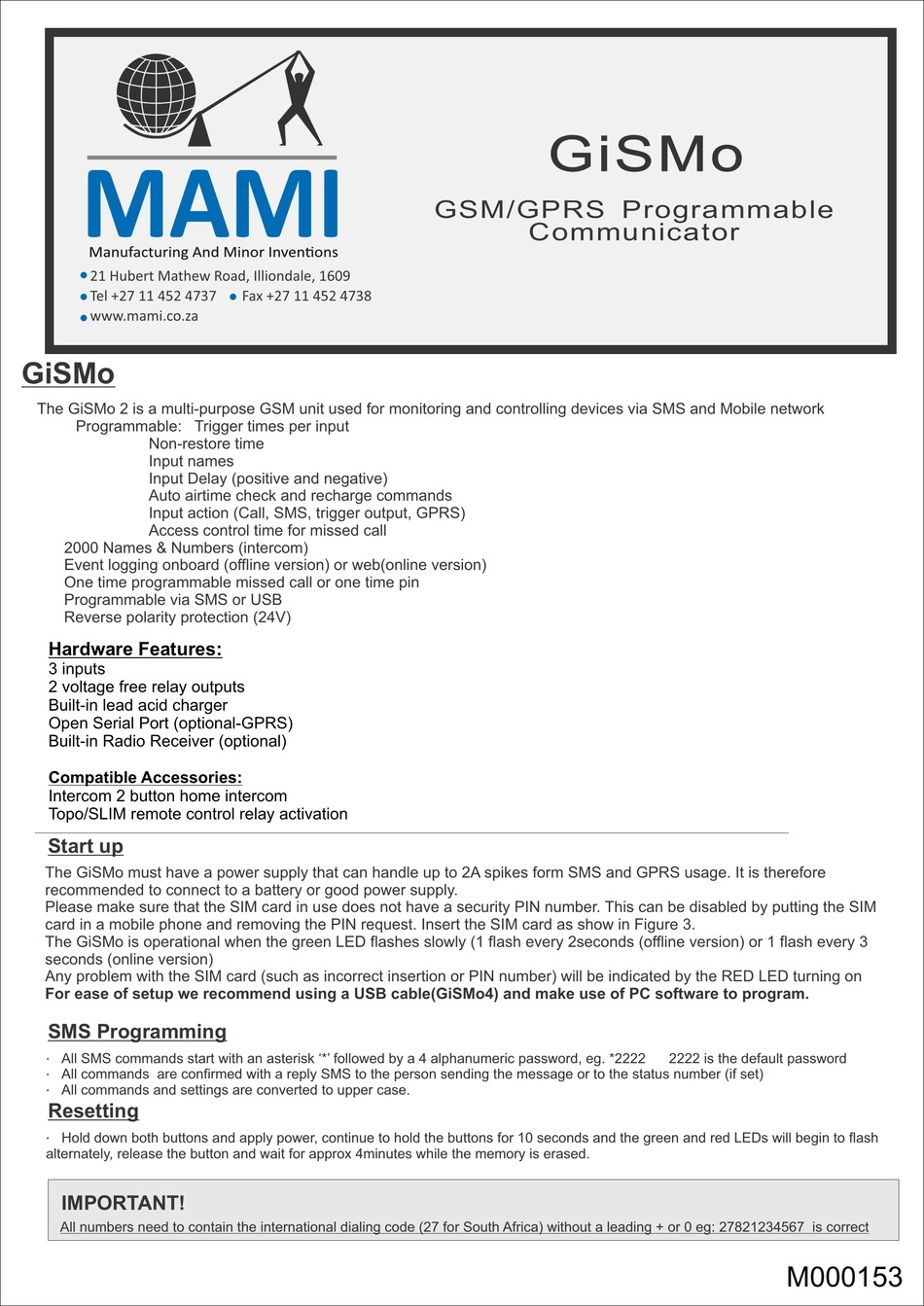

GiSMo
The GiSMo 2 is a multi-purpose GSM unit used for monitoring and controlling devices via SMS and Mobile network
Programmable: Trigger times per input
Non-restore time
Input names
Input Delay (positive and negative)
Auto airtime check and recharge commands
Input action (Call, SMS, trigger output, GPRS)
Access control time for missed call
2000 Names & Numbers (intercom)
Event logging onboard (offline version) or web(online version)
One time programmable missed call or one time pin
Programmable via SMS or USB
Reverse polarity protection (24V)
Hardware Features:
3 inputs
2 voltage free relay outputs
Built-in lead acid charger
Open Serial Port (optional-GPRS)
Built-in Radio Receiver (optional)
Compatible Accessories:
Intercom 2 button home intercom
Topo/SLIM remote control relay activation
Start up
The GiSMo must have a power supply that can handle up to 2A spikes form SMS and GPRS usage. It is therefore
recommended to connect to a battery or good power supply.
Please make sure that the SIM card in use does not have a security PIN number. This can be disabled by putting the SIM
card in a mobile phone and removing the PIN request. Insert the SIM card as show in Figure 3.
The GiSMo is operational when the green LED flashes slowly (1 flash every 2seconds (offline version) or 1 flash every 3
seconds (online version)
Any problem with the SIM card (such as incorrect insertion or PIN number) will be indicated by the RED LED turning on
For ease of setup we recommend using a USB cable(GiSMo4) and make use of PC software to program.
SMS Programming
All SMS commands start with an asterisk '*' followed by a 4 alphanumeric password, eg. *2222
ž
All commands are confirmed with a reply SMS to the person sending the message or to the status number (if set)
ž
All commands and settings are converted to upper case.
ž
Resetting
Hold down both buttons and apply power, continue to hold the buttons for 10 seconds and the green and red LEDs will begin to flash
ž
alternately, release the button and wait for approx 4minutes while the memory is erased.
IMPORTANT!
All numbers need to contain the international dialing code (27 for South Africa) without a leading + or 0 eg: 27821234567 is correct
Fax +27 11 452 4738
GiSMo
GSM/GPRS Programmable
Communicator
2222 is the default password
M000153
Advertisement
Table of Contents
Summary of Contents for Mami GiSMo
- Page 1 Topo/SLIM remote control relay activation Start up The GiSMo must have a power supply that can handle up to 2A spikes form SMS and GPRS usage. It is therefore recommended to connect to a battery or good power supply. Please make sure that the SIM card in use does not have a security PIN number. This can be disabled by putting the SIM card in a mobile phone and removing the PIN request.
- Page 2 GiSMo 2 Connections Sim Card GSM Antenna Gate Motor Relay1 Relay1 Input Power Supply Relay2 Relay2 Sim Card GSM Antenna Relay1 Relay1 Relay2 Input Relay2 1A Charge Current Solar or 12V Lead 24V Input Acid Battery SMS PROGRAMMING INPUT MONITORING...
- Page 3 TRIGGER OUTPUT ON MISSED CALL ADDING MISSED CALL NUMBERS Automatic Way: To add number for a missed call it is also possible to hold down the two buttons until the ORANGE LED begins to flash. This means the units is in programming mode. Any phone calling the unit within the next hour will automatically be added to the system.
- Page 4 ADVANCED NUMBER MANAGEMENT SETTINGS INPUT MONITORING NUMBERS *2222 ADDI=XXXXXXXXXXX,A,B,PPMMDD,TT,DUR SMS Format: X = Telephone number A = 0 (always unit 0) B = INPUT Memory location (1-9) PP = INPUT NUMBER HEX NUMBER REPRESENTING THE INPUT (eg 06 = 0110 = INPUT 2 and INPUT 3, 0F for all) MM = MONITOR TYPE (LOW,HIGH,TRIGGER,NON-RESTORE) HEX NUMBER (0F for all) DD = ACTION (SMS,DIAL,RELAY1 ON,RELAY1 OFF,RELAY2 ON,RELAY2 OFF) TIME= ACCESS TIME (HOURS 0-23) (Blank for none)
