Summary of Contents for Haier HWF06XC3

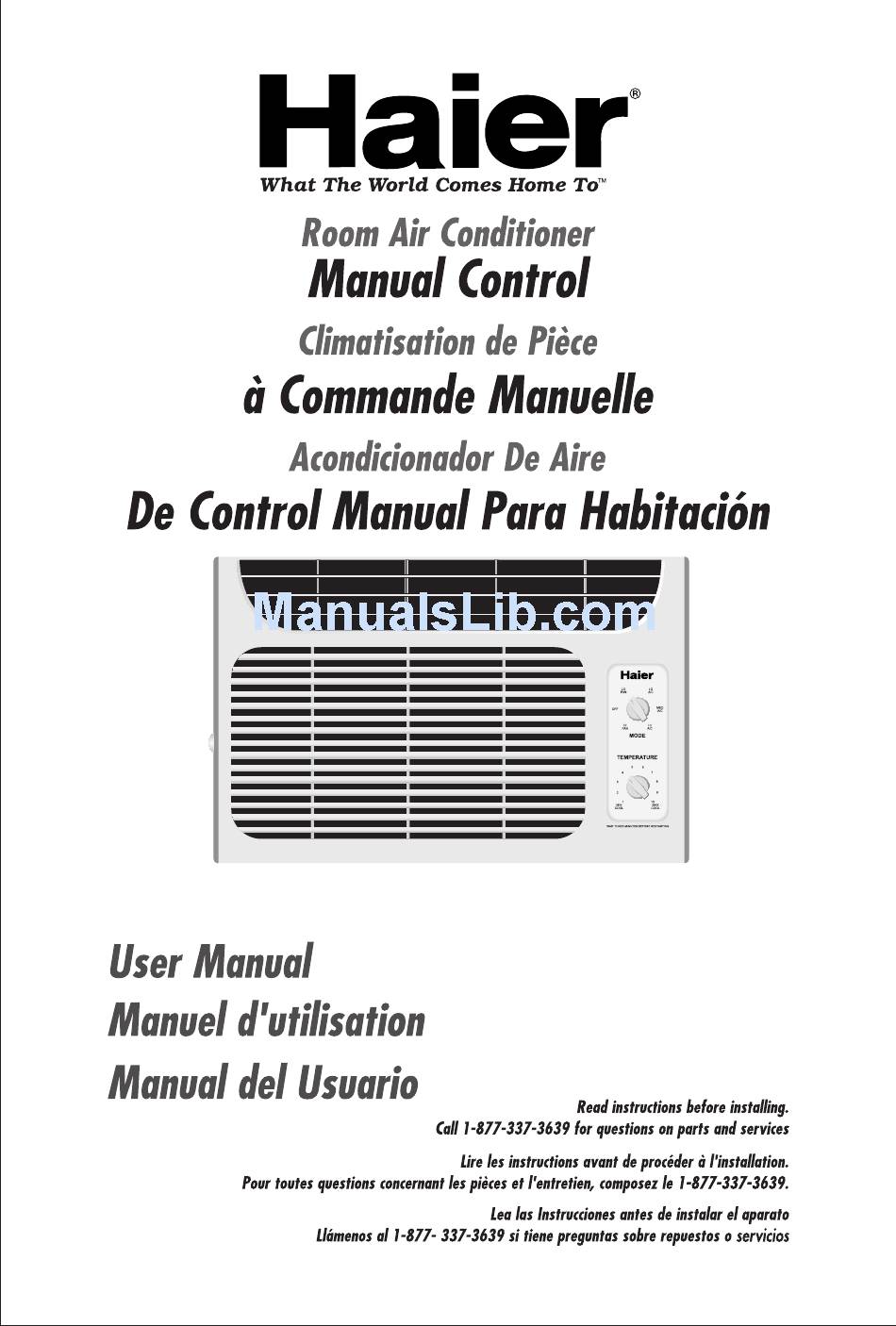

- Page 1 HWF06XC3 0010547047...
- Page 4 11-13 14-15...
- Page 7 2-way airflow easy access control filters panel 2. MODE Set Knob...
- Page 9 Also when you shut off the air conditioner wait for 3 minutes beforeturning it on again.
- Page 11 wood screws 31/32" top rail window seal gasket short screws 13/32"...
- Page 12 ASSEMBLE CURTAINS/TOP RAIL Install top rail with 3 short screws13/32". Insert the side curtains into the top and bottom rails of the air conditioner. Fasten the curtains to the unit with 8 short screws 13/32". HWF06XC3...
- Page 13 1. This unit is designed for installation in standard double hung windows with actual opening widths of 22 to 36 . The upper and lower sash must open sufficiently to allow a clear vertical opening of 14 from the bottom of the sash to the window stool. 2.
-
Page 14: Install The Air Conditioner In The Window
INSTALL THE AIR CONDITIONER IN THE WINDOW Carefully lift the air conditioner and slide it into the open window. Make sure the bottom guide of the air conditioner drops into the notches of the basepan angle. While steadying the air conditioner ,carefully bring the window sash down behind the upper guide of the air conditioner. - Page 15 DO NOT use your air conditioner without the air filter in place. To clean the front panels or the cabinet DO NOT use harsh chemicals, abrasives, ammonia, chlorine, bleach, concentrated detergents, solvents or metal scouring pads.
- Page 17 (see page 7) (see page 13)
