Summary of Contents for Stim Choice 4000

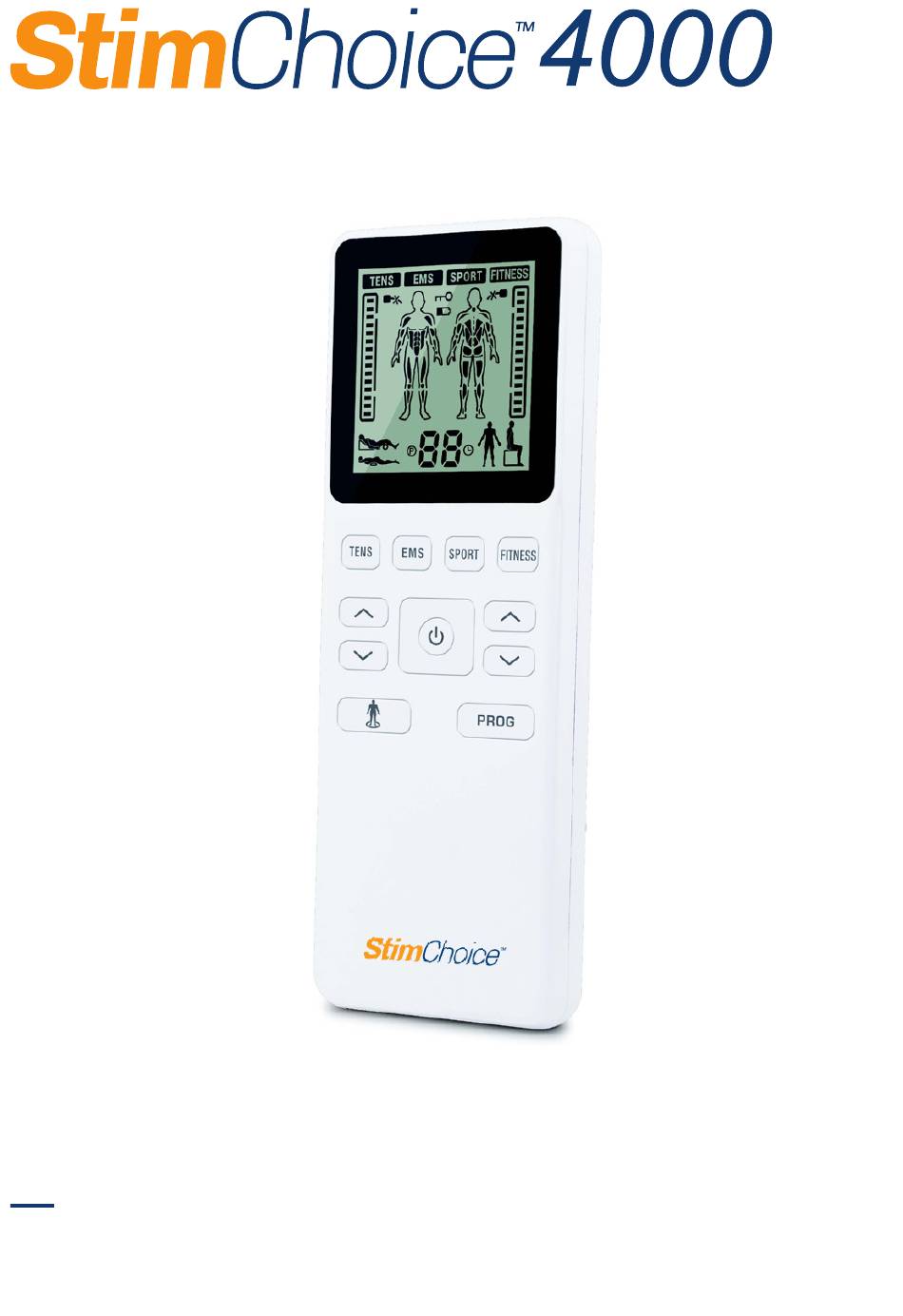

- Page 1 TENS/EMS INSTRUCTION MANUAL Model: E400-6R For questions or concerns about your device, please contact Technical Support at 800-871-7858 before returning your device or leaving a review.
- Page 2 INSTRUCTION MANUAL This manual is valid for the StimChoice 4000 TENS/EMS. This instruction manual is published by Compass Health Brands. Compass Health Brands reserves the right to improve and amend this manual at any time without prior notice. Amendments may however be published in new editions of this manual. 2058.20.01.B ©2020 Compass Health Brands Corp.
-
Page 3: Table Of Contents
INSTRUCTION MANUAL TABLE OF CONTENTS INTRODUCTION ..................3 INDICATION FOR USE................6 IMPORTANT SAFETY PRECAUTIONS AND WARNINGS ......6 PACKAGE CONTENTS ................13 KNOW YOUR DEVICE ................14 SPECIFICATIONS ...................16 PROGRAM PARAMETERS ..............17 HOW TO CONTROL AND REDUCE YOUR PAIN ........18 INSTRUCTIONS FOR USE ..............19 START THERAPY ...................20 ELECTRODE PLACEMENT GUIDE ............23 TROUBLESHOOTING ................28... -
Page 4: Introduction
INSTRUCTION MANUAL INTRODUCTION Thank you for purchasing the StimChoice 4000 for your pain relief and muscle training solution. In order to use the device safely, read the complete manual carefully before using for the first time. Keep this instruction manual in a convenient place, or store with the device for future reference. - Page 5 INSTRUCTION MANUAL HOW TENS WORKS There is nothing “magic” about Transcutaneous Electrical Nerve Stimulation (TENS). TENS is intended to help relieve pain. The TENS unit sends comfortable impulses through the skin to stimulate the nerve (or nerves) in the treatment area. In many cases, this stimulation will greatly reduce or eliminate the pain sensation the patient feels.
- Page 6 INSTRUCTION MANUAL HOW SPORT MODE WORKS FOR MUSCLE STIMULATION (EMS SUPPLEMENT) Neglected for many years, muscle preparation has today become indispensable for the competitive athlete. In this respect, muscular electrostimulation is a complementary training technique widely used by an increasing number of athletes aiming to improve their level of performance. Increasing the maximum strength of a muscle, developing muscular volume, increasing the explosive strength of muscles or improving the capacity of muscle fibers to sustain effort over long periods of time are objectives that...
-
Page 7: Indication For Use
INSTRUCTION MANUAL BENEFITS OF ELECTROSTIMULATION The StimChoice 4000 is designed to be used for temporary relief of pain associated with sore and aching muscles in the shoulder, waist, back, neck, upper extremities (arm) and lower extremities (leg) due to strain from exercise or normal daily activities. It is to be used to stimulate healthy muscles in order to improve and facilitate muscle performance. -
Page 8: Important Safety Precautions And Warnings
INSTRUCTION MANUAL IMPORTANT SAFETY PRECAUTIONS AND WARNINGS It is important that you read all the warning and precautions included in this manual because they are intended to keep you safe, prevent injury and avoid a situation that could result in damage to the device. SAFETY SYMBOLS USED IN THIS MANUAL Indicates a potentially hazardous situation which, if not DANGER... - Page 9 INSTRUCTION MANUAL DANGER This stimulator must NOT be used in combination with the following medical devices: • Internally transplanted electronic medical devices, such as a pacemaker. • Electronic life support equipment, such as respirators. • Electronic medical devices attached to the body, such as electrocardiographs.
- Page 10 INSTRUCTION MANUAL WARNING (CONTINUED) DO NOT USE THIS DEVICE DURING THESE ACTIVITIES • When in the bath or shower • While sleeping • While driving, operating machinery, or during any activity in which electrical stimulation can put you at risk for injury. PAIN MANAGEMENT WARNINGS •...
- Page 11 INSTRUCTION MANUAL CAUTION WARNINGS AND PRECAUTIONS REGARDING THE ELECTRODES • DO NOT bend or fold because the pad may not function properly. Place the electrodes onto the plastic film and then store into the sealed package when not in use. •...
- Page 12 INSTRUCTION MANUAL CAUTION (CONTINUED) CAUTION WHILE USING THE STIMULATOR • If the stimulator is not functioning properly or you feel discomfort, immediately stop using the device. If any type of shock or burn should occur, stop using immediately and consider seeking medical attention (if necessary). •...
- Page 13 INSTRUCTION MANUAL GENERAL PRECAUTIONS • The long-term effects of electrical stimulation are unknown. • Apply stimulation to only normal, intact, clean, dry, and healthy skin. • TENS is NOT effective in treating the original source or cause of the pain, including headache.
-
Page 14: Package Contents
INSTRUCTION MANUAL PACKAGE CONTENTS Electrodes 3 — AAA size batteries (2 packs of 2” x 2”, 4/pk) Quick Start Guide 4 — Lead Wire Instruction Manual Storage Bag StimChoice 4000... -
Page 15: Know Your Device

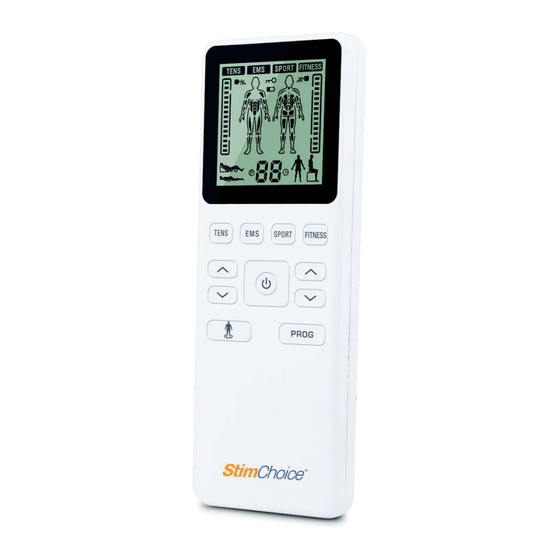

INSTRUCTION MANUAL KNOW YOUR DEVICE FRONT AND REAR PANEL 1. Power On/Off Button 2. TENS/EMS/SPORT/FITNESS Treatment Modes Buttons 3. Body Part Button 4. Treatment Program Button 5. Increase/Decrease Output Ch A1 & A2 6. Increase/Decrease Output Ch B1 & B2 7. - Page 16 INSTRUCTION MANUAL LCD DISPLAY 1. TREATMENT MODES 2. BROKEN CIRCUIT Connection between device and electrode is broken. 3. BATTERY STATUS This symbol is shown when the batteries are almost depleted. 4. KEY LOCK Key lock is on. 5. INTENSITY LEVEL SCALE Maximum Intensity is 30 levels.
-
Page 17: Specifications
INSTRUCTION MANUAL SPECIFICATIONS Channel Four Power Supply DC4.5V Three AAA Batteries Intensity Adjustable, 0 – 60 mA at (1,000 ohm load) 2mA/step Voltage 0 to 60V (Load: 1,000 ohm) Pulse Rate 1 to 100 Hz Pulse Width 80 to 380 microseconds Size 6.5 in (L) x 2.5 in (W) x 0.6 in (H) Weight... -
Page 18: Program Parameters
INSTRUCTION MANUAL PROGRAM PARAMETERS TENS PROGRAM NAME Conventional TENS-High frequency Conventional TENS-Low frequency Hans stimulation Burst stimulation Pulse modulation Intermittent stimulation 1 Intermittent stimulation 2 Stimulation with active rest SPORT Endurance Resistance Strength Explosive strength Hypertrophy FITNESS Toning Firming Shaping Aerobic Muscle building... -
Page 19: How To Control And Reduce Your Pain
INSTRUCTION MANUAL HOW TO CONTROL AND REDUCE YOUR PAIN WHEN SHOULD THE DEVICE BE USED? Use as soon as your pain begins. Start with one session. If you address your pain early, it may prevent the pain from becoming worse, or even chronic. It is better to get pain under control before it increases and may limit your daily activities. -
Page 20: Instructions For Use
INSTRUCTION MANUAL INSTRUCTIONS FOR USE BATTERY 1. Remove the battery cover on the back of the device as shown as shown in Figure 1. 2. Insert (3) AAA batteries. Make sure the positive + and negative – signs correspond with the markings in the device when inserting batteries. -
Page 21: Start Therapy
INSTRUCTION MANUAL START THERAPY NOTE: Before proceeding to this step, be sure the device is completely turned OFF. STEP 1 Attach Electrodes to the Lead Wire Each wire has two leads with pin-inserted connectors. Insert the lead wire connector into electrodes connector. Make sure no bare metal of the pins are exposed. - Page 22 INSTRUCTION MANUAL STEP 4 Turn on the Device Press to turn the device on. The device will start showing all icons for 1 second to ensure that all options are working properly. STEP 5 Selecting the Treatment Mode Category To choose a treatment mode, press one of the below buttons on the device.
- Page 23 INSTRUCTION MANUAL STEP 7 Starting Treatment Press on the left of the device to increase A1 & A2 together until you reach a comfortable stimulation . If using B1 & B2, do the same but on the right side of the device.
-
Page 24: Electrode Placement Guide
INSTRUCTION MANUAL ELECTRODE PLACEMENT GUIDE Please note that the electrode placement guide are only SUGGESTED electrode placements to help guide you in achieving successful therapy. The main points to remember when placing your electrodes are: • Read all cautions and warnings regarding electrode placement in the front of your StimChoice 4000 user manual. - Page 25 INSTRUCTION MANUAL WRIST / HAND Attach one pair of electrodes on the hand where you feel pain. ELBOW Attach one pair of electrodes on either side of the joint with the pain. CAUTION: DO NOT place electrodes on the bony premises and ensure electrodes are not lifting in any area.
- Page 26 INSTRUCTION MANUAL ELECTRODE PLACEMENT GUIDE (CONT.) SHOULDER Place electrodes in any of the positions shown in the picture to the left to improve shoulder muscle performance. UPPER ARM Place electrodes on either of the positions shown to the left to assist with increased strength. LOWER ARM Place electrodes over the forearm as shown in the picture to the left to improve healthy muscles.
- Page 27 INSTRUCTION MANUAL Place electrodes in any of the positions shown to the left to assist with hip weakness. BACK Place electrodes in an of the positions shown to the left to assist with increased muscle strength. LOWER LEG Place electrodes in any of the suggested positions shown to the left to assist in improving muscle fibers.
- Page 28 INSTRUCTION MANUAL ELECTRODE PLACEMENT GUIDE (CONT.) SPORT/FITNESS SHOULDER Cervical Muscles / Deltoids / Trapezius BACK Upper / Mid / Lower Back Abdominal Muscles Biceps / Triceps / Hand Flexors / Hand Extensors Quadriceps / Hamstrings / Calf Muscles Buttocks CAUTION DO NOT treat both thighs, legs, calves, shoulders, arms, hands/wrists at the same time.
-
Page 29: Troubleshooting
INSTRUCTION MANUAL TROUBLESHOOTING PROBLEM POSSIBLE CAUSES POSSIBLE SOLUTION The unit Batteries depleted. Replace batteries. cannot power Batteries installed Insert batteries observing polarity. incorrectly. Stimulation Electrodes are dried Replace with new electrodes. weak or out or dirty. cannot feel any Electrodes do not stick stimulation to skin well. - Page 30 INSTRUCTION MANUAL PROBLEM POSSIBLE CAUSES POSSIBLE SOLUTION Intermittent Lead Wire. Verify connection is secure. Insert wire Output firmly. Turn down the intensity. Rotate lead wire in socket 90°. If still intermittent, replace lead wire. If still intermittent after replacing lead wire, a component may have failed.
-
Page 31: Cleaning And Storage
INSTRUCTION MANUAL CLEANING AND STORAGE KEEPING ELECTRODES CLEAN Ensure the device is completely turned off when removing the electrodes from the treatment area. Disconnect the electrodes from each lead wire and place on protective liner supplied with the electrodes. If electrodes are difficult to attach to the skin or the protective liner, they may still be have more uses left prior to replacing. - Page 32 INSTRUCTION MANUAL STORING DEVICE, ELECTRODES AND LEAD WIRES After electrodes have been removed from treatment site and disconnected from lead wires, place electrodes on the plastic liner and store in a resealable package. Wrap lead wires and keep in the storage bag. If device is not being used for long periods of time, remove batteries from device before storing.
-
Page 33: Glossary Of Symbols
INSTRUCTION MANUAL GLOSSARY OF SYMBOLS Electrical devices are recyclable material and should not be disposed of with household waste after their useful life. Help us protect the environment and save resources and by taking this device to the appropriate collection point. Please contact the organization which is responsible for waste disposal in your area if you have any questions. -
Page 34: Emc Tables
INSTRUCTION MANUAL ELECTROMAGNETIC COMPATIBILITY (EMC) TABLES Information for accompanying documents in the scope of IEC60601-1-2 IMPORTANT INFORMATION REGARDING ELECTROMAGNETIC COMPATIBILITY (EMC) • Use of accessories other than those specified or provided by the manufacturer of this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in improper operation. - Page 35 INSTRUCTION MANUAL GUIDANCE AND MANUFACTURER’S DECLARATION — ELECTROMAGNETIC EMISSIONS The device is intended for use in the electromagnetic environment specified below. The customer or the user of device should assure that it is used in such an environment. ELECTROMAGNETIC ENVIRONMENT— EMISSIONS TEST COMPLIANCE GUIDANCE...
- Page 36 INSTRUCTION MANUAL GUIDANCE AND MANUFACTURER’S DECLARATION — ELECTROMAGNETIC IMMUNITY (CONTINUED) The device is intended for use in the electromagnetic environment specified below. The customer or the user of device should assure that it is used in such an environment. IMMUNITY EC 60601 COMPLIANCE ELECTROMAGNETIC...
- Page 37 INSTRUCTION MANUAL GUIDANCE AND MANUFACTURER’S DECLARATION — ELECTROMAGNETIC IMMUNITY (CONTINUED) The device is intended for use in the electromagnetic environment specified below. The customer or the user of device should assure that it is used in such an environment. IMMUNITY EC 60601 COMPLIANCE ELECTROMAGNETIC...
- Page 38 INSTRUCTION MANUAL GUIDANCE AND MANUFACTURER’S DECLARATION — ELECTROMAGNETIC IMMUNITY (CONTINUED) NOTE 1: At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
- Page 39 INSTRUCTION MANUAL RECOMMENDED SEPARATION DISTANCES BETWEEN PORTABLE AND MOBILE RF COMMUNICATIONS EQUIPMENT AND DEVICE The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and device, as recommended below, according to the maximum output power of the communications equipment.
-
Page 40: Warranty
INSTRUCTION MANUAL WARRANTY All StimChoice 4000 models carry a warranty of one year from the date of delivery. The warranty applies to the stimulator only and covers both parts and labor relating thereto. The warranty does not apply to damage resulting from failure to follow the operating instructions, accidents, abuse, alteration or disassembly by unauthorized personnel. - Page 41 THIS PAGE LEFT BLANK INTENTIONALLY...
- Page 42 THIS PAGE LEFT BLANK INTENTIONALLY...
- Page 43 THIS PAGE LEFT BLANK INTENTIONALLY...
- Page 44 Manufactured for: Compass Health Brands 6753 Engle Rd Middleburg Heights, OH 44130 www.compasshealthbrands.com 1.800.871.7858 2058.20.01.B ©2020 Compass Health Brands Corp.
