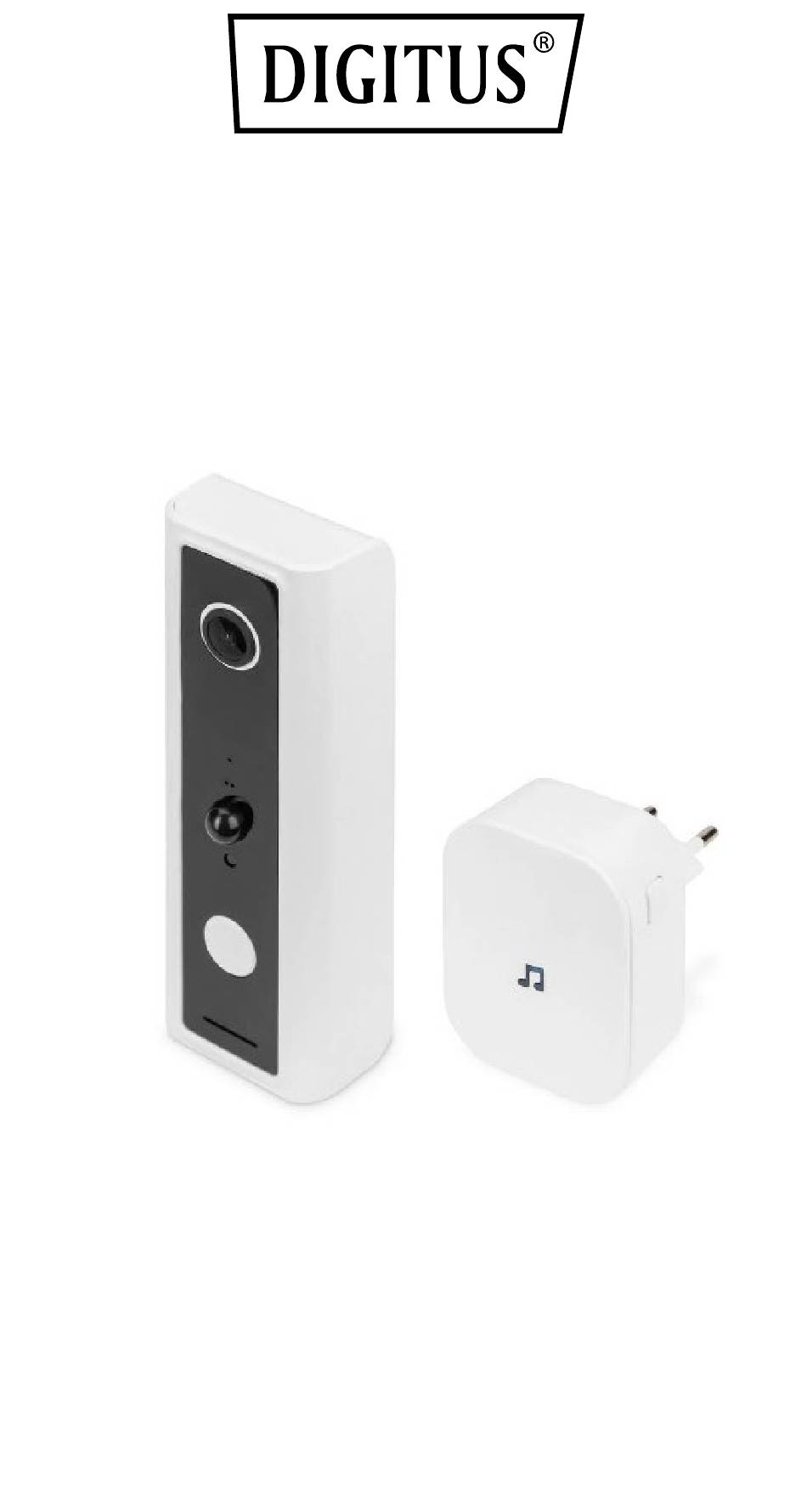

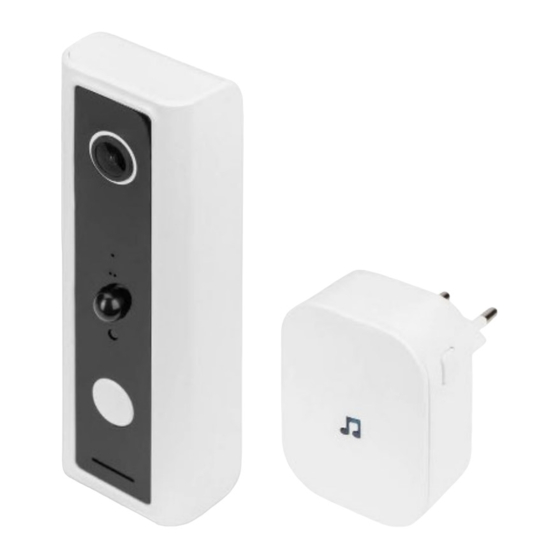

- Page 1 Smart Full HD Doorbell Camera With PIR Motion Sensor, Battery Operation + Voice Control Quick Installation Guide DN-18650 Before using the product, please read the Quick Guide carefully and keep it well. This is instruction manual is for reference only.
- Page 2 1. Introduction The weatherproof doorbell camera from DIGITUS® can be installed easily anywhere in your WLAN network and does not need an external power supply thanks to battery operation. The integrated PIR sensor reports movements in front of the camera directly on your smartphone in the form of push notifications.
-
Page 3: Main Features
2. Main Features • Full HD video resolution 1080p with wide angle of 120° • Supports two-way audio transmission • Night vision up to 10 m • Motion detection using PIR sensor • Push notification via app • Wireless bell with more than 60 different ringtones, expandable •... -
Page 4: Technical Data
1 x Smart Full HD Doorbell Camera With PIR Motion Sensor, Battery Operation + Voice Control 1 x Wireless bell 1 x Mounting material 1 x Quick installation guide 2 x Batteries (18650) IMPORTANT: If any part is missing or damaged, please contact your local dealer or reseller for assistance. - Page 5 • Integrated speaker and microphone, microphone sensitivity: -38 dB • Two-way audio communication / compression: AAC & G.726 • Connection type: Wireless LAN, 2.4 GHz • With microSD card slot • MicroSD card storage capacity: Up to 128 GB • Supports cloud storage •...
-
Page 6: Safety Instructions
• Sensitivity: -112 dBm • Volume: up to 100 dB • Dimensions: D 68 x W 51 x H 70 mm • Weight: 57 g • Color: White 5. Safety instructions Please read these instructions carefully before first use and retain for future reference. The safety precautions contained herein reduce the risk of fire, electric shock, and injury when followed correctly. - Page 7 • The device may only be connected to easily accessible sockets. In case of danger, pull out the mains plug. • Connect protection class I devices only to properly grounded power sources. • Operate the device only via a residual current circuit breaker (maximum 30 mA).
- Page 8 • We accept no liability for damage to property or personal injury caused by improper handling of the device or by failure to observe the hazard warnings. We accept no liability for consequential damage! In such cases, all warranty claims are void. 7.
-
Page 9: Instructions For Commissioning
All other trademarks not listed herein are the property of their respective owners. The trademarks or trade names mentioned in this manual are used to describe the operating steps and do not imply that they are freely available. In any case, they are the property of the respective rights holders. -
Page 10: Installation Steps
1 LENS 8 USB CHARGING PORT 2 MICROPHONE 9 TF MEMORY CARD SOCKET 3 INDICATOR LIGHT 10 RESET BUTTON 4 PIR 11 BATTERY BAY 5 LIGHTSENSITIVE 12 SWITCH MUSIC 6 DOORBELL BUTTOM 13 VOLUME ADJUSTMENT 7 HORN 10. Installation Steps 1. - Page 11 3. Connect the Tuya 4. If the object to be "Smart Life"-App installed is glass, clean according to the the part of the glass to instructions. be installed, and then remove the 3M glue to install it (No screws required). 5.
- Page 12 11. Setting up the Smart Life User Account In order to use your DIGITUS® Smart Full HD Outdoor Camera with LED Floodlight, WiFi & Voice Control, you need to register an user account. The setup and control can be done from your Smartphone/tablet, with Android system 4.4.2 and above, or iOS system 8 and...
- Page 13 You can also scan below QR code to download and install the app. Apple App Store® Google™ Play Start the App and you will enter the login page. For first time user, please create your account by “Register”.
- Page 14 Create new account with Smart Life Click on "Register". 1. Please enter your email or phone number, which would be your login account. 2. Accept the Service Agreement and Privacy Policy 3. Press “Continue”, you will receive a verification code by email or SMS. You will receive the email or SMS immediately.
- Page 15 4. Enter verification code 5. Create a password that you can remember. (Alphabet and numerical characters are supported).
- Page 16 6. Please enter a name, which you can choose freely (e.g. home). Optionally, you can now also determine the location and in which room your socket is used. 7. Connect the camera to your Wi-Fi...
- Page 17 2. Please tab the “+” icon or tab “Add Device” in the app and follow the instructions in the app to connect your DIGITUS® Smart Full HD Outdoor Camera with LED Floodlight, WiFi & Voice Control to your WiFi.
- Page 18 3. Please select “Security & Sensor” and afterwards “Smart Camera” to start.
- Page 19 4. Confirm that the LED is fast blinking. 5. Your WiFi´s SSID will be shown to connect with. Please make sure, your mobile device is connected to your 2.4GHz WiFi network. 5GHz WiFi networks will not be supported. Please key in the password for your router/AP at home.
- Page 20 6. A QR-code will be automatically generated in the app, as shown in the picture. Let the QR-code aim at the cameras lens, keep their distance at around 15cm – 30cm. When hear a “beep” sound and see the red light turn blue, click “I heard the beep”.
- Page 21 7. The DIGITUS® Smart Full HD Outdoor Camera with LED Floodlight, WiFi & Voice Control is now connecting to your WiFi network.
- Page 22 8. After the camera is successfully connected, it can be renamed. For the use with a voice controlled system like Amazon Alexa or Google Home, we recommend to give the camera an identifiable name, e.g. main entrance.
- Page 23 Once the camera is renamed, press “Save” and “Done” to submit the changes.
-
Page 24: Technical Description
9. You will be linked to the main menu. Now you can use your DIGITUS® Smart Full HD Outdoor Camera with LED Floodlight, WiFi & Voice Control. 12. Technical description Frequency range: 2412MHz-2472MHz (13/9 channels) Transmit power: <20 dBm EIRP Hardware Version: 1.0... - Page 25 13. General notes on radio operation During installation and operation, make sure that persons are at least 20 cm away from the device. The signal is transmitted via a non-exclusive transmission path. Disturbances and interferences cannot be excluded. General switching operations in the power supply system, electric motors or defective terminal equipment can cause interference.
