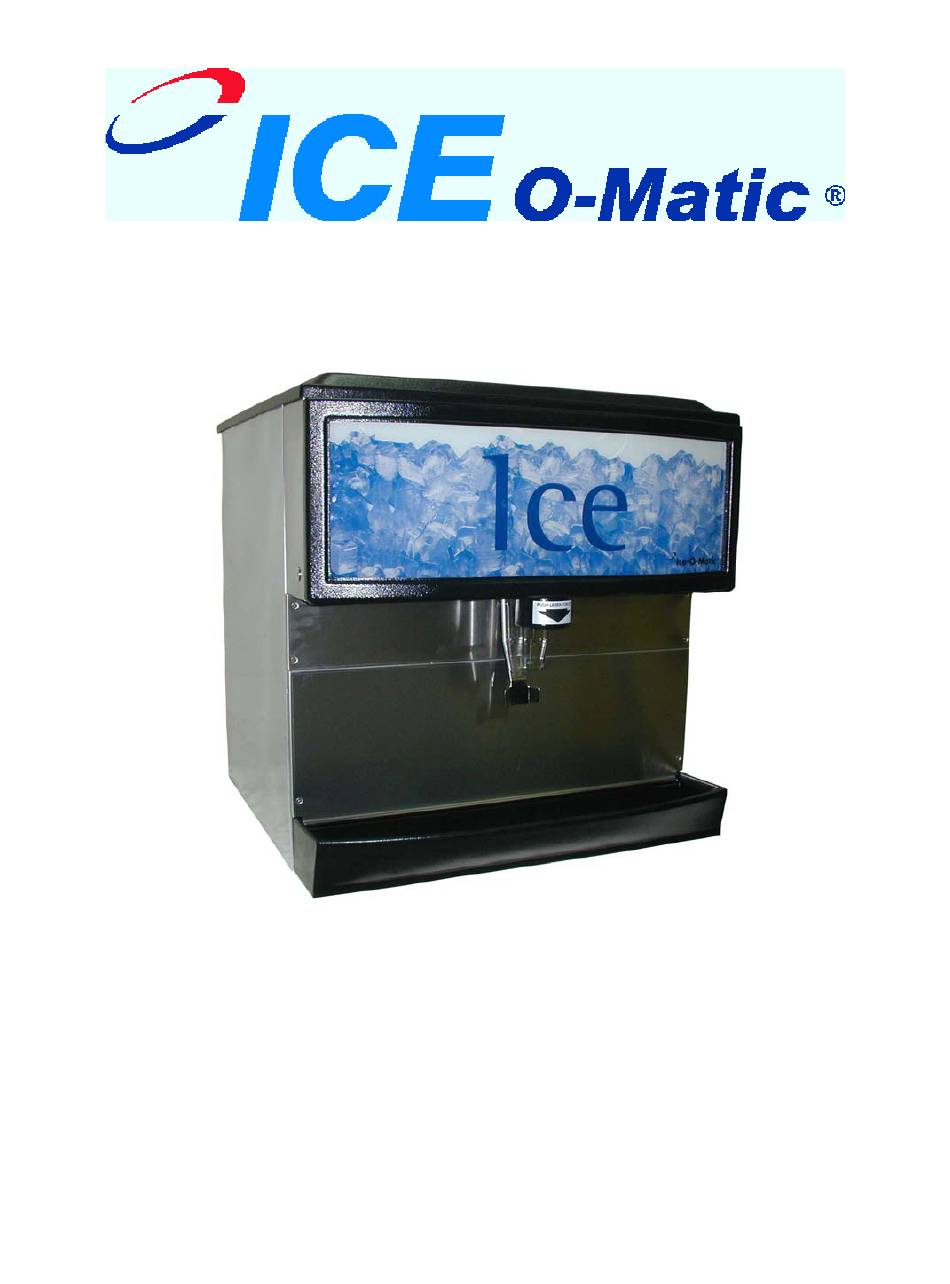

- Page 1 SERVICE PARTS MANUAL FOR MODEL IOD16022 AND IOD22030 COUNTER TOP DISPENSER Mile High Equipment 11100 East 45th Ave Denver, Colorado 80239 Print Date 03/03 Part Number 9081286-01...
-
Page 3: Table Of Contents
22 inch wide and 30 inch wide respectively Ice-O-Matic cubed ice machines as their source of ice. Ice from the cuber falls into the insulated bin where it is stored until needed. When the user pushes the dispense button, a rotating wheel scoops the ice up to the front of the bin where there is an outlet to the ice chute. - Page 4 IOD 16022 and 22030 Service Parts Cabinet IOD 16022 and 22030 Page 2...
-
Page 5: Cabinet
IOD 16022 and 22030 Service Parts Cabinet IOD 16022 and 22030 IOD16022 IOD22030 Item Number Description Part Number Part Number Black Lid 30064502 30064512 Side Panel Extension 30074312 30074312 Gearmotor Assembly 3012236901 3012236901 Drain Hose Leg Kit 2066110000 2066110000 Side Panel Extension... -
Page 6: Cabinet Front
IOD 16022 and 22030 Service Parts Cabinet Front IOD 16022 and 22030 Page 4... - Page 7 IOD 16022 and 22030 Service Parts Cabinet Front IOD 16022 and 22030 IOD16022 IOD22030 Item Number Description Part Number Part Number Cover, Merch. Black-Lever 30064206 30064226 Cover, Merch. Black-Push Button 30064218 30064238 Screws For Cover 30069901 30069901 Merch. Sign 3015075218...
- Page 8 IOD 16022 and 22030 Service Parts Control Box IOD 16022 and 22030 Page 6...
-
Page 9: Control Box
IOD 16022 and 22030 Service Parts Control Box IOD 16022 and 22030 IOD16022 IOD22030 Item Number Description Part Number Part Number Relay 3000480001 3000480001 Transformer 1193210500 1193210500 Starter Socket 2021610000 2021610000 Bulb Holder 3012238501 3012238501 Control Box Cover 30073510 30073530... - Page 10 IOD 16022 and 22030 Service Parts Ice Door and IOD 16022 and 22030 Solenoid Assembly Page 8...
-
Page 11: Ice Door And Solenoid Assembly
IOD 16022 and 22030 Service Parts Ice Door and IOD 16022 and 22030 Solenoid Assembly IOD16022 IOD22030 Item Number Description Part Number Part Number Ice Door 3A34801001 3A34801001 Cotter Pin (6 Req.) 1061400000 1061400000 Solenoid Link 3002308902 3002308902 Solenoid Link Bushings... -
Page 12: Wiring Diagram
IOD 16022 and 22030 Service Parts Wiring Diagram IOD 16022 and 22030 Page 10... -
Page 13: Wiring Schematic
IOD 16022 and 22030 Service Parts Wiring Schematic IOD 16022 and 22030 Page 11...
