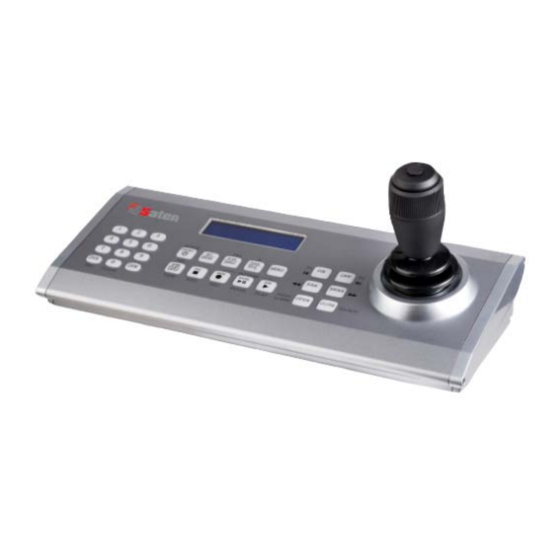

Saten ST-1004-KI User Manual

Ptz controller
Hide thumbs

Advertisement

Quick Links

Download this manual
PTZ Controller
ST-1004-KI User Manual
Rev 0 Date 28-10-2014

Advertisement

loading
Need help?

Need help?

Do you have a question about the ST-1004-KI and is the answer not in the manual?

Questions and answers

Summary of Contents for Saten ST-1004-KI

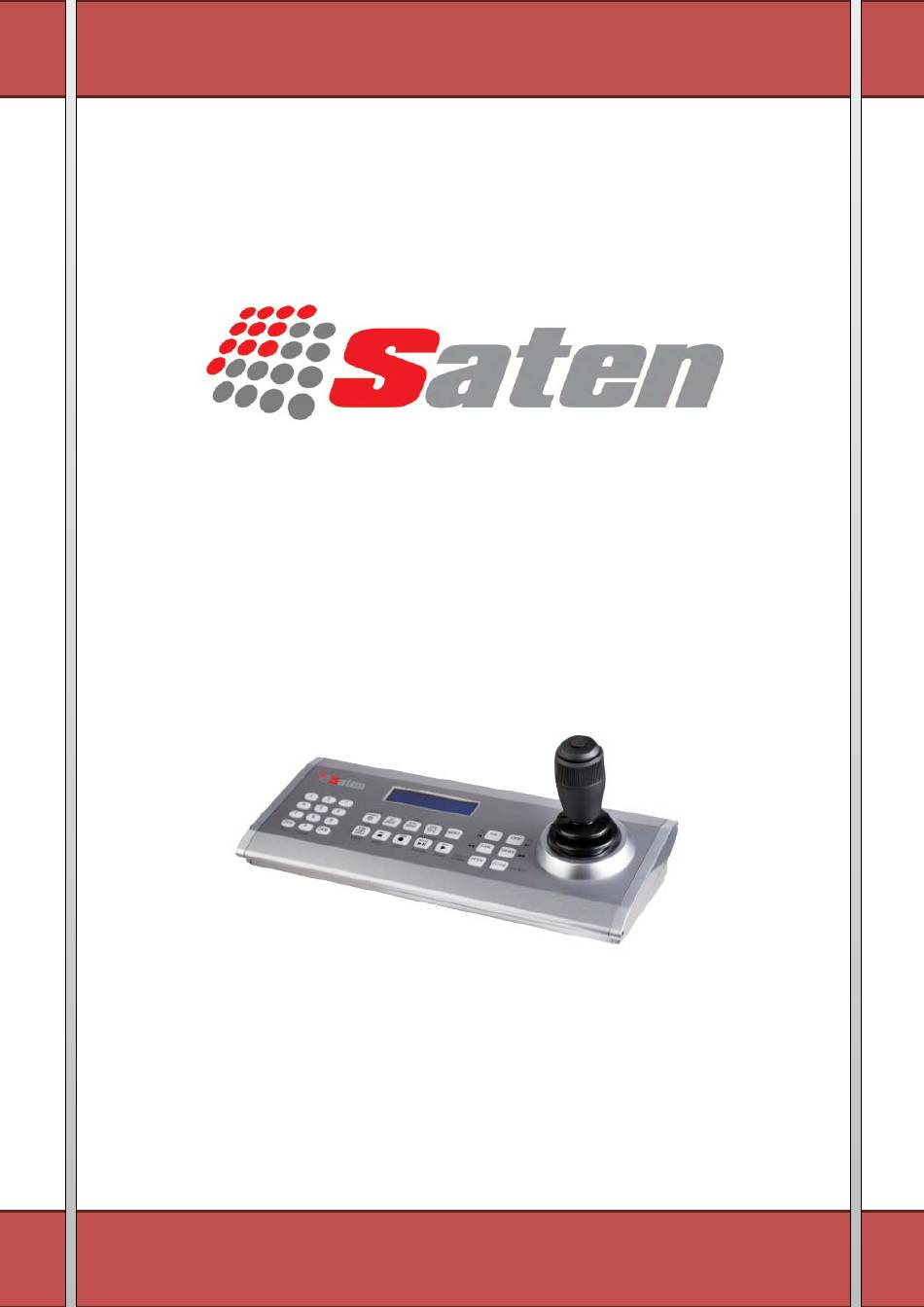

  • Page 1 PTZ Controller ST-1004-KI User Manual Rev 0 Date 28-10-2014...
  • Page 2 9-15V/1000ma. • Keep away from fire. • Avoid collision or friction with hard objects. UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL: +97143205447...

  • Page 3: Specification

    DVR (RS485+RS232) RS485： connect camera，same as RS422TX，2000M RS232： connect camera USB-D: USB2.0 connect PC, server，NVR etc. UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL: +97143205447 Post code: EC4A 1JQ...
  • Page 4 Zoom Control：Button ZOOM：0-14 Level Speed Simultaneous Control: Joystick control direction and zoom Simultaneously Joystick Direction Control Inclination angle Bigger, Pan tilt speed faster UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street...
  • Page 5 Press [DVR] and [CAM], the blue light will blink two times, and the red light will be constant on to indicate the current status. UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street...

  • Page 6: Brief Instructions

    Focus Far NEAR: Foucs Near OPEN: Iris Open CLOSE: Iris Close PATTERN: Patterns UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL: +97143205447 Post code: EC4A 1JQ FAX: +97143205448 TEL:...
  • Page 7 Number+ON Auxiliary Off: Number+OFF Open Camera Menu: MENU→8888 In DVR model, Press “ DVR” button =ESC UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL: +97143205447 Post code: EC4A 1JQ...

  • Page 8: Lcd Display

    Input Number Area Camera Operate Model CAM：001 >> 0000 DVR Operate Model CAM: 001 >> 0000 DVR:001 UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL: +97143205447 Post code: EC4A 1JQ FAX:...

  • Page 9: Camera Operation

    255 auxiliary equipment for each camera (PELCO protocol). Auxiliary on: Number+ON Auxiliary off: Number+OFF Call Presets: (1) Input preset number “0-255” (2) PRESET UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL: +97143205447...
  • Page 10 Input number “0-4” (Max. 255) or refer to camera manual. SAVE Stop Patterns: Input number “0-4” (Max. 255) or refer to camera manual. (1) PAUSE UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL:...
  • Page 11 For example: The way to open the menu of camera with PELCO protocol is “95+PRESET”. Enter Camera Menu= 95+preset Please refer to camera manuals for the OSD menu operations. UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL:...
  • Page 12 Pelco-D usb (No3:=PelcoDusb) image setup function (in keyboard menu of No6:Camera Image) XL USB Protocol Setup: The Keyboard LCD Menu No5：USB Protocol=XL UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street...
  • Page 13 6．RS232-RX 7．GND 8．DC12V IN+ Matrix Camera ID CAM:001 >> 0000 MON:001 Matrix output change UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL: +97143205447 Post code: EC4A 1JQ FAX: +97143205448...
  • Page 14 Manual white balance，blue gain Button + Right （＋ ），image color deeper Adjusting Method: Button + Left （ － ） ，image color lighter UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street...
  • Page 15 Button + up/down Modify Parameter： Button + Left/Right Eg：Move Down Menu Cursor press button on the top of joystick and move down UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL:...
  • Page 16 Next Joystick Down+joystick button • AD Protocol Enter Menu： (tow Method (1) MENU+8888 (2) 95+PRESET UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL: +97143205447 Post code: EC4A 1JQ FAX:...
  • Page 17 Move Cursor：joystick left or right, Change parameter：joystick up or down Enter Menu：“MENU”→8888→“ENTER” back：ESC(DVR) Multiple picture：“MULTI”，full、4view、9view、16view Switch picture：“EDIT”； 1-16 picture UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL: +97143205447 Post code: EC4A 1JQ...
  • Page 18 Serial Port settings: function Baud rate “9600” Data bits “8” Stop bit “1” RS485 Verify "none" CommPort=Plug-6P UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL: +97143205447 Post code: EC4A 1JQ...
  • Page 19 The protocol is applied to Dahua DVR of RS485 and baud rate of 9600. Keyboard Settings: Set the DVR protocol as Dahua on the keyboard OSD. DVR ID =1 (under CAM mode: "number 1"+ "DVR"). UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street...
  • Page 20 Number 0-9,: ESC to exit Previous, next, slow forward, fast forward Cursor movement: move joystick up, down, left, and right UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL: +97143205447...
  • Page 21 Connections with Dahua DVR: RS232-DB9（2.RX, 3.TX ,5.GND） RX TX GND RS485 RS232 for one dvr RS485 for 2-99 dvr UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL: +97143205447 Post code: EC4A 1JQ...
  • Page 22 Fast Forward Jog/shuttle wheel: Control the frame of DVRs. Cursor control: Main joystick -“up, down, left, right” Connections with Dali DVR: UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL:...
  • Page 23 Operations of HighEasy DVR: Keyboard Settings: Set the DVR protocol as HighEasy in keyboard OSD. DVR ID =1 DVR Settings: Default UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL: +97143205447...
  • Page 24 Brief Instructions: Enter Menu: Enter Back to previous menu: ESC Multiple screen:MULTI 1-9 to select singe screen Connections with HighEasy DVR: UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL: +97143205447...

  • Page 25: Keyboard Settings

    Joystick Left or Right Next Menu: Joystick Down Previous Menu: Joystick Up Parameter+: Joystick Right Parameter-: Joystick Left UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL: +97143205447 Post code: EC4A 1JQ FAX:...
  • Page 26 M05:AeMode(AGC/Auto/Iris/Shutter) M06: IrisLevel(F1.6/F2.2/F3.2/F4.4/F6.4/F8.8/F12/F17F24/F34) M07: Shutter(1/4、1/8、1/15、1/30、1/50、1/60、1/100…1/10000) M08: AGC(0、6、12、18、24、30DB) M09: ZoomSpeed(Hgh/Sow/Mdium) M10:SensUp(1/30、1/15、1/8、1/4、Off) M11:Back Keyboard ID:：01-99 Exit UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL: +97143205447 Post code: EC4A 1JQ FAX: +97143205448...
  • Page 27 No3：Camea [Pelco-D] >>-- 2400 baudrate Press joystick button enter nest menu or back main menu UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL: +97143205447 Post code: EC4A 1JQ FAX:...
  • Page 28 Communication output port select CommPort =RJ-45 /Plug-6p No5：USB Protocol USB protocol No5：USB Protocol [XL] PELCOD UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL: +97143205447 Post code: EC4A 1JQ FAX:...
  • Page 29 M06: IrisLevel(F1.6/F2.2/F3.2/F4.4/F6.4/F8.8/F12/F17F24/F34) M07: Shutter(1/4、1/8、1/15、1/30、1/50、1/60、1/100…1/10000) M08: AGC(0、6、12、18、24、30DB) M09: ZoomSpeed(Hgh/Sow/Mdium) M10:SensUp(1/30、1/15、1/8、1/4、Off) M11:Back -----<Image>---- M11：Back <<…>> UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL: +97143205447 Post code: EC4A 1JQ FAX: +97143205448 TEL:...

  • Page 30: Port Explanation

    8．DC12V IN+ RS232 Control cameras, 2 RS485 RS485, Max. 2000M RS485 ports RS232 for camera UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street TEL: +97143205447 Post code: EC4A 1JQ FAX:...
  • Page 31 485 communication signal amplifier circuit and only transmits RS485 data. The Max. communication distance reaches 2000m; COM2 is a standard RS485 port, which enables parallel connection of multiple keyboards. UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk...
  • Page 32 That means you have successfully exit the camera menu mode. Or you can’t control the camera by PTZ Function at this menu mode state. UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk...
  • Page 33 Call Preset No.95: Enter the camera menu Call preset No.99: Auto scan Call preset No.98: Frame scan Call Preset No.97: Random scan UAE – Dubai www.saten.co.uk London – United Kingdom JAFZA - Al Aweer sales@saten.co.uk Fourth Floor, 30-31 Furnival Street...
  • Page 34 User Manual Saten Headquarter London – United Kingdom Fourth Floor, 30-31 Furnival Street Post code: EC4A 1JQ TEL: +448456769185 Saten / Middle East UAE – Dubai JAFZA - Al Aweer TEL: +97143205447 FAX: +97143205448 Saten / Europe Czech Long Safe s.r.o.
