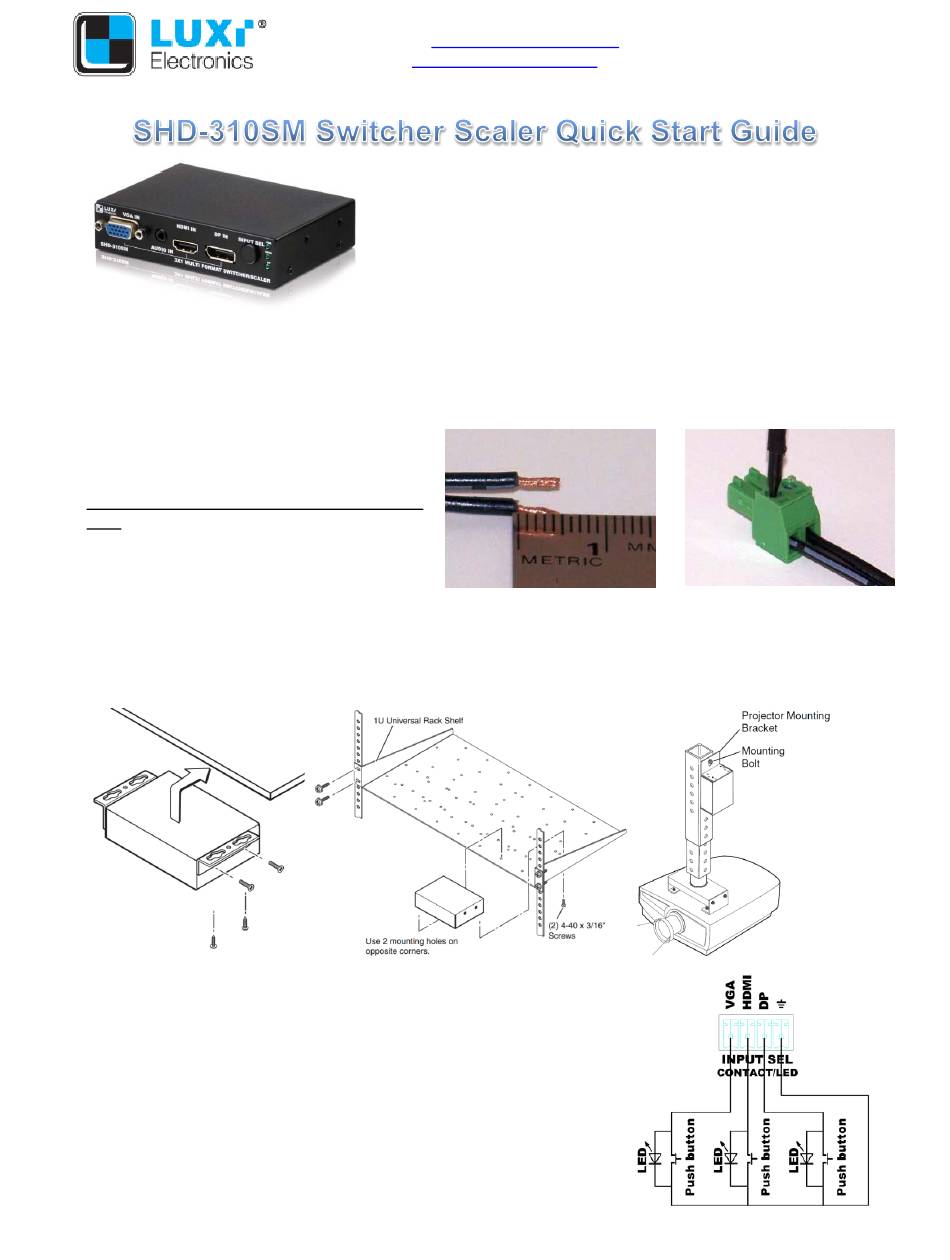

Luxi Electronics SHD-310SM Quick Start Manual

Power options: This product draws power from an external 12 V power supply sold separately (Luxi P/N
69-002-01). Do NOT plug the power supply connector into any other connectors; this could cause
permanent damages to the product and void the warranty.
Captive screw plug termination: The captive
screw plugs for power, audio, RS-232 and
contact controls are supplied with the unit.
Separate the wires about 1" (2.5 cm) long;
strip off the wire insulation precisely 3/16" (5
mm) from the end. Identify the positive and
negative leads for power; Luxi power supply
has a white stripe on the positive wire. If not
sure, use a multi meter to verify.
Mounting options: Luxi has the under desk mount sold separately (Luxi P/N 78-002-01); the product
also fits many other mounting hardware from Extron, Middle Atlantic, etc. Only use the type 4-40, 3/16"
(5 mm) long screws supplied with the mounting hardware to screw onto the product. Wrong type of
screw could strip the threads; too long screw could touch and short the internal circuit, cause
permanent damages to the product and void the warranty.
Control options: Pressing the "Input Sel." button on the front panel
will toggle thru the 3 video inputs. 3 sets of external contact closure
push buttons and LEDs can select inputs discretely with the LED
indication, see wiring diagram on the right side; when a button is
pressed, the associated LED would blink once, then stay on. A RS-
232 host connected to the rear panel can control all functions, see
page 3 for the RS-232 commands and responses.
Auto Input Switching: when activated by a RS-232 command, the
switcher will select the last connected input with active signal as the
Document name: SHD-310SM quick start guide Revision: 1.01
Website: www.luxielectronics.com
Email: xlu@luxielectronics.com
Thank you for purchasing the Luxi Electronics® SHD-310SM
switcher scaler. Please read through this manual before using
the product.
How the product functions: Please refer to the "Video signal
path" and "Audio signal path" sections in the right column of the
specs on page 4 for details.
Specifications are subject to change without notice
Phone: +1 (949) 654-2047
Address: Irvine, CA, USA
Date: 2/25/2015
