Summary of Contents for Galaxy GB1200

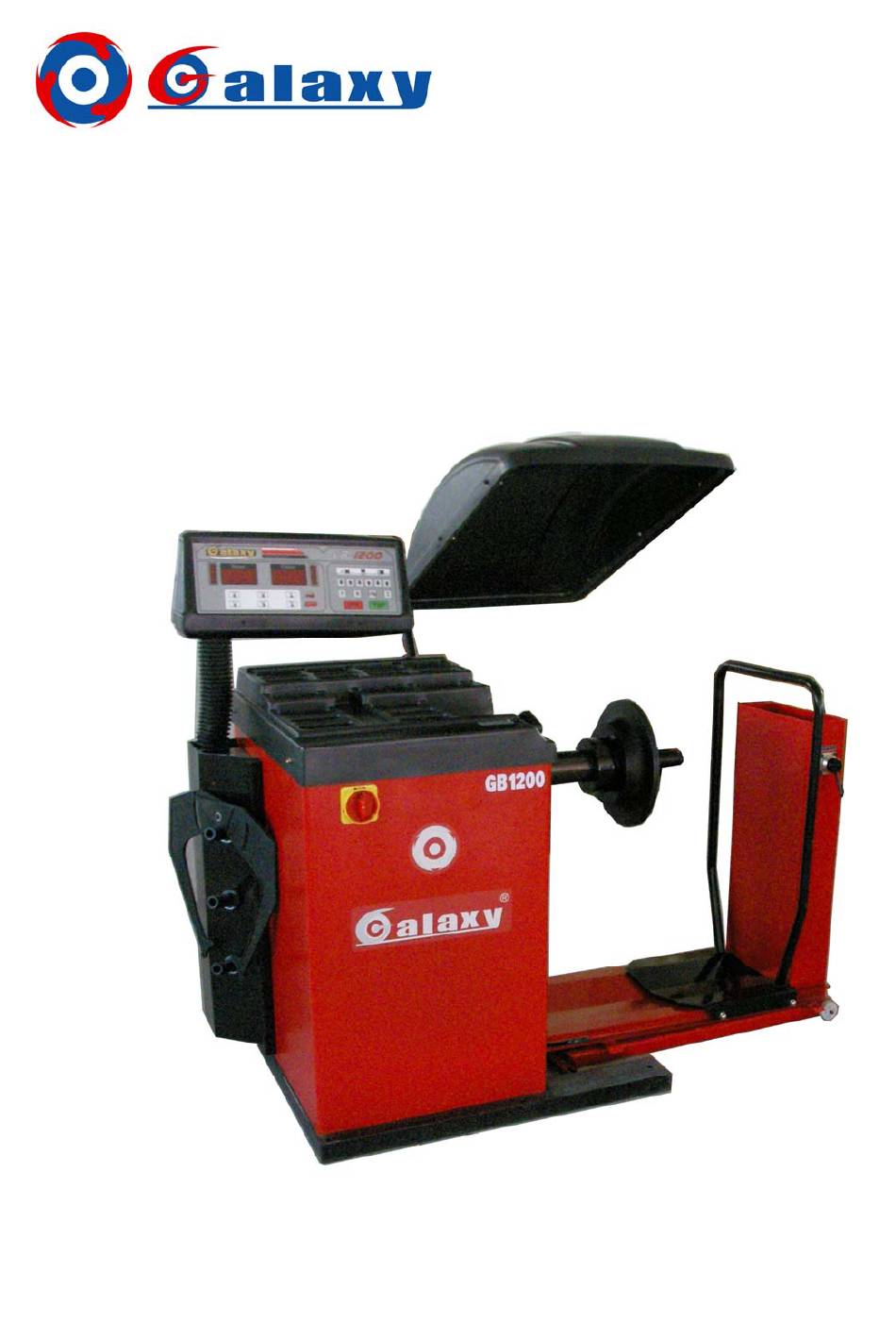

- Page 1 WHEEL BALANCER ITEM NO: GB1200 GALAXY AUTO SERVICE EQUIPMENT CO. LTD. www.galaxyauto.biz...
- Page 2 GB1200 User Manual 1. INTRODUCTION Thank you for your purchasing the computer wheel balancer. 1.1 Function Unbalance wheel results in steering wheel joggling, reduces adhesion force of vehicle, makes the wheels jump and damages tires, shock absorbers and steering parts. This influences riding comfort and controlling stability and increases oil wear, so that directly influences on vehicle’s economical efficiency index.
- Page 3 GB1200 User Manual 2.3 Warning -Ii is recommended that regulated power supply is adopted in the unstable power zone. -Please read the operation manual carefully before using the machine. If in doubt, do not use the machine and contact its manufacturer.
- Page 4 GB1200 User Manual A—Function key for manual input the distance between wheel and balancer B (L)—Function key for manual input of rim width D—Function key for manual input of rim diameter Select small sized and large sized tire balance RESET and ADJUSTMENT key...
- Page 5 GB1200 User Manual 4.2.1 Tire mounting ① Fix the screw mandrel on the main shaft. ② Install the tire tested on the main shaft beside the adapter. ③ Select the proper cone to fit over on the main shaft. ④ Tighten with lock washer nut.
- Page 6 GB1200 User Manual Ⅰ First input dimension “A” ● Measure the distance value “A” from on the inside of rim to the machine body with the distance finding ruler of machine itself. Press 〖△〗, the value increases. Press 〖▽〗, the value reduces.
- Page 7 GB1200 User Manual ALU1—Balance alloy rim by placing the adhesive weights onto the rim shoulders. The adhesive position of wheel weights as shown in left Figure. ALU2—Balance alloy rim by placing the adhesive weights that are hidden on the outside. The adhesive position of wheel weights as shown in left Figure.
-
Page 8: Maintenance
GB1200 User Manual 2. Check whether input dimension is wrong, press the key R to automatically defect the value A, L, D. 3. Check whether balancing modes accord with the tire structure. (See detailed 4.4 balancing modes) 4. Check whether the lock washer nut is tightened. - Page 9 GB1200 User Manual 1. Repeat the operation 5.1.1, 100g lead block is not beneath the main shaft, the value displayed has error. 2. Remove 100g lead block, balance the wheel (see chapter 4.5), until a zero (0) appears in the inner and outer LEDs window.
-
Page 10: Troubleshooting
GB1200 User Manual Correcting method as follows: 1. First press the keys R & START, the display board displays “CAL”--“CAL”. Indicator LEDs of phase position blink, release the keys after indicator LEDs go out. Left Window Right Window Fig.1 2. Continuously press the keys and F of distance ▽... - Page 11 GB1200 User Manual rotate. damaged. panel. 2. Display Err1 and rotate. Phase position 2. Adjust photoelectric tube generator goes wrong shelf, replace main board. main board 3. Boost voltage. damaged. 3. Power supply voltage is much lower. Display Err2 and rotate.
- Page 12 GB1200 User Manual is lower. Non-stopping time is more 1. Power supply is loose 1. Check outer power circuitry than 10s. contact. or replace power supply. 2. Disturb. 2. Shut down and start again. Balancing inaccurately and do 1. Sensor is affected 1.
- Page 13 GB1200 User Manual Steps: 1. Loosen nuts ①, ②, ③, ④. 2. Drying sensors ⑤, ⑥. 3. First tighten nut ①, then tighten nut ②. 4. First tighten nut ③, then tighten nut ④. Caution: The screw mandrel cannot touch the hole edge in the board.
- Page 14 GB1200 User Manual 7. Accessories Number Name Quantity TD01 Lockwasher bolt TD02 Calipers TD03 Balancing plier TD04 Screw mandrel TD05 Flange 1# TD06 Flange 2# TD07 Cone 1# TD08 Cone 2# TD09 Cone 3# TD10 Cone 4# TD11 Cone 5#...
