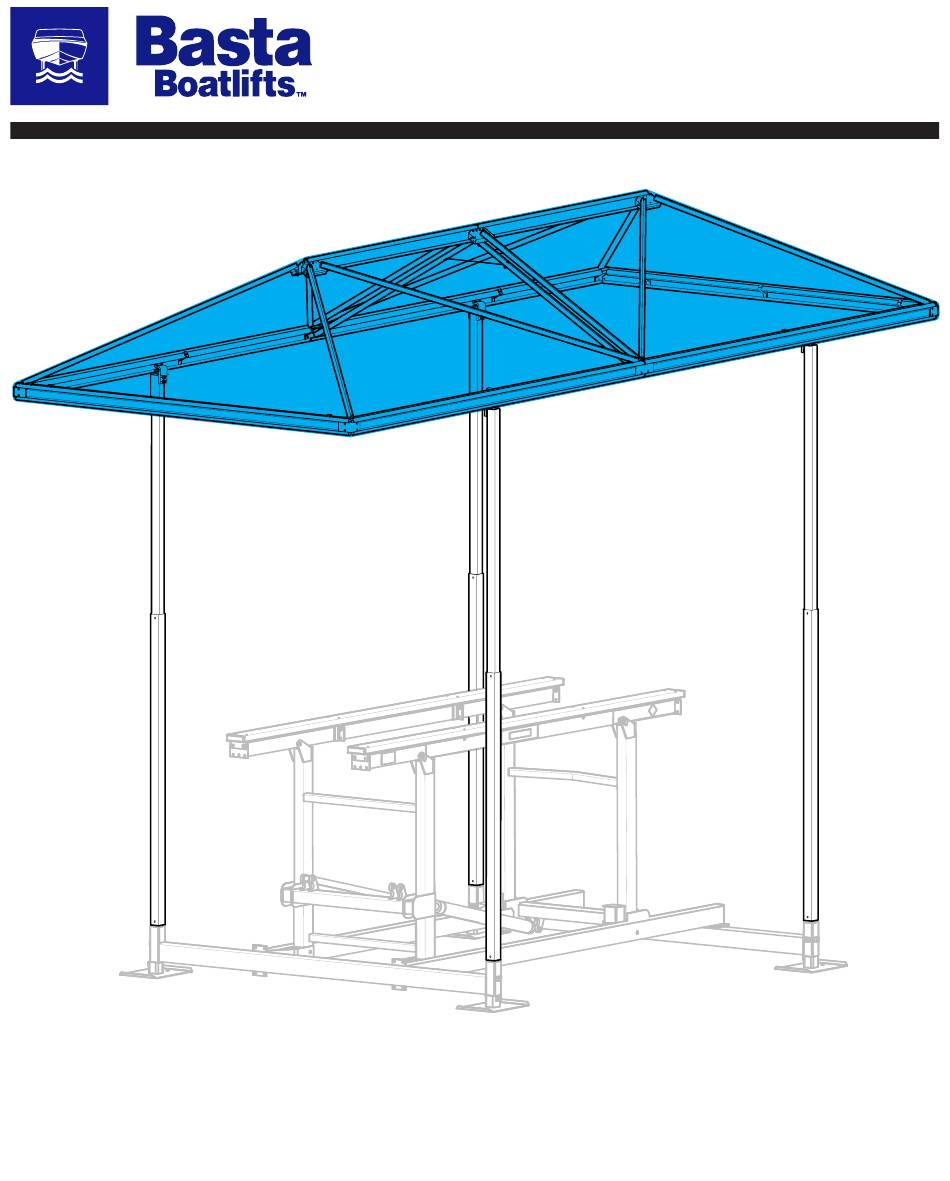

Solø
™
Wide Series Canopies
OWNER'S MANUAL
866-GO-BASTA
www.gobasta.com
11/21
Basta Boatlifts Bellevue WA 98005 USA
©
Copyright 2021 Basta Inc.
L392-0113, REV C

Advertisement

loading
Need help?

Need help?

Do you have a question about the Solo 26 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Basta Boatlifts Solo 26

  • Page 1 Solø ™ Wide Series Canopies OWNER'S MANUAL 866-GO-BASTA www.gobasta.com 11/21 Basta Boatlifts Bellevue WA 98005 USA © Copyright 2021 Basta Inc. L392-0113, REV C...
  • Page 2 THANK YOU Thank you for purchasing a Basta Boatlifts Solø™ Canopy. We feel you have made a wise choice and hope that you always remain completely satisfied with its beauty and durability. INTRODUCTION Please take a moment and read through this entire manual before beginning assembly.

  • Page 3: Tools Required For Assembly

    TOOLS REQUIRED FOR ASSEMBLY You will find the following tools helpful in the assembly of your Basta Boatlifts Solø™ canopy: 7/16” combination end wrench tape measure 1/2” combination end wrench carpenter's level 9/16” combination end wrench 2 pieces of 2 X 4 X 12' lumber 3/4”...
  • Page 4 WIDE 12 FOOT WIDTH Solø™ CANOPY TYPES Basta Boatlifts Solø™ canopies are modular. The wide Solø 26™ is shipped as five kits - three kits containing the long extrusions, one with the smaller pieces and hardware and one containing the canvas/vinyl. The wide Solø 30™, Solø 33™ and Solø 39™ each add a kit for the center section with both extrusions and hardware.
  • Page 5 WIDE 12 FOOT WIDTH Solø CANOPIES ITEM # PART # DESCRIPTION Solø 26 Solø 30 Solø 33 Solø 39 5/16 - 18 x 1 3/4 hex head cap screw S103-0408 5/16 - 18 x 3 hex head cap screw S103-0413 5/16 - 18 x 4 hex head cap screw S103-0417 1/4 - 20 x 1 hex head cap screw...
  • Page 6 WIDE 12 FOOT WIDTH CANOPY EXTRUSION IDENTIFICATION Solø 26 ™ End Rails (2x) 147.75" 375 cm Long Side Rails (4x) 154.5" 392 cm Long Ridge Rail (2x) 81.125" 206 cm Side Rafters (12x) 82.25" 209 cm Corner Rafters (4x) 108.75" 276 cm End Rafters (2x) 84.313"...
  • Page 7 WIDE 12 FOOT WIDTH CANOPY EXTRUSION IDENTIFICATION Solø 33 ™ End Rails (2x) 147.75" 375 cm Short Side Rails (6x) 130.5" 331 cm Short Ridge Rail (2x) 57.125" 145 cm Short Center Ridge Rail (1x) 130.5" 331 cm Side Rafters (20x) 82.25"...
  • Page 8 WIDE 12 FOOT WIDTH Solø™ CANOPY HARDWARE ITEM # PART # DESCRIPTION WHERE USED Solø 26 Solø 30+ 5/16 - 18 x 1 3/4 hex head cap screw ridge rail to upper rafter clips S103-0408 5/16 - 18 x 3 hex head cap screw single rafters to rafter clips S103-0413 5/16 - 18 x 4 hex head cap screw...
  • Page 9 CONNECTOR EXTRUSIONS Bungee Clip Ridge Rafter Clip Leg Clip Rafter Spacer Straight Splice Plate Corner Splice Plate tapped tapped Center Rafter Clip Rafter Strap Medium Rafter Clip Corner Rafter Clip SEE PAGE 5...

  • Page 10: Leg Assembly

    LEG ASSEMBLY 1. Install the 3/8 x 1” carriage bolts and nuts on the outer legs and leave slightly loose. 2. Install the inner legs with the end with two holes facing up. The carriage bolt heads slide in the slots. 3.
  • Page 11 ATTACHMENT TO LIFT 6. Raise the canopy legs until their tops are level (horizontal) by loosening the carriage bolts slightly one at a time and sliding the inner legs. A string, water or laser level will be very helpful here. Recheck the legs for plumb and adjust as necessary. 7.
  • Page 12 page 25 pages 22 - 24 pages 15 & 18...
  • Page 13 pages 21 & 22 pages 16, 17, 21 & 22 page 10...
  • Page 14 SPECIAL NOTES FOR Solø™ 30, 33 & 39 CANOPY FRAMES 1. These Solø™ canopies add a center extension section to a Solø™ 26 canopy. 2. The center section pieces are added in as the side rail and ridge rail assemblies are built. The same splice plates and rafter clips are used to connect the additional pieces.
  • Page 15 END RAIL ASSEMBLY The "end" rail assemblies are identical. The rails themselves are symmetrical, so there is no need to orient them in any particular direction before starting assembly. BUNGEE CLIP 1. Slide four Bungee Clips and a Medium Rafter Clip LACING RAIL into each rail dovetail and space them evenly as shown below.
  • Page 16 SIDE RAIL ASSEMBLY - Solø 26 1. Slide two Bungee Clips and a Medium Rafter Clip into the inner dovetail slot in each of the side rails. A Medium Rafter Clip is the same as a Corner Rafter Clip, but without threads in its side holes. 2.
  • Page 17 SIDE RAIL ASSEMBLY - Solø 30, 33, 39 1. Longer canopies have three piece side rails instead of two piece. They are similarly assembled. 2. The side lacing rails may have a hole that is offset from the center. The red bars in the illustrations show which direction the lacing rails are installed.
  • Page 18 CORNER ASSEMBLY 1. Position one of the completed end rail BUNGEE CORNER CLIP assemblies so that the free ends of its Splice RAFTER Plates can be inserted into the outer dovetail CLIP LACING slots of the assembled side rails. RAIL 2.
  • Page 19 RIDGE RAIL ASSEMBLY Solø 26 NOTE CHAMFER ON ALL RIDGE RIDGE RAFTER CLIPS RAIL 5/16 x 1 ¾" hex head RIDGE RAIL RIDGE RAFTER Solø 30, 33, 39 CLIP LEAVE NUTS LOOSE RIDGE ON END CLIPS ONLY RAIL RIDGE RAFTER RIDGE CLIPS (BOTH SIDES) RAIL...
  • Page 20 RIDGE RAIL ASSEMBLY 4. Have an assistant hold the completed ridge assembly in its installed position. Swing the corner rafters up and bolt them to the ridge rafter clips as shown below right. ALL CORNER RAFTERS (PAGE 5) 5/16 x 3" hex head 5/16 x 3"...
  • Page 21 SIDE RAFTER ASSEMBLY 5/16 x 4½" hex head RIDGE 5/16 x 4" RAFTER hex head CLIPS RAFTER 5/16 x 4½" STRAP hex head 5/16 x 2" carriage RAFTER STRAP ALL DOUBLE SIDE RAIL SETS HAVE THREE SPACERS AND WASHERS SIDE RAILS 5/16 x 4"...
  • Page 22 DIAGONAL RAFTER ASSEMBLY 30’ 26’ 39’ 33’ SEE PAGE 5 1. Install the diagonal rafters, grooves up, as located in the diagram above. Use 5/16 x 3” bolts. The rafters are identified by length, hole pattern and ID number on pages 6 & 7. DIAGONAL DIAGONAL DIAGONAL...
  • Page 23 END RAFTER ASSEMBLY SEE PAGE 5 1. Install the two end rafters, grooves up. The end with the horizontal hole is at the top. 2. At the top, the bolts already holding the RidgeRrafter Clips should be loose enough to slip the top of the end rafter in between.
  • Page 24 FINISHING THE CANOPY FRAME 1. Install the corner pads by passing the supplied cable ties through the holes in the pads and around the upper side rafters as shown below. 2. Walk around the canopy frame and tighten each of the fasteners snugly. Verify that all parts are aligned properly and that none of the extrusions are bent or bowed.

  • Page 25: Final Assembly

    FINAL ASSEMBLY 1/4 - 20 BOLT 1/4 - 20 LOCK (HIDDEN) 3/8 - 16 LOCK 3/8 -16 X 3 3/4 FLAT HEX HEAD WASHER BOLT 1. The canopy frame is now ready to be installed on the lift. Do not install the canopy fabric yet, as it would make the installation process more difficult and possibly dangerous as well.
  • Page 26 FINAL ASSEMBLY (cont’d) 4. If the canopy frame bows out slightly in the middle, tighten the bolt in the middle of the Rafter Strap. IT SHOULD NOT NEED TO BE TIGHTENED COMPLETELY. If there is still some bow with less than a ¼" gap in the center of the strap, examine the lift installation to determine the cause of the problem.
  • Page 27 Products. on the water. Welcome to the Basta Boatlifts family and Boat Happy! Labor for warranty work to be provided by the Company’s Authorized dealer for a period of 3 years from Warranty Start Date, provided there is an active Authorized Basta Inc.
  • Page 28 ACCESSORIES FOR MOST BASTA BOATLIFTS For additional information and images visit our web site at www.gobasta.com or contact Basta Marine at 1-866-GOBASTA for a catalog. Centering Guides Power Unit Support Bracket These vertical reference guides Safely secure the power unit box...
