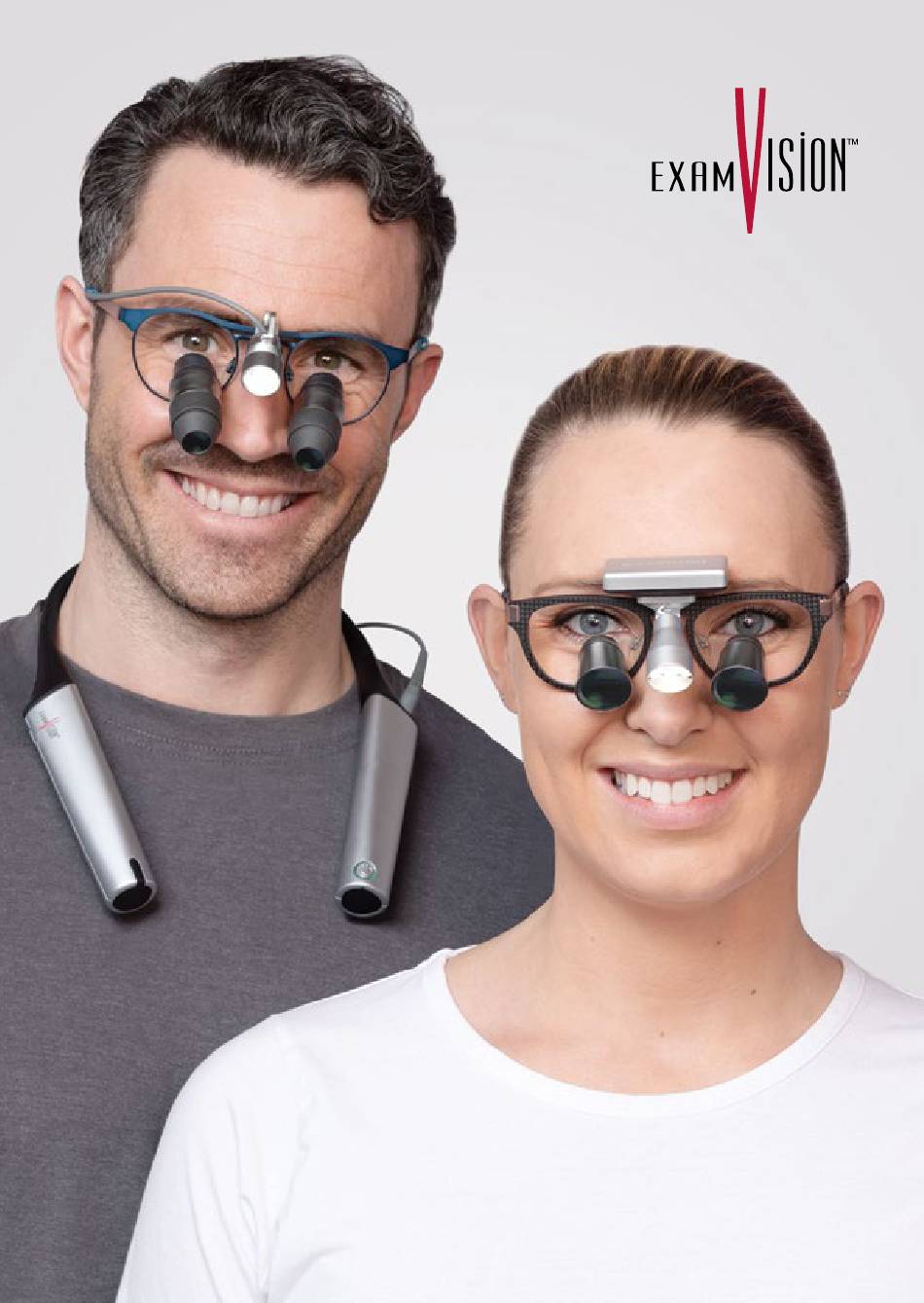

- Page 1 Congratulations on your new LED system...
-
Page 2: Table Of Contents
Content Introduction Getting started - Using your light for the first time Light cable direction Replaceable cable Help and guidance Warranty Your control unit and light PowerBand Focus™ Xtend Essential One Essential Alpha Symbols and instructions for proper use... -
Page 3: Introduction
You have chosen a high-quality light system, tailored to deliver the exact amount of illumination, right where you need it. ExamVision´s light systems have from 2 to 24 hours operating time, depending on chosen light system and light intensity. Our light systems are designed for either hands-free or touch-free operation for sterile environments. -
Page 4: Getting Started - Using Your Light For The First Time
Getting started – Using your light for the first time Light cable direction With the exception of Essential One LED, which is wireless, the light cable can be attached to the right or left loupe temple. For optimal balance, we recommend that the cable then runs around the back of your neck and attaches to the control unit on the opposite side. -
Page 5: Warranty
Covered by 1 year manufacturer warranty. Normal wear and tear, damage due to improper use or maintenance is not covered by warranty. In the event of malfunction, please return the device to your ExamVision dealer for repair. Please also see examvision.com/warranty... -
Page 6: Powerband
PowerBand Charging Port LED Port Touch-Free Power Motion Sensor Button... - Page 7 Operating your PowerBand Right side Left side Touch-Free Motion Sensor Power Button Power on Press the Power Button once. Switch between operating sides To switch the operating mode between Power Button and Touch-Free sensor, press the Power Button 3 times in quick succession.
- Page 8 Operating your PowerBand Memory When you turn off the PowerBand, it will retain the settings (light intensity and operating mode). Working time Working time of your battery varies with light intensity. The lowest setting can give you up to 24 hours continuous use, and the highest setting approximately 12 hours.
-
Page 10: Focus™ Xtend
Focus™ Xtend Charging Port Port Battery Level Light Intensity Indicator Indicator Pressable Front Panel Power Button... - Page 11 Operating your Focus™ Xtend Power on Press the Power Button once. (The control unit will not activate unless there is a lamp unit plugged in.) The Focus™ Xtend control unit may be Changing operated hands-free, by pressing the light front panel with e.g. the elbow. intensity A short press on the panel changes through 3 light intensities.
-
Page 12: Essential One
Essential One Battery Level Magnetic Indicator Charging Port Light Intensity Charging Control Rechargeable Lithium-ion Batteries (3) Curing Filter Lamp... - Page 13 Operating your Essential One Turning Place the battery pack on the connection on/off pad of the light. Turn the light on/off by a single tap on the top of the battery. Your light has two different intensities, Changing controlled by a quick tap on the right side. light intensity Note...
- Page 14 Operating your Essential One Working time Working time of your battery varies with light intensity, from 2 up to 3.5 hours of continous use. 3.5 hours 2 hours Battery charging status When the battery beeps, it needs charging. Connect the charging pad to charger and place the battery on the charging pad.
-
Page 16: Essential Alpha
Essential Alpha Charging Main Control Port on/off & light intensity LED Port Battery Level Indicator Battery Charging Indicator... - Page 17 Operating your Essential Alpha Power Rotate the button to turn the light on/off on and off. Rotate the button to alter light intensity. Changing light intensity Working time The lowest setting can give you up to 12 hours continuous use, highest setting approximately 4 hours.
-
Page 18: Symbols And Instructions For Proper Use
Caution. Correct use and maintenance Do not modify or alter your ExamVision product. Avoid touching the lamp housing during extended use at high light intensity as it may become warm. Do not expose the product to extreme hot, cold or moist conditions. - Page 19 When your battery is reaching the end of its natural life, after about 500 charges, you will find it needs to be charged more frequently. Water resistance Your ExamVision light and control unit are not designed to be immersed in water. Clean off any splashes immediately to avoid damaging your unit. Disinfection Use only alcohol-free disinfection products, such as ExamVision Disinfectant Wipes (available from your ExamVision dealer).
- Page 20 www.examvision.com...
