Summary of Contents for Urban THE O INITIATIVE OFOUNT

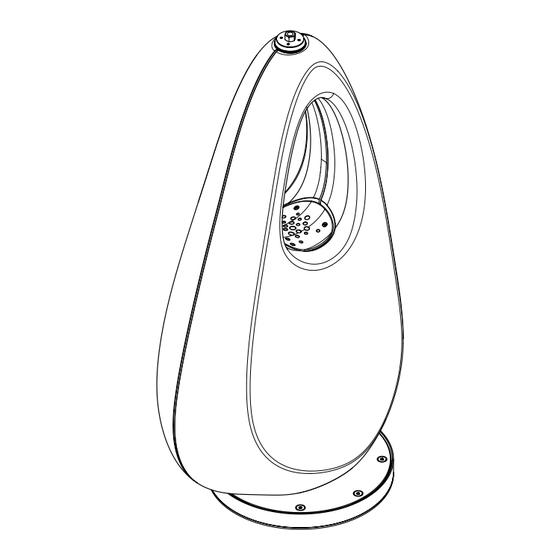

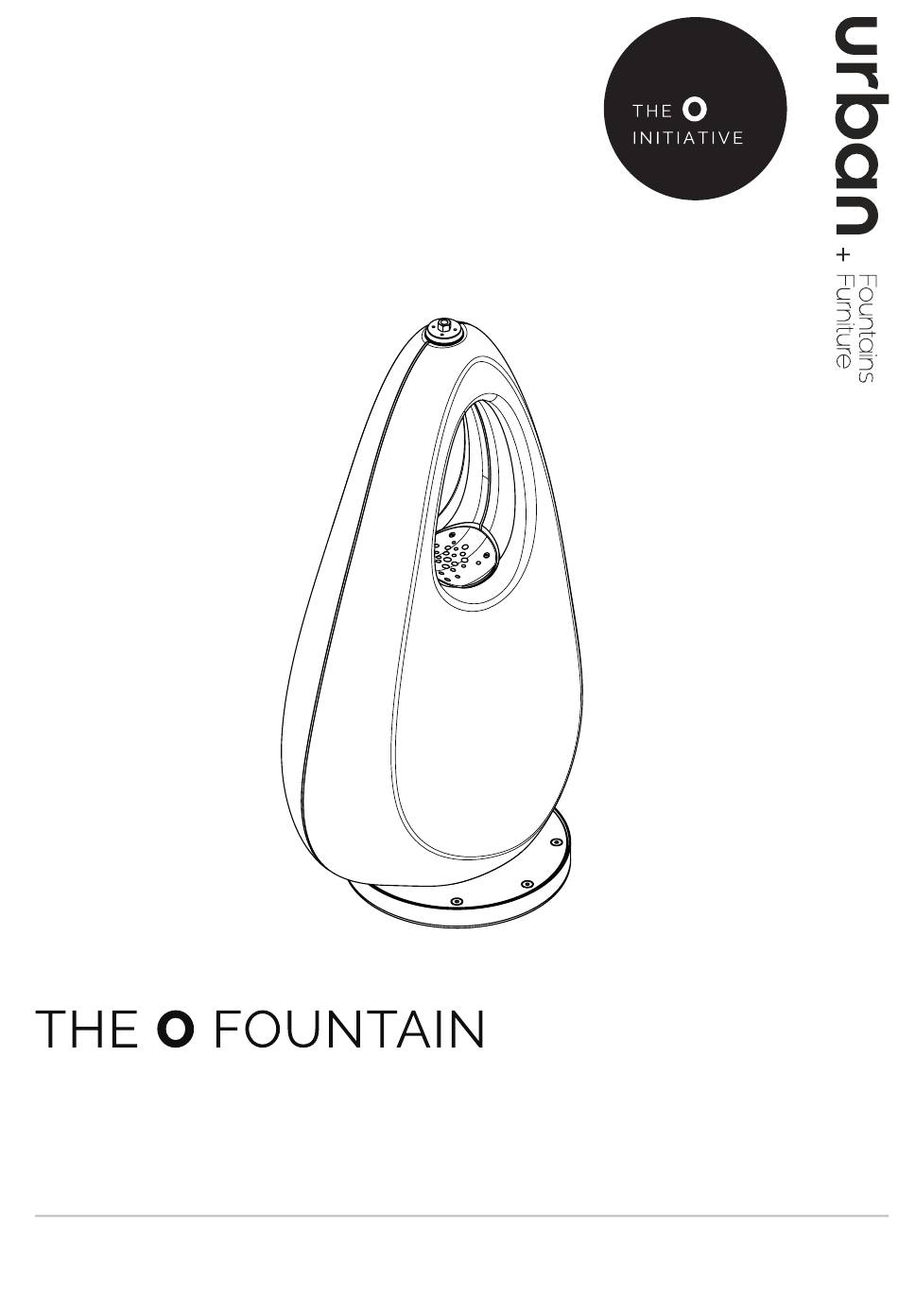

- Page 1 Installation and Maintenance Guide The O Fountain is 100% Australian made. The Glass Reinforced Concrete sculpture is manufactured in regional Victoria (Gippsland), Australia. making life better.
- Page 2 Installation and Maintenance Guide Dimensions Height 1,395mm Width 804mm Weight 120 kg (TBC) Material Outer Shell 15mm Glass Reinforced Concrete (GRC) Nozzle Stainless Steel Push Buttons Stainless Steel Drain Gate Glass Reinforced Concrete Base Plate Stainless Steel Mounting Frame Stainless Steel Flow rate 12.6 litres p.minute Power...
-
Page 3: Service And Maintenance
Installation and Maintenance Guide Certification Disability Accessible - Certified (DO-16-1958) WaterMark (AS/NZ4020 - for detail visit http://bit.ly/WMK26130) Service and Maintenance The O fountain has been developed with support from Zip Water, therefore we highly recommend to book a Zip Service Technician in the event the unit needs repair and/or a part is ready for replacement. - Page 4 Installation and Maintenance Guide WARRANTY The warranty is a standard 12-month warranty on parts. Meaning that if any part should fail within 12 months from the date of installation, except as detailed below, that part will be repaired or replaced free of charge by the O Initiative, its Distributor or Service Provider, provided that: •...
- Page 5 Installation and Maintenance Guide Anchoring The O Fountain is delivered with the stainless steel mounting plate fitted securely to the reinforced concrete body. A matching stainless steel mounting frame is supplied for fixing onto a concrete slab at the point of installation. Several options for installation are shown in p.10, p.11, p.12.
-
Page 6: Component Parts
Installation and Maintenance Guide Component Parts 1. Push Button 9. Drain Cover 17. Poly Drain DN50 2. Outlet Manifold 10. Access Door 18. Waste Pipe DN50 3. Side Manifold 11. Straight Adapter 5/16” 19. Feeder Pipe 4. Casing Front 12. Stem Elbow 20. - Page 7 Installation and Maintenance Guide Detail A Overall Dimensions making life better.
-
Page 8: Mounting Plate
Installation and Maintenance Guide Mounting Plate making life better. -
Page 9: Mounting Frame
Installation and Maintenance Guide Mounting Frame making life better. - Page 10 Installation and Maintenance Guide Installation Option A Paved Surface Note: Ensure fixing ring is set level. making life better.
- Page 11 Installation and Maintenance Guide Installation Option B Concrete Slab – Existing Building Note: Ensure fixing ring is set level. making life better.
- Page 12 Installation and Maintenance Guide Installation Option C Concrete Slab – New Build Parks and Gardens Note: Ensure fixing ring is set level. making life better.
- Page 13 Installation and Maintenance Guide Contact 07 3382 7372 office@urbanff.com.au 5 Telford Circuit YATALA QLD 4207 making life better.
