MBCI EM BattenLok HS Manual

EM BattenLok
Field Seaming Tool Manual
EM BattenLok
The seamer and the hand crimper are shipped in individual specially designed boxes accompanied by a field man-
ual. Read the field manual thoroughly before starting the seaming operation. Failure to adhere to these
instructions will result in damage to the seamer and/or panels. The erector will be held liable for any costs
incurred for replacement or repair.
1. Locate field manual in the hand crimper or seamer box and review operational procedures.
2. Locate power source and check against power requirements in field manual.
3. Check seams for proper engagement.
4. Clean dirt, debris and excess sealant from seams and panel surfaces to avoid interfering with the
seaming operation.
5. Panels must be hand crimped at each clip and endlap as they are installed to prevent their separation
by a strong wind. Panels should be seamed with electric seaming tool as soon as possible after instal
lation.

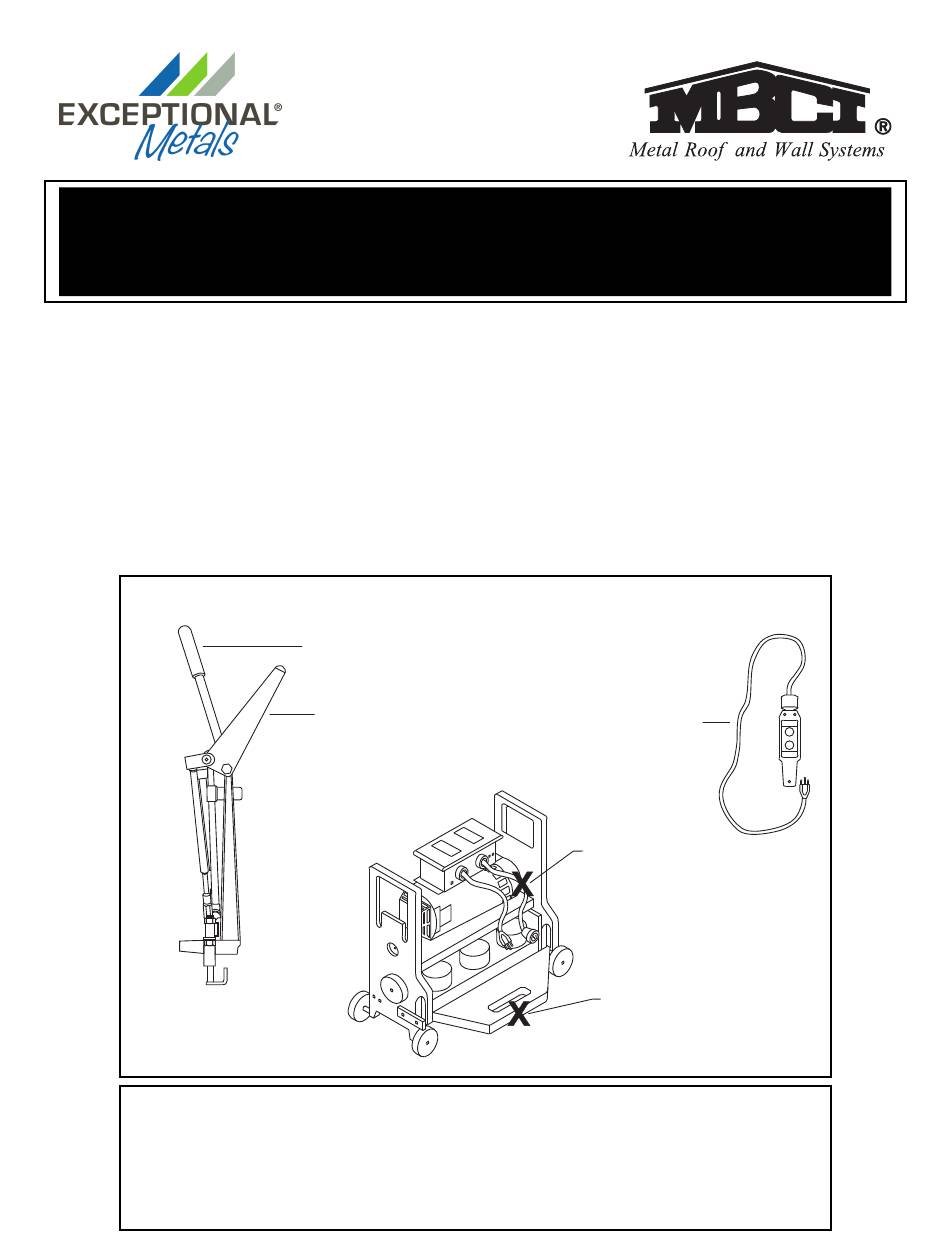

CRIMPING ARM
(UP POSITION)
HAND CRIMPER
(Shipped Separately)
This Seaming Equipment Kit was checked before shipment and found to be complete and in proper working condi-
tion. Upon receipt of this kit, inspect for any damage that may occurred during shipment. If any damage is discov-
ered, call MBCI immediately for instructions.
It is the erector's responsibility to become familiar with, and operate, the seaming equipment in accordance with the
instructions provided in this manual using safe construction practices. Failure to adhere to these instructions could
result in damage to the seaming equipment and/or roof panels, or injury to erection personnel.
®
HS Seaming Information
Pre-Seaming Information
EQUIPMENT CHECKLIST
LOCKING ARM
(UP POSITION)
ELECTRIC SEAMER
ERECTOR RESPONSIBILITY
HS
®
REMOTE
SWITCH
PENDENT
DO NOT PULL
When handling seamer tool, always use
the handles to lift or pull it.
NEVER PICK IT UP BY THE LOCKING
ARM OR PULL IT BY THE ELECTRIC
CORD
DO NOT LIFT
