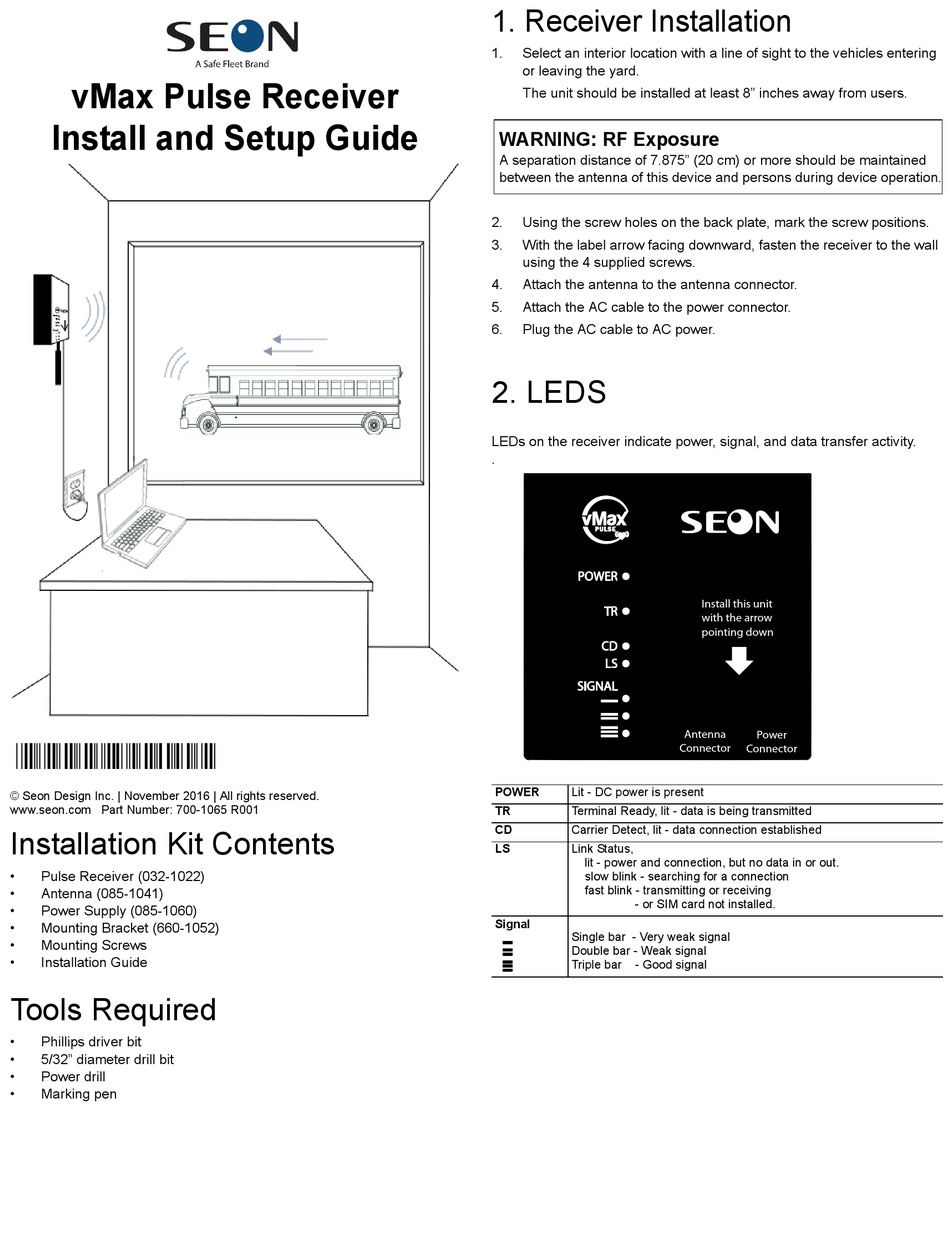

SEON vMax Pulse Install And Setup Manual

vMax Pulse Receiver
Install and Setup Guide
*700-1065*
© Seon Design Inc. | November 2016 | All rights reserved.
www.seon.com Part Number: 700-1065 R001
Installation Kit Contents
• Pulse Receiver (032-1022)
• Antenna (085-1041)
• Power Supply (085-1060)
• Mounting Bracket (660-1052)
• Mounting Screws
• Installation Guide
Tools Required
• Phillips driver bit
• 5/32" diameter drill bit
• Power drill
• Marking pen

1. Receiver Installation

1. Select an interior location with a line of sight to the vehicles entering
or leaving the yard.
The unit should be installed at least 8" inches away from users.
WARNING: RF Exposure
A separation distance of 7.875" (20 cm) or more should be maintained
between the antenna of this device and persons during device operation.
2. Using the screw holes on the back plate, mark the screw positions.
3. With the label arrow facing downward, fasten the receiver to the wall
using the 4 supplied screws.
4. Attach the antenna to the antenna connector.
5. Attach the AC cable to the power connector.
6. Plug the AC cable to AC power.

2. LEDS

LEDs on the receiver indicate power, signal, and data transfer activity.
.
POWER Lit - DC power is present
TR Terminal Ready, lit - data is being transmitted
CD Carrier Detect, lit - data connection established
LS Link Status,
lit - power and connection, but no data in or out.
slow blink - searching for a connection
fast blink - transmitting or receiving
- or SIM card not installed.
Signal
Single bar - Very weak signal
Double bar - Weak signal
Triple bar - Good signal
Install this unit
with the arrow
pointing down
Antenna Power
Connector Connector
