- Page 1 24V DC OWNER'S MANUAL TR7322U-OR / TUNER...
- Page 2 安全须知 规 格 目 录 安全须知 ............1 一 般 感谢您购买本产品，请在使用前仔细阅读说明 规 格 ............1 书，并保留以备将来查验。 电源 : 2 4V 直流 (18V-32V) 面板功能 ............2 最大输出功率： 4X10W 基本功能 ............3 适用扬声器阻抗： 8ohm 预防措施 USB 功能概述 ..........3 保险丝规格：...
- Page 3 面板功能 1. - 开机 EQ OFF-CLASSIC-POP-ROCK-FLAT 短按 , 自动由低向高搜索电台 - 静音 旋转 VOL 钮进行选择。 长按 , 转到手动搜索模式 , 进行手动单步搜索 - 开机状态下长按关机 5. - 短按 , 时钟显示 - MP3 模式 : 短按 , 选择下一曲 长按 , 快进播放 2. - 模式转换： - 在时钟显示状态 : 长按 , 调节时钟 8. - USB 插口...
- Page 4 USB 功能概述 基本功能 MP3 播放 播放/取走 USB 设备 收音 自动搜索模式： 1.将 USB 插入连接口， LCD 会显示 USB ，主机 短按 键执行向前或向后选择曲目。 长按 键执行快进或快退播放 按 键可自动由高向低或由低向高搜索收 将自动播放 USB 所储存的歌曲。 音电台。 2.停止使用 USB 的设备，可按 SRC 钮切换到其 按[ 5D-]/[6D+] 键选择上一个 MP3 文件夹或下 手动搜索模式： 他的模式，可直接取出 USB 存储器。 一个...
- Page 5 故障排除指南 如果察觉出现问题，应立即关闭电源，停止使用并与经销处或指定维修站取得联系。切勿擅自进行修理，这是非常危险的。 问题现象 原 因 对 策 一般性问题 没有电源 汽车点火开关处于关闭状态 请将汽车点火开关打开 保险丝熔断 更换指定规格保险丝 没有声音 音量或静音关闭 检查音量或静音是否打开 收音问题 接收不到电台 天线没有正确连接 将天线重新正确连接 收音噪音大 电台过远或信号过于微弱 选择具有更高信号电平的其它电台 预选电台丢失 电池电缆的连接不正确 将电池电缆连接至常时带电的接线柱 USB问题 无法插入USB设备 USB孔插反了 将USB反过来插入 USB设备无法读取 NTFS格式不支持 检查文件系统为FAT或FAT32格式。不同格式及存储设备不同， MP3播放器可能无法读取。...
- Page 6 电气连接 电气连线插座...
-
Page 7: Table Of Contents
Specifications Contents Safety Information Safety Information ........1 Thank you for purchasing this product, please General Specifications .......... 1 read the manual carefully before operating, Power supply: 24V DC (18V-32V) and reserve it for future reference. Panel Controls ..........2 Maximum power output: 4X10W PRECAUTIONS Button Tips ............3 Suitable speaker impedance: 8ohm • U se only in a 24-volt DC negative-ground Fuse spec: 8A USB function Summarization ......3 electrical system. Weight: 0.8kg • D isconnect the vehicle's negative battery Troubleshooting ..........4 terminal while mounting and connecting... -
Page 8: Panel Controls

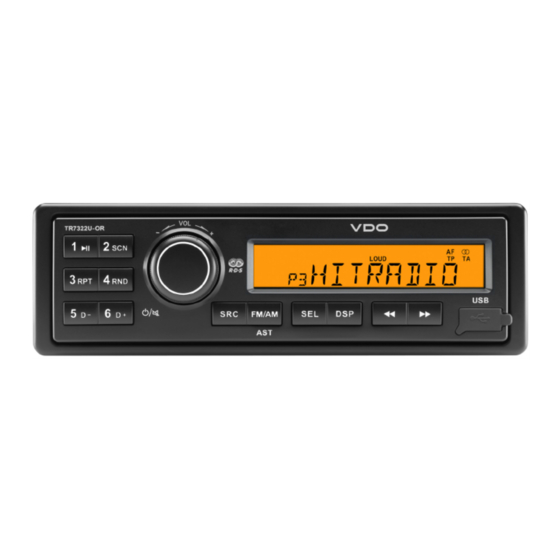

Panel Controls 1. - Power on knob to adjust value Select the previous track - Mute - Hold it to select EQ preset mode: 7. - Radio mode - When on, hold it to power off. EQ OFF-CLASSIC-POP-ROCK-FLAT, Auto search the station from low to high - Rotate the knob to adjust the volume. Rotate the VOL knob to select - MP3 mode 2. - Source 5. - display system clock Select the next track Radio - Hold it to setting clock 8. - USB slot USB (when USB inserted) - Radio mode: 9. - Play/pause AUX IN d isplay PTY info/system clock/ 10. - Program intro play(10 sec.) 3. - Band switch: current channel 11. - MP3 repeat play FM1 -> FM2 -> FM3 -> AM1 -> AM2 - MP3 mode: 12. - MP3 random play - Hold it Automatically search station and Turn and turn about folder name/file name/ 13. - MP3 folder back store the signal strongly station to 1-6 ID3 TAG/Clock 14. - MP3 folder ahead Preset 6. - Radio mode 15. - 1-6 radio preset... -
Page 9: Button Tips
USB Function Summarization Button Tips Loading/Take out USB equipment MP3 Playback space Info of auto search with RDS. Setting for “L”, Auto search the TA time space 1. Insert a USB device into the connector Track skip for 180 sec,Setting for “S”, auto search the TA and the unit will begin to play Press the button to go to the previous or time space for 45 sec automatically. next track. Tune 2. To stop playback of USB device, push Hold it to enter fast forward or reverse back the SRC button to non USB mode and mode. Radio seek automatically then remove the USB device. -
Page 10: Troubleshooting
TROUBLESHOOTING The following checklist can help you solve some problems which you may encounter when using the unit. Before consulting it, check the connections and follow the instructions in the user manual. Do not use the unit in abnormal condition, for example without sound, or with smoke or foul smell can cause fire or electric shock, immediately stop using it and call the store where you purchased it. Problem Possible cause Solution General T h e u n i t w i l l n o t Car ignition is not on. Turn your car key in the ignition. switch on. Cable is not properly connected. Check cable connection. Fuse is burnt. Replace fuse with a new fuse of the same capacity. No sound Volume is set at minimum or the mute Check the volume or switch the mute function off. function is on. The unit or screen The unit system is unstable. -
Page 11: Electrical Connections
Electrical Connections Wiring Diagram... - Page 12 P/N:127075002534...
