Summary of Contents for Mirabella International I002866

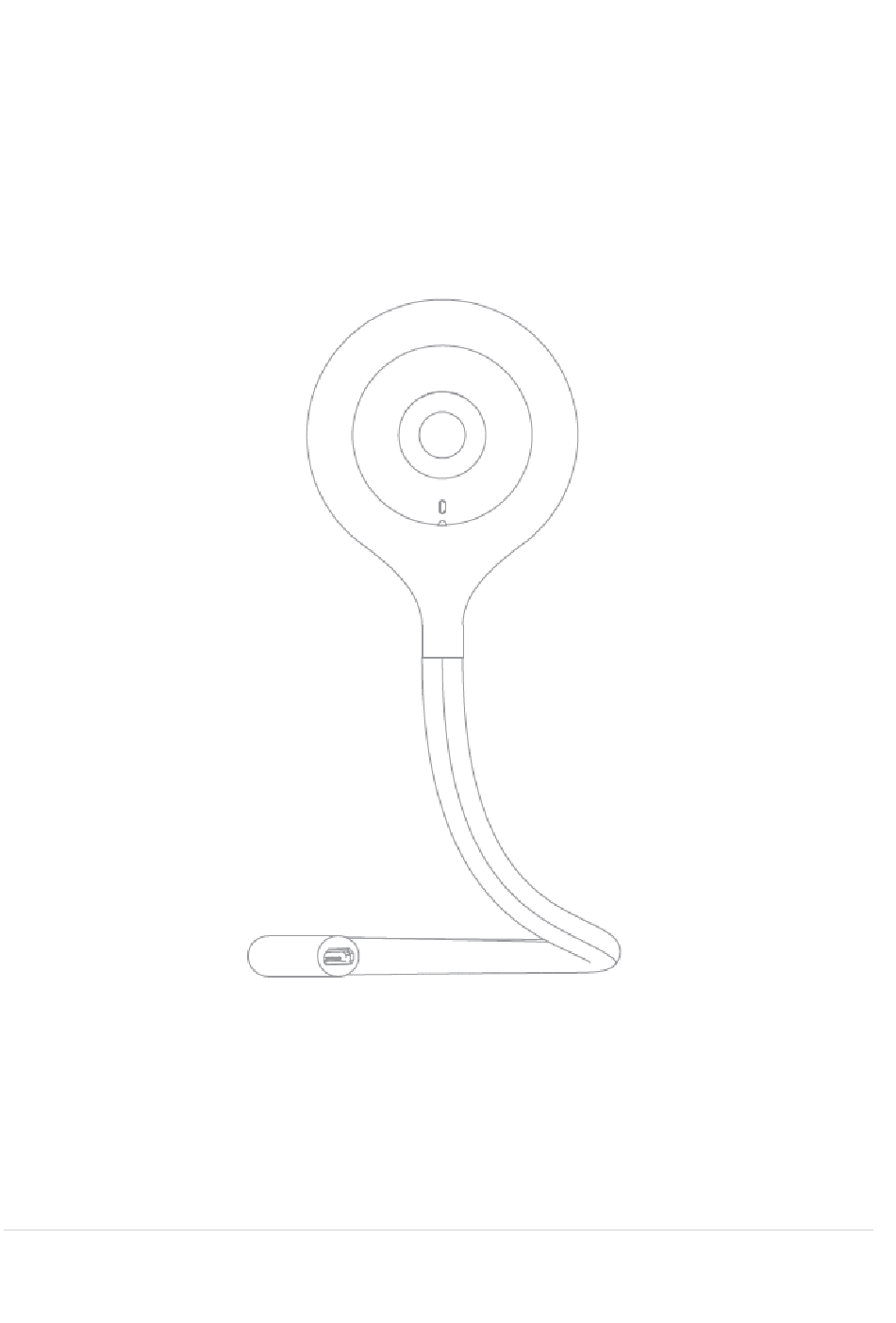

- Page 1 Quick Start Guide Mirabella Bebe Full HD Flexi Baby Camera Model: I002866 V2.0.0 18/09/2020 P a g e...
- Page 2 What’s included camera Mounting Power screws bracket Adapter Product Details P a g e...
- Page 3 Connection Preparation It is important that your phone is connect to 2.4Ghz Wi-Fi and not to the 5GHz network. To verify your mobile device is set to a 2.4Ghz Wi-Fi network, navigate to the Settings menu and click on Wi-Fi. In this menu you will see all the detectable networks in your area.
- Page 4 1. Install the APP and register Account Download the "Mirabella Genio" APP to your smartphone from App Store or Google Play, or you can also scan the QR code below, the APP icon will be displayed after installed successfully 2. Insert the Micro SD card (not included) The camera is able to work without a Micro SD card but it will not able to record any footage without a Micro SD card.
- Page 5 2. Camera Installation IMPORTANT: Do not bend this section! P a g e...
- Page 6 P a g e...
- Page 7 3. Pairing the camera using Mirabella Genio App 1. Connect the supplied adaptor to the camera and turn on the power switch Wait for 10-40 seconds, the indicator light will start blinking rapidly in RED (2 blinks per second) – The camera is now ready to pair 3.
- Page 8 6. Tap continue and the QR code will appear, face this QR code towards the front of the camera approximate 15-20cm, until your hear a sound. 7. Please wait for indicator light changed to solid BLUE, then tap the beeped/indicator switch button 8.
- Page 9 Camera interface is subject to slight alterations based on firmware updates Tap on the pencil icon you can access the camera’s Settings page To take snapshot of the screen and save it to phone’s camera roll Tap to speak to the camera Record live footage into your phone’s internal storage Access to the footage...
- Page 10 Device information: Detailed information for this camera, owner information, Virtual ID, IP address etc Basic Function Settings: Access to status indicator on/off, Flip screen, Time Watermark option IR Night Vision: O n/off or Auto Detection Alarm Settings: Access to motion sound & cry detection options Memory Card Settings: This will only appear when 8GB-128GB Micro SD card is...
- Page 11 Basic Function Settings Status indicator: This will turn off the blue status indicator light on your camera Talk Mode: You can either select one way or two way talk mode Detection Alarm Settings Motion Detection Turn on/off motion detection or adjust the sensitivity level Sound Detection: Select sensitivity level Low or High...
-
Page 12: Memory Card Settings
Memory Card Settings SD Card Recoding: This option must be turned on if you want to record footage onto SD card and view it in playback mode Event recording: Only records if it detects movement, motion detection option must be on at same time for it to work Non-stop Recording: Camera will start to... - Page 13 FAQs . I am using Telstra NBN, I disabled the 5Ghz and I still cannot get it to pair? Please follow the Guest Network paring instructions on https://mirabellagenio.net.au/faqs Q. LED indicator light is not blinking red rapidly when turned on A.
- Page 14 . This is an indication of a communication error with the router, please ensure you manually disable the 5GHz Wi-Fi signal on the router setting Q. How to connect camera to another Wi-Fi network? Go into the cameras settings, tap on “remove device” to remove it , reset the camera and pair it again through the app.
- Page 15 Q. Need more help or further technical assistance from Mirabella engineer? A. In the genio APP home screen, tap on, Me, -> FAQ & Feedback -> Report issue Complete the fault information or suggestion for the APP/product, then submit If you have done all of the above, ensuring that the 5Ghz is disabled and the light changed from blinking red to blinking blue, but failed to become a solid blue, then your modem could be incompatible with smart device.
- Page 16 All trademarks are used for reference purposes only. Made in China MIRABELLA INTERNATIONAL PTY LTD 1 MIRABELLA DRIVE, TULLMARINE, VIC, AUSTRALIA 3043 TOLL FREE: 1800 636 528, www.mirabellagenio.com.au 16 | P a g e...
