Summary of Contents for Strategic Vista SG14S1022C-A

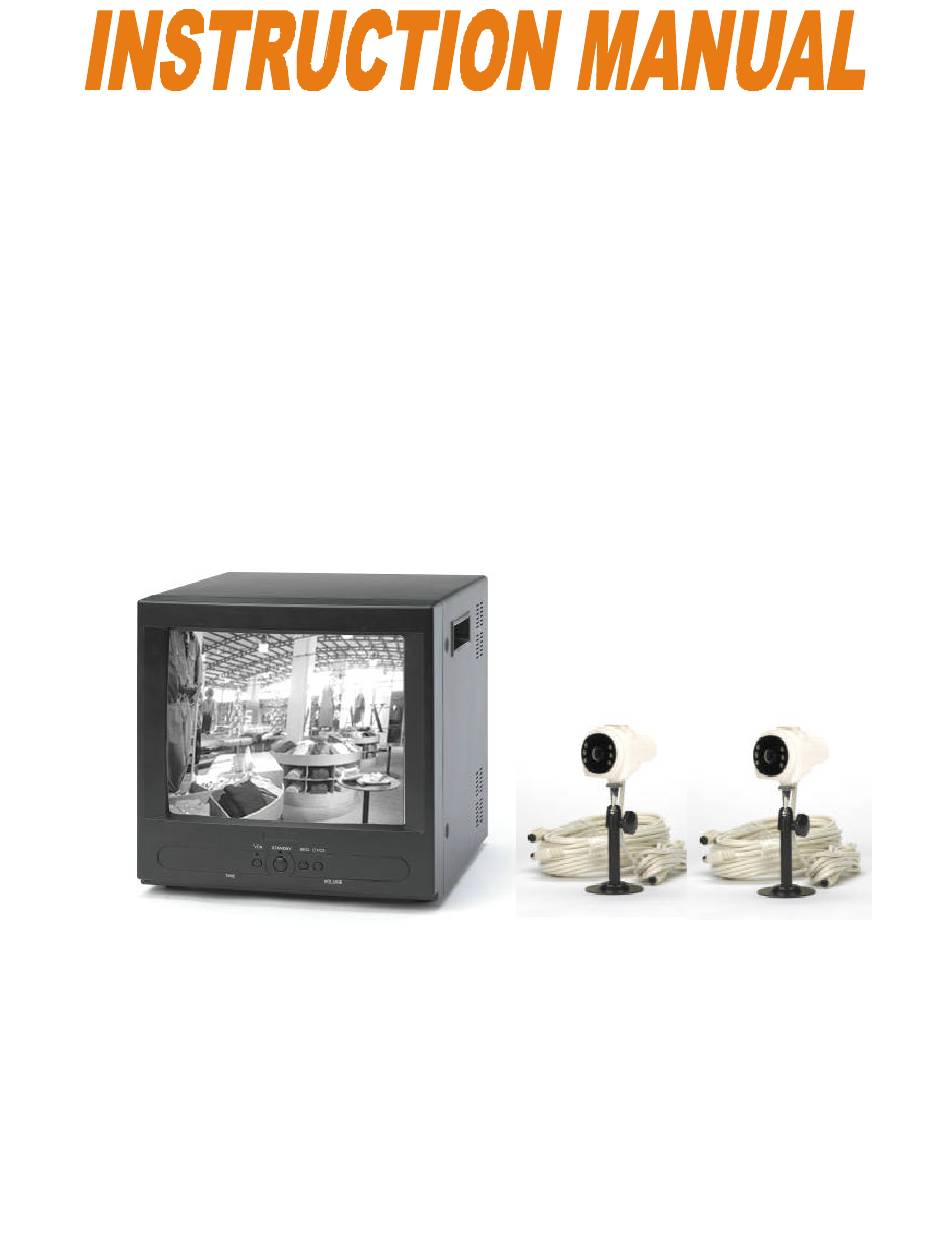

- Page 1 14” B&W 2-CHANNEL OBSERVATION WITH 2 CAMERAS SG14S1022C-A FOR MORE INFORMATION WWW.STRATEGICVISTA.COM Before operating the system, please read this manual thoroughly and retain it for future reference.
- Page 2 CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Explanation of two Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
- Page 3 SAFETY INSTRUCTIONS IMPORTANT SAFEGUARDS All the safety and operating instructions should be read before the appliance is operated and retained for future reference. 1. HEED WARNINGS - All warnings on the appliance and in the operating instructions should be adhered to. 2.
-
Page 4: Table Of Contents
To learn more about this product and for a complete listing of Lorex Video Security products, please visit us at: www.strategicvista.com CHAPTER TABLE OF CONTENTS PAGE INTRODUCTION & FEATURES…………………………………………………….….1 SYSTEM INCLUDES………………………………………………………………...…..2 CONTROLS AND FUNCTIONS MONITOR …..........………………………..…..…..3 CAMERA ...….……………........……….………….……...……5 INSTALLATION CAMERA ............………………………..….....5 MONITOR ................…......6 SYSTEM OPERATION CONNECTING THE MONITOR TO A VCR ……...…………………………..7... - Page 5 INTRODUCTION: Thank you for purchasing the Lorex 14” 2-Channel B&W Observation System with 2 cameras which is ideal for monitoring your business, office, home or valuables. The system allows you to automatically scan up to 2 cameras. View the locations Sequentially or in Full Screen.
-
Page 6: System Includes
SYSTEM INCLUDES STANDBY C1/C2 TIME VOLUME 14” – 2 CHANNEL BLACK & WHITE MONITOR 2 - 1/3” CMOS BLACK & WHITE CAMERA WITH STAND AND 57 FT CABLE OWNER’S MANUAL... - Page 7 MONITOR CONTROLS – FRONT PANEL STANDBY C1/C2 TIME VOLUME 1) Time – Use this time control dial when in the sequence camera mode. It allows you to adjust the dwell time (1-60 seconds), or the amount of time between the cameras automatically switching between channels 1 and 2 2) VCR Button –...
- Page 8 MONITOR CONTROLS – BACK PANEL VIDEO VIDEO CONT BRIT 1) AUX Video/Audio Out - Use with A/V cables (not supplied) for use with a slave monitor. 2) VCR Video/Audio Out – Use an RCA audio/video cable (not supplied) to connect to a recording device (eg.Time Lapse VCR).
- Page 9 WIRED CAMERA CONTROLS Camera Lens – Delivers high quality image by using a 1/3” CMOS Image Sensor Speaker – Delivers sound from the monitor to the camera Camera Inputs – Connects cable to monitor Bracket – Metal bracket connects to camera for mounting to walls, ceilings or table Microphone –...
- Page 10 1. Attach the stand base to the wall or ceiling where you want to install the camera. Locate a wall stud or ceiling joist and secure bracket using the supplied mounting screws. 2. Attach the camera to the stand and firmly tighten the swivel. 3.
-
Page 11: Monitor
OPERATION CONNECTING MONITOR TO A VCR AUDIO VIDEO RCA Cables (not included) Connections Connect the supplied audio/video cable from the back of the monitor to the Audio/Video Input of the VCR. Note: If you are connecting this unit to a standard VCR you must set your VCR to a video channel, such as an A/V, Line 1/Line 2, AUX, etc or a snow y picture will result during playback Did You Know? -
Page 12: Optional Accessories
OPTIONAL ACCESSORIES The following accessories are available to add to your existing system. CABLE TIME LAPSE VCR NIGHTVISION Weatherproof night vision Extends viewing length Used to record key events. accessory. Allows you to from camera to monitor. Select from a 40 hour real see in the dark up to Available in 65, 100 and time or 1280 Hour time... -
Page 13: Technical Specifications
TECHNICAL SPECIFICATIONS WIRED WEATHER RESISTANT CAMERA B&W CMOS Camera Image sensor 3.6mm Lens Picture Elements 320 H X 240 V Scanning system 2:1 interlace Resolution Horizontal 400 TV Lines Min. illuminations 0.1 Lux @ F2.0 Video Output 1.0Vp-p/75 Ohm Gamma characteristics 0.45 Auto Iris Electrical Auto Iris... - Page 14 CARE AND MAINTENANCE: Please follow these instructions to ensure proper care and maintenance of this system Keep your monitor and camera dry. If it gets wet, wipe it dry immediately. Use and store your unit in normal temperature environment. Extreme temperatures can shorten the life of the electronic devices.
