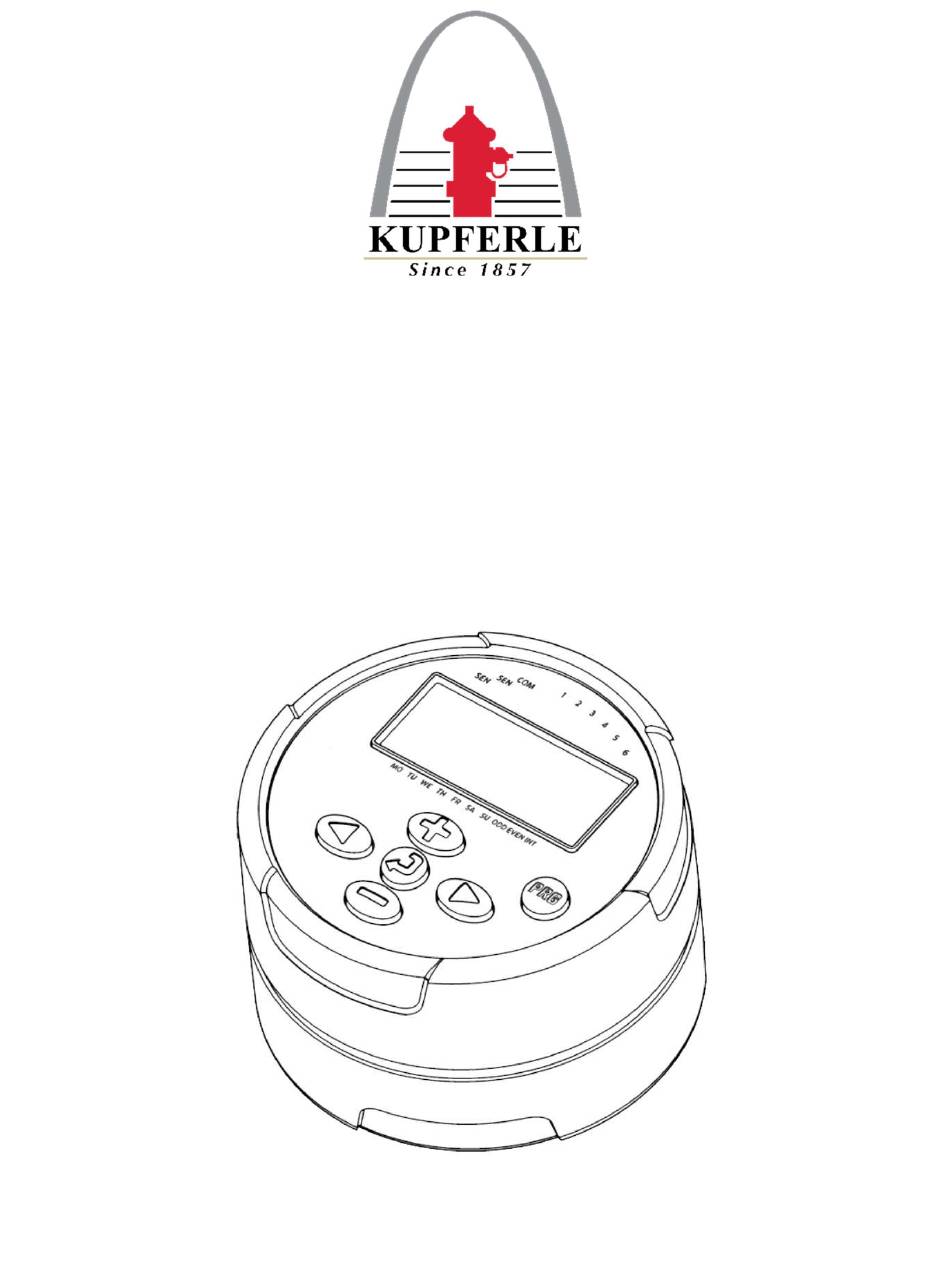

- Page 1 Node 100 Controller Programming Guide For Eclipse Automatic Flushing Devices...
- Page 2 NODE CONTROLLER OVERVIEW Below is a list of each of the standard menu screens that will appear when navigating. To navigate between menus, press the menu button as mentioned on the previous page. ‘Home menu’ - current time, day and battery life indicator. Setting ‘current year, month, date, &...
- Page 3 ‘Odd or even days’ option 5. ‘Interval’ option ‘Seasonal adjustment’ menu – always leave at 100% “Off” Menu ‘Manual/test flush’ (this screen will only appear after right arrow is held down)
- Page 4 Setting the Date, Time, and Year Press the button to wake up the controller. Press the menu button to navigate between menus until the clock icon is displayed at the top right. the year will be flashing, press the button to change the year. Once the proper year is on screen, press the right arrow to proceed to set the month and date.
- Page 5 Programming your Flush times and Durations Step #1 – Setting flushing start times: Push the program menu button until the start times icon is displayed as shown directly above. Use the button to change the start time (the start times advance in 1 minute increments).
- Page 6 Step #2 – Setting the run time (flush duration) Press the menu button until the hourglass icon is displayed in the bottom right. The run time will be flashing. The program letter (A/B/C) will be shown here also. If this is the first time setting, start with the letter A.
- Page 7 Step 3: Selecting which days to flush: There are three different ways to select which days you want your unit to flush. The most common is to simply add which days of the week you want. You can also select odd/even/interval as your option.
- Page 8 Seasonal Adjustments and “Off” Menu “Seasonal adjustment” allows you to temporarily decrease the amount of flushing you are doing without adjusting the scheduled programs. The controller will default to 100% and can be adjusted by using the buttons. This field will adjust in 10% increments.
- Page 9 Run a Manual Test Flush To run a manual test flush to ensure the controller is working properly, you have two options. Option 1 – Press and hold the right arrow button down for 2 seconds to initiate a test flush. Holding the right arrow button will start a flush that mimics the first flush duration you have entered (i.e., A program is set to 10 minutes, this will start a 10 minute test flush).
