Holis JSE04-B02-OI01 Quick Start Manual

Quick Start Guide
(8200-1994-03_C0)

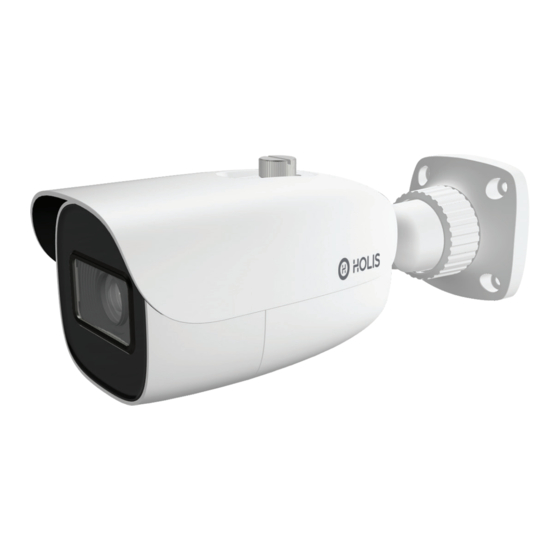

Tyco Holis JSE Economical 4MP Bullet Camera
(Product Code: JSE04-B02-OI01)

In the box


1 x Camera

1 x Quick Start Guide

4 x PA 4x25mm tapping screws

1 x PWM 3x5mm machine screw

1 x Mounting template

1 x Silicone plug

4 x 6x25mm Plastic screw anchors

Installation tools


Screwdriver

Drill

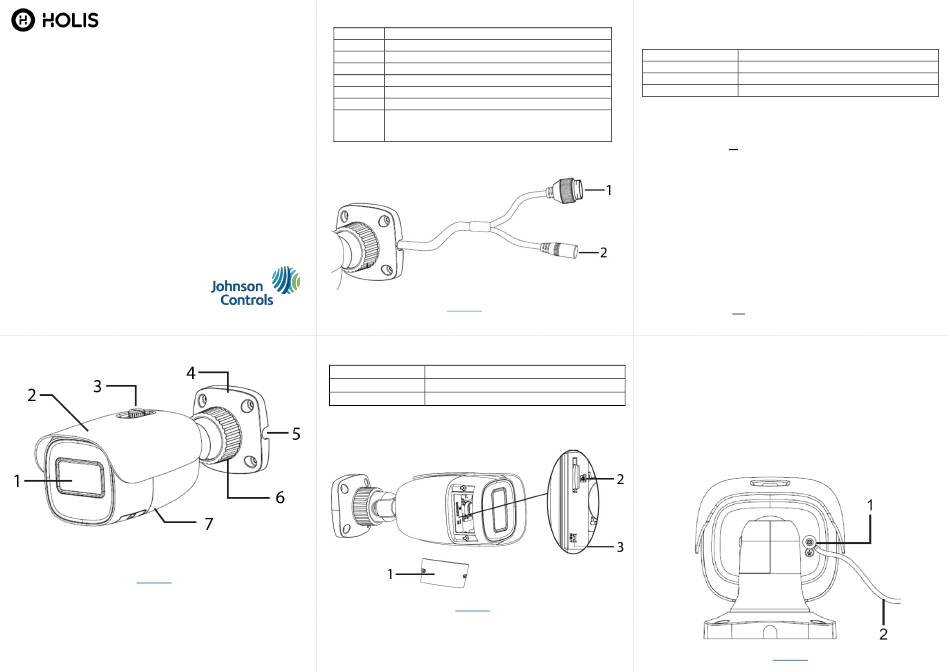

Figure 1: Camera parts
Figure 1

Table 1: Camera part descriptions

Security
Number
1 Camera lens
2 Sun shield cover
3 Sun shield cover adjustment thumb-screw
4 Camera base
5 Cable side entry slot
6 Camera fixing ring
Camera body (Buttons and SD card slot are located
7 on the underside of the camera). Note: You need to
remove the cover to access them.
Figure 2: Cable connections

Table 2: Cable connection descriptions

Number
1
2
Figure 3: Micro SD card slot and reset button
Camera part description
Figure 2
Cable connection description
Ethernet Connector and also supports PoE
Power Connector (12V DC @ 1A)
Figure 3
Figure 3: Micro SD card slot and reset button (continued)
Note: Remove the two screws on the camera cover (1) (Figure 3) to
access the buttons. Securely attach the cover when finished.

Table 3: Micro SD card slot and reset button descriptions

Number Camera button description
1 Camera button cover
2 Micro SD Card Slot
3 Reset button (Hold for more than 3 seconds)
Quick reference
 Default IP: 192.168.1.168 (DHCP enabled).
 Default Username / Password: admin / admin
 Power: 12VDC or PoE 48VDC
 Use Internet Explorer 11 web browser.

Mounting the camera to a wall or ceiling

Ensure that the wall or ceiling is strong enough to withstand three times
the weight of the camera.
1. Place the mounting template on the surface that you want to attach
the camera.
2. On the surface drill four Ø 4.6mm holes and cut out a cable hole as
per the markings identified on the mounting template.
3. Securely place the four screw anchors into the four holes.
4. Place the camera cable through the cable hole on the mounting
surface.
OR
Use the cable side entry hole slot (5) (Figure 1) on the camera
base.
5. Note: If you are not using the cable side entry slot ensure that the
cable side entry plug is inserted into the slot on the camera base.
Mounting the camera to a wall or ceiling (continued)
6. Hold the camera base (4) (Figure 1) up to the mounting template
and align the four holes on the camera base with the four holes on
the mounting surface.
7. Insert the four screws into the four holes on the camera base and
securely attach the camera to the mounting surface.
Note: The camera must be connected to earth ground.
8. Attach a ring-type terminal to the end of the ground wire (2) (Figure
4) (not provided). Insert the machine screw through the ring
terminal and attach to the camera (1) (Figure 4).
Figure 4: Earth wire connection
Figure 4
