Summary of Contents for iBell Tools EC16-18

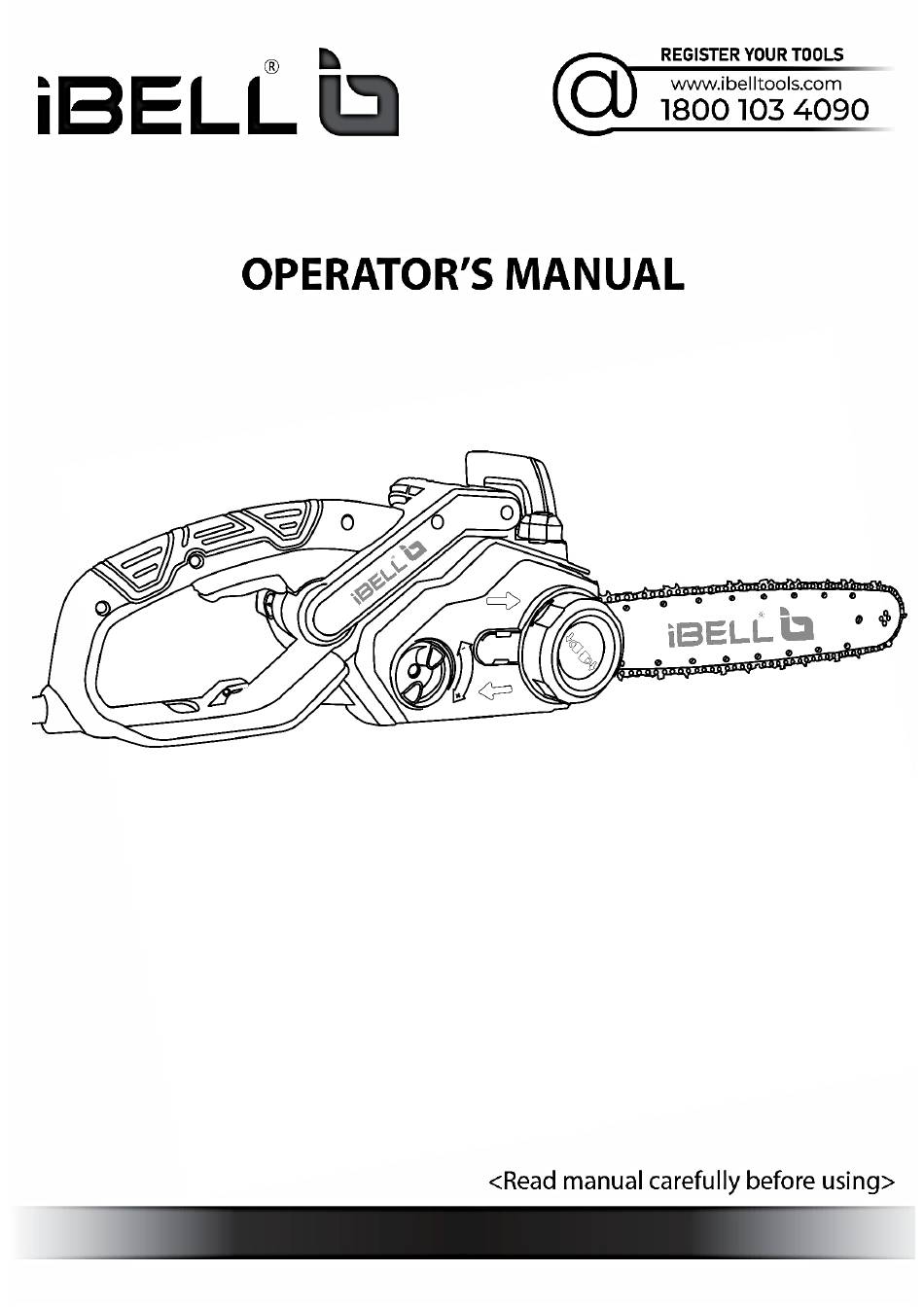

- Page 1 ELECTRIC CHAIN SAW EC16-18...
-
Page 3: Table Of Contents
Follow the link to watch a detailed explanation on the tool or watch it on our YouTube channel IBELL TOOLS INDIA. TABLE OF CONTENTS 1. GENERAL POWER TOOL SAFETY WARNINGS __________ 2. CHAIN SAW SAFETY WARNINGS _______________________ 3. INTENDED USE ________________________________________ 4. -
Page 4: General Power Tool Safety Warnings
Keep it away from heat, oil, sharp edges or moving parts. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. IBL EC16-18... - Page 5 When servicing a power tool, use only identical replacement parts. Follow instructions in the maintenance section of this manual. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of shock or injury. IBL EC16-18...
- Page 6 Injuries and damage to property due to broken cutting attachments or the sudden impact of hidden objects during use. Misuse or failure to follow the safety rules stated in WARNING! this instruction manual may cause serious personal injury. IBL EC16-18...
-
Page 7: Chain Saw Safety Warnings
Always use dust mask. Wear ear protectors. Exposure to noise can cause hearing loss. Wear safety goggles or eye protection when using this power tool. For additional protection against electric shock, be sure to wear rubber gloves. IBL EC16-18... -
Page 8: Intended Use
Rated voltage : 1800W Rated Input Power : 405mm Guide Bar Length : 9.5mm Saw Chain Pitch : 1.3mm Saw Chain Gauge : 7.83m/s Chain Speed Vibration Level : 5.147m/s Oil Tank Capacity : 90ml Net Weight : 5.45kg IBL EC16-18... -
Page 9: Product Overview
The product must be fully assembled before WARNING! operation! Do not use a product that is only partly assembled or assembled with damaged parts! Follow the assembly instructions step-by-step and use the pictures provided as a visual guide to easily assemble the product! IBL EC16-18... -
Page 10: Product Functions And Assembly
(should be adjusted after every 30 minutes of use). Ensure the chainsaw is turned OFF & disconnected WARNING! from the power supply before performing any assembly. IBL EC16-18... - Page 11 Refit the cap and clean any oil spillage. To check lubricating system, switch on the chainsaw and hold it with the guide bar and chain above some paper like a newspaper. A steadily increasing stain caused by oil spray shows the lubricating system is working. IBL EC16-18...
-
Page 12: General Operation
Position your body to the left of the chainsaw so if it kicks back uncontrollably, it goes over your right shoulder, never stand in the cutting line of the saw. Only operate the device after sufficient training. IBL EC16-18... - Page 13 Be alert to the fact that the log may roll over. When working on a slope, always stand on the up-hill side of the log. Avoid cutting into the ground as this will quickly dull the chain. IBL EC16-18...
- Page 14 WOOD UNDER TENSION Tree trunks can be under great tension when lying on the ground, and they can spring dangerously when cut. Always cut the side that is under compression first, and then the side under tension. IBL EC16-18...
- Page 15 Periodically trim the sides of rails using a flat file. If not done in the long run, the edges might break away and damage the bar. If the top rail of the guide bar is uneven, use a flat file to restore them to the same height. IBL EC16-18...
- Page 16 Store the chainsaw in a safe and dry place out of the reach of children with the chain guard fitted, on a flat surface. IBL EC16-18...
-
Page 17: Troubleshooting
4.3 Oil hole blocked on 4.3 Clean oil hole and chain bar. clear the groove around the edge of the chain bar. All further inspection and repair work must be WARNING! performed by an authorised service centre or a qualified technician! IBL EC16-18... - Page 18 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. Do not dispose this product by normal household waste, but take it to a collection point and recycling of electrical and electronic equipment.
