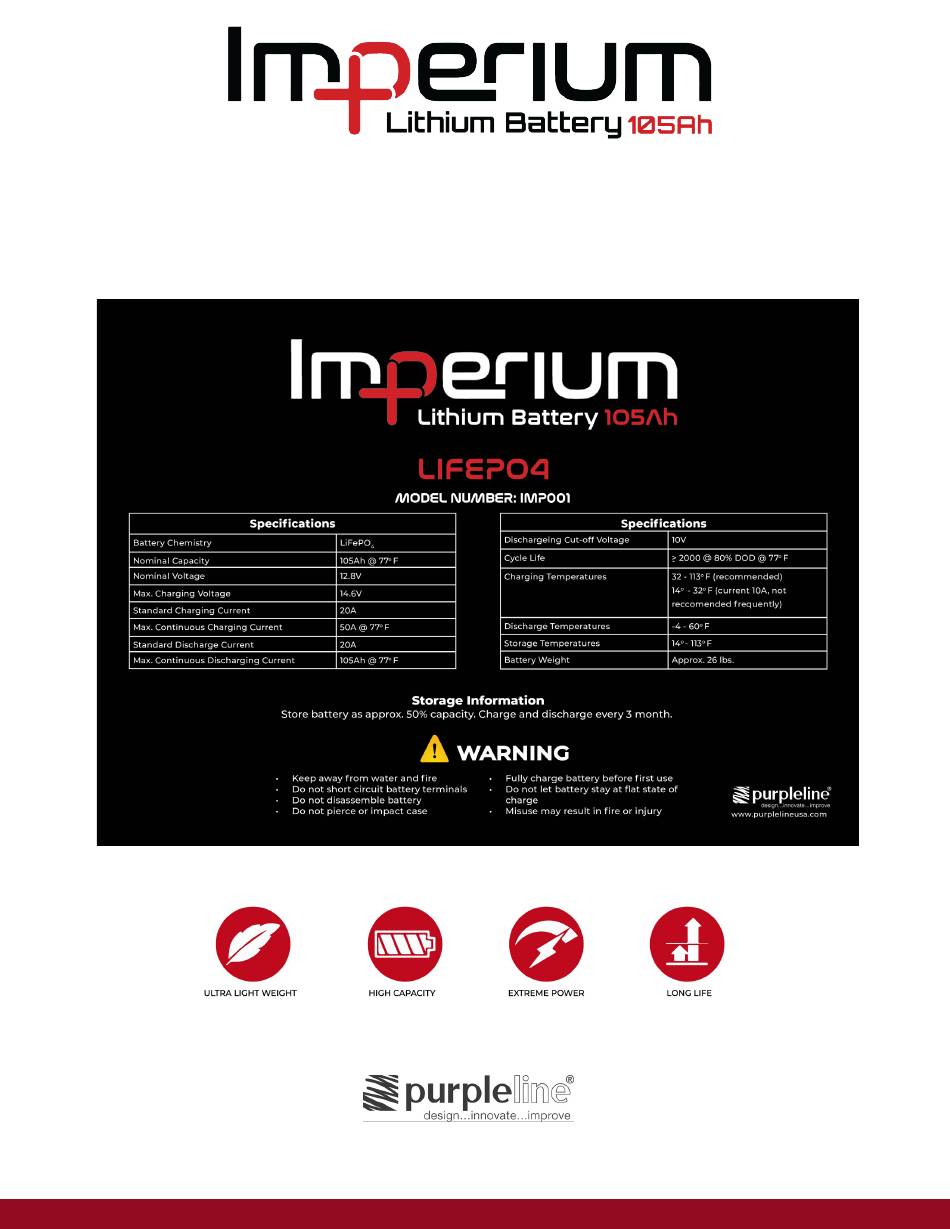

- Page 1 2022 USER MANUAL USER MANUAL www.purplelineusa.com | info@purplelineusa.com | 925.215.7315 1850 Loveridge Rd., Pittsburg, CA 94565...
- Page 2 JANUARY 2022 | PURPLE LINE USA Welcome! Thank you for purchasing the high quality Imperium Lithium battery from Purple Line! This product has been developed using the most modern technologies and quality systems. We assure you that we make every effort to ensure trouble-free operation so that you are happy with your purchase.
-
Page 3: Table Of Contents
USER MANUAL IMPERIUM LITHIUM BATTERY 105AH LIFE PO4 JANUARY 2022 | PURPLE LINE USA TABLE OF CONTENTS 1. Product description ..............................4 2. Safety instructions ..............................6 2.1 Safety instructions statement ......................6 2.2 Safety instructions ........................... 6 2.3 Transport alert ............................8 3. -
Page 4: Product Description
USER MANUAL IMPERIUM LITHIUM BATTERY 105AH LIFE PO4 JANUARY 2022 | PURPLE LINE USA PRODUCT DESCRIPTION PRODUCT DESCRIPTION MODEL NUMBER: IMP001 MODEL NUMBER: IMP001 The Imperium Lithium 105Ah is a Lithium-iron phosphate (LiFePO4) battery. This is the safest of the most important lithium-ion battery types. Besides safety, the LiFePO4 technology is charac- terized by: •... - Page 5 USER MANUAL IMPERIUM LITHIUM BATTERY 105AH LIFE PO4 JANUARY 2022 | PURPLE LINE USA • Too high temperature - The BMS will turn off the battery if the system temperature becomes too high. • Too low temperature - The BMS prevents the battery from being charged at temperatures below -10°C.
-
Page 6: Safety Instructions
USER MANUAL IMPERIUM LITHIUM BATTERY 105AH LIFE PO4 JANUARY 2022 | PURPLE LINE USA SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS STATEMENT The safety instructions help you to avoid hazards when performing actions. The safety instructions are divided into the following categories: WARNING! Means that the act in question is dangerous and should be prepared before proceeding. - Page 7 USER MANUAL IMPERIUM LITHIUM BATTERY 105AH LIFE PO4 JANUARY 2022 | PURPLE LINE USA • Never connect the battery pack in series or in parallel with any other type of battery pack. • Do not use the battery as a starter battery.
-
Page 8: Transport Alert
USER MANUAL IMPERIUM LITHIUM BATTERY 105AH LIFE PO4 JANUARY 2022 | PURPLE LINE USA TRANSPORT ALERT • The Li-ion battery must be transported in its original packaging. • Our battery has been tested according to the UN handbook for tests and criteria, part III, paragraph 38.3 (ST/SG/AC.10/11/Rev.5). -
Page 9: Description And Operation
USER MANUAL IMPERIUM LITHIUM BATTERY 105AH LIFE PO4 JANUARY 2022 | PURPLE LINE USA DESCRIPTION AND OPERATION DESCRIPTION AND OPERATION 3.2 CHARGING When the battery runs out, it must be recharged. Connect the charger to the battery and then plug it into the 230V socket. - Page 10 USER MANUAL IMPERIUM LITHIUM BATTERY 105AH LIFE PO4 JANUARY 2022 | PURPLE LINE USA 3.3 IMPERIUM LITHIUM APP Via the Apple store (suitable for iPhone 4S with IOS 6 or higher) or the Google Play store (suitable for An- droid 4.3 or higher) you can download the Imperium Lithium App and use it to read the status and health of your battery.
- Page 11 USER MANUAL IMPERIUM LITHIUM BATTERY 105AH LIFE PO4 JANUARY 2022 | PURPLE LINE USA SOC means “State of Charge” or the state of charge of the battery. The voltage and capacity of the battery are listed below. STATUS” shows whether the battery is charging or discharging or whether the battery is in standby mode.
- Page 12 USER MANUAL IMPERIUM LITHIUM BATTERY 105AH LIFE PO4 JANUARY 2022 | PURPLE LINE USA The UITC info shows 2 “meters”, on the left the battery voltage and on the right the current. This can be the charging current or the current drawn from the battery. If the battery is connected to a charger but at the same time power is requested by users, the resulting current is displayed.
- Page 13 USER MANUAL IMPERIUM LITHIUM BATTERY 105AH LIFE PO4 JANUARY 2022 | PURPLE LINE USA SYSTEM INFO TAB: System info contains messages about events that occurred during the charging or discharge process. This refers to the following events: • Short circuit •...
-
Page 14: Powerxcharger Xc3 (Optional)
USER MANUAL IMPERIUM LITHIUM BATTERY 105AH LIFE PO4 JANUARY 2022 | PURPLE LINE USA 3.4 POWERXCHARGER XC3 (OPTIONAL) To charge the battery while driving, the PowerXCharger XC3 is available as an option. This converts the charging voltage of the car alternator into the right charging voltage for the Imperium Lithum battery. - Page 15 USER MANUAL IMPERIUM LITHIUM BATTERY 105AH LIFE PO4 JANUARY 2022 | PURPLE LINE USA • After unpacking, check all parts for possible damage. • Fully charge the battery before first use. • Mount the battery pack using the supplied mounting plate and Velcro fastener at the location of your choice in the camper.
- Page 16 USER MANUAL IMPERIUM LITHIUM BATTERY 105AH LIFE PO4 JANUARY 2022 | PURPLE LINE USA CAREFUL! If bolts that are too long are used, the connections will not get stuck! This leads to large contact resistances and can cause the battery or equipment to spark or switch off.
- Page 17 USER MANUAL IMPERIUM LITHIUM BATTERY 105AH LIFE PO4 JANUARY 2022 | PURPLE LINE USA CAREFUL! Observe the polarity of the battery and avoid short circuits! Equipment whose polarity is incor- rectly connected can be irreparably damaged. • Never connect the battery in parallel to any other type of battery, including the wiring from the car.
-
Page 18: Decommissioning
USER MANUAL IMPERIUM LITHIUM BATTERY 105AH LIFE PO4 JANUARY 2022 | PURPLE LINE USA DECOMMISSIONING DECOMMISSIONING 4.1 DECOMMISSIONING • Lithium-ion batteries and devices containing these batteries should NOT go in household garbage or recycling bins. • Lithium-ion batteries SHOULD be taken to separate recycling or household hazardous waste collection points. -
Page 19: Technical Specifications
USER MANUAL IMPERIUM LITHIUM BATTERY 105AH LIFE PO4 JANUARY 2022 | PURPLE LINE USA TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION 5.2 TECHNICAL DATA FAULTS AND REPAIRS FAULTS AND REPAIRS 6.1 FAULT FINDING TABLE PG 19/22 www.purplelineusa.com... -
Page 20: Liability
USER MANUAL IMPERIUM LITHIUM BATTERY 105AH LIFE PO4 JANUARY 2022 | PURPLE LINE USA LIABILITY LIABILITY 8.1 LIABILITY Purple Line cannot be held liable for: • Damage resulting from the use of the Imperium Lithium Battery; • Possible errors in the supplied manual and their consequences;... - Page 21 USER MANUAL IMPERIUM LITHIUM BATTERY 105AH LIFE PO4 JANUARY 2022 | PURPLE LINE USA 2014-35-EU DIRECTIVE 2014/35 / EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 26 February 2014 on the harmoni- zation of the laws of the Member States concerning the making available on the market of electrical equipment for use within specified voltage limits.
- Page 22 USER MANUAL IMPERIUM LITHIUM BATTERY 105AH LIFE PO4 JANUARY 2022 | PURPLE LINE USA and which the following natural or legal person established in the Community is authorized to compile the technical file: Name and position : Purple Line LLC Address : 1850 LOVERIDGE RD., PITTSBURG, CA 94565...
