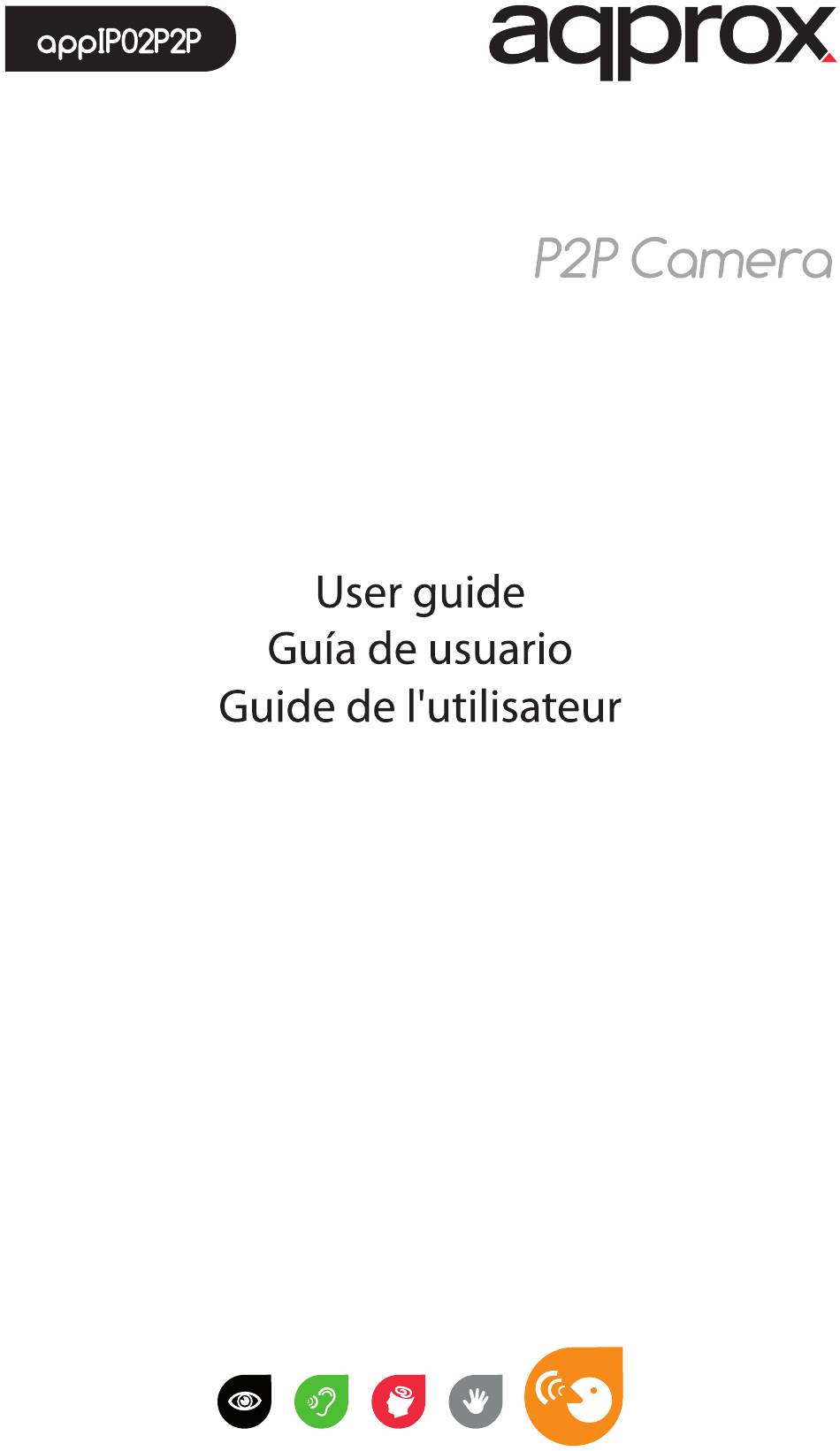

- Page 1 Wireless HD IP Rev. 01...

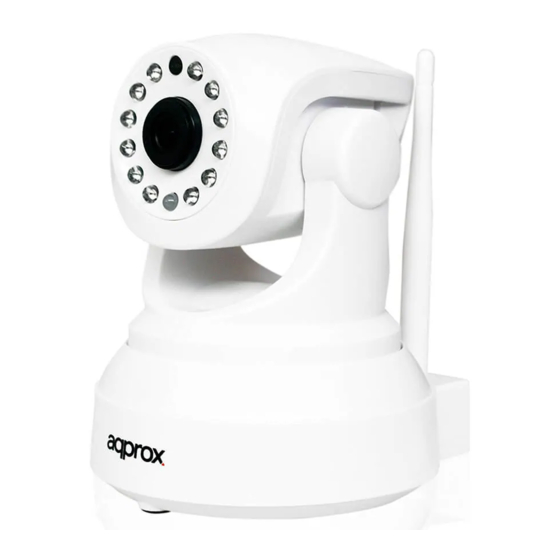

- Page 3 Introduction and product description Thank you for choosing the IP HD PNP camera APPIP02P2P . The APPIP02P2P has been developed with HD resolution to monitor a private home, office, shop or any other room both day and night in excellent quality. Its PnP technology enables automatic installation without configuring your router to access the camera externally.
- Page 4 Make sure your package contains the elements described above. If you find something is missing or damaged, please contact your dealer. System Requirements · Router with a LAN connection available (for installation) · Computer or Smartphone · Electrical outlet Hardware installation for RJ-45 connection For its first installation connect the camera to the router as shown in the following figure.
- Page 5 Installation and configuration for Smartphone Software EYECLOUD Access to Google Play Store from Android or Apple Store on iPhone, download and install it on your smartphone. You can see the application icon in the list of applications on your smartphone, run it. The first thing you need is to create an account and register.
- Page 6 EYECLOUD configuration for ONE KEY WIFI CONFIGURATION Connect your phone to a Wi-Fi which will connect the network camera. Open the EYECLOUD application, click the + button in the top left corner, press the ONE WiFi Setup key, the list of WIFi access points available will come up, select the desired one and enter the Wi-Fi key, finally press OK.
- Page 7 Open the EYECLOUD application, click the + button at the upper left corner, press Scanning and scan the QR code on the back of the camera, the data will be entered automatically. Insert the password (default password) Default 888888. You can check the state (status) of the camera is on line, click on the camera and automatically displayed.
- Page 8 Software PC installation Insert the installation CD in your drive and double-click on the icon in My Computer or My PC, double-click in the drive where you placed the CD and run autorun.exe. Install the software IP Eye Cloud Client PC. Once installed you the IP camera icon appears Eye Cloud.
- Page 9 Click on Add devices and the next image appears. Click Find to locate the camera on your local network...
- Page 10 Select the found camera and press the OK button.
- Page 11 Press the Set button Wi-Fi if you want to establish a wireless connection. Click the Search button to search for wireless networks and enter the Wi-Fi password. Finally, the following message will appear if everything was set up correctly. Press the ok button to complete the configuration.
- Page 12 Enter the default password 888888. The following image will appear and press the Connect button...
- Page 13 You can view the image offered by the camera. Note: If you cannot find the camera in your Wi-Fi network, run the application included in the installation CD-find app, and set it in your network range.
- Page 14 Configuration via web interface Enter the ip camera in your web browser, followed by a colon and the port. Example: 192.168.1.17:82. For username type admin and password 888888. Run the icon according to your browser.
- Page 15 The web environment, in which has full access to all camera functions opens.. Technical support For more information on installing and configuring this product go to our website www.approx.es support section or write an email to soporte@approx.es.
- Page 16 Introducción y descripción del producto Gracias por elegir la Cámara IP HD P2P APPIP02P2P . La APPIP02P2P ha sido desarrollada con resolución HD para poder monitorizar un domicilio particular, oficina, tienda o cualquier otra estancia tanto de día como de noche en una calidad excelente.
- Page 17 Asegúrese de que su embalaje contiene los elementos descritos arriba. Si encuentra que falta algún elemento o está dañado, por favor, contacte con su distribuidor. Requisitos del Sistema · Router con una conexión LAN disponible (primera instalación) · Equipo informático o Smartphone ·...
- Page 18 Instalación y configuración Software Smartphone EYECLOUD Acceda a Google Play Store desde Android o Apple Store desde Iphone, descárguelo e instálelo en su smartphone. Podrá ver el icono de la aplicación en la lista de aplicaciones de su Smartphone, ejecútelo. Lo primero que deberá es crear una cuenta y registrarse.
- Page 19 Configuración EYECLOUD WIFI CONFIGURATION Conecte su teléfono a la red Wi-Fi donde se va a conectar la cámara. Abra la aplicación EYECLOUD, Pulse el botón + situado en la esquina superior izquierda, pulse el botón ONE key WiFi Setup, se le abrirá...
- Page 20 esquina superior izquierda, pulse en el botón Scanning y escanee el código QR de la parte trasera de la cámara, los datos serán introducidos automáticamente. Inserte el password (contraseña por defecto) por defecto 888888. Podrá comprobar que el estado (status) de la cámara es on line, pulse sobre la cámara y se visualizará...
