FIRESTORM
PYRO TRIGGER
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PYRO TRIGGER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for fireStorm PYRO TRIGGER

Summary of Contents for fireStorm PYRO TRIGGER

  • Page 1 FIRESTORM PYRO TRIGGER USER GUIDE...

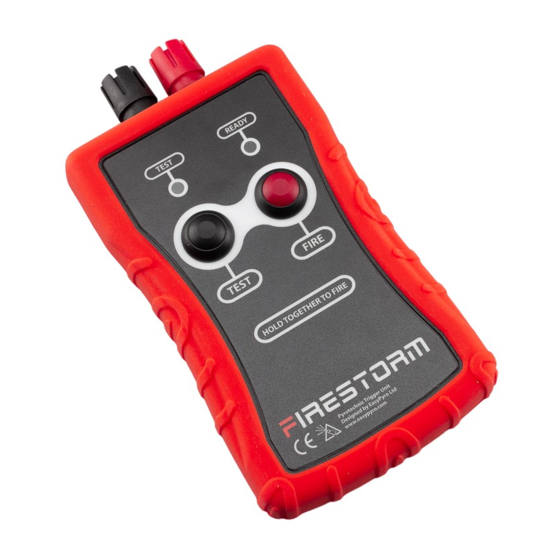

  • Page 2 Continuity Test Current 6 mA DESCRIPTION The FireStorm Pyrotechnic Trigger Unit is a single shot firing device for triggering pyrotechnics and SFX such as low powered solenoid valves. Please familiarise yourself with the operation of the unit before use and adhere to all best practice.
  • Page 3 OPERATION 1. Connect igniter to red and black terminals. Ensure wires do not touch. This can cause a short and prevent firing. 2. Press TEST button. TEST LED will illuminate red if there is continuity around the circuit. Note that TEST function only checks for open / closed circuit.
