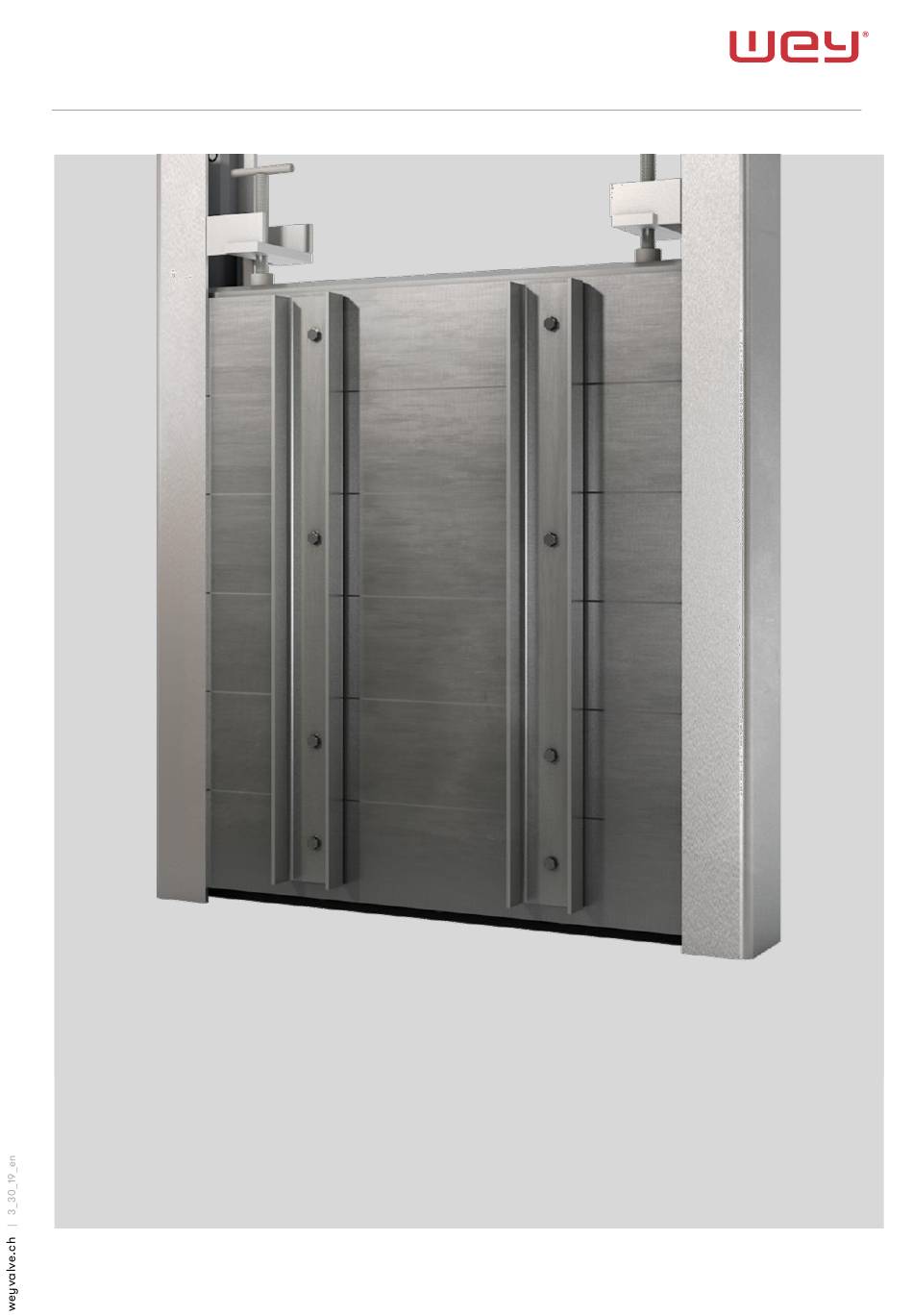

- Page 1 WEY HAND STOG / STOP LOG / STOP GATE Instruction manual 3.30.19 A S I STAG B RAND 1 / 7...
- Page 2 WEY HAND STOG / STOP LOG / STOP GATE | Instruction manual General Safety Designated service Transportation, Storage Transportation Storage Installation Preparation before installation Mounting aids Hand Stop, Stop Log, Stop Gate with angle frame Hand Stop, Stop Log, Stop Gate with anchor bolts for embedding...
- Page 3 Designated service Wey® Hand Stop, Wey® Stop Log und Wey® Stop Gate are frameless valves for channel installations. They are suitable for shutting off inlets and outlets of channels, pits and basins for water and wastewater. The technical application limits referred to in the relevant project data documentation and this m aintenance manual must be observed.
- Page 4 WEY HAND STOG / STOP LOG / STOP GATE | Instruction manual Fig. 1 Fig. 2 Larger deviations must be corrected on site prior to mounting, as follows: a) by grinding, removal, equalizing of uneven surface; b) by applying concrete filler according to requirements (tightness, strength) .
- Page 5 WEY HAND STOG / STOP LOG / STOP GATE | Instruction manual Fig. 3 - Drill and set remaining dowels for all clamps and also on the transverse seal, if applicable. - Prior to final fixation, pull frame slightly away from the wall in order to place two rows of sealant (according supplier's instructions) behind the frame and transverse seal up to the max.
- Page 6 WEY HAND STOG / STOP LOG / STOP GATE | Instruction manual Fig. 6 Hand Stop, Stop Log, Stop Gate with anchor bolts for embedding Mounting and embedding work shall take place with gate in completely closed position only. Procedure: - Depending on size and weight of Water Control Gate, 2-3 dowels per side should be set into the recess and bolts be inserted (Fig.7).
- Page 7 WEY HAND STOG / STOP LOG / STOP GATE | Instruction manual Commissioning General measures Before taking the equipment into service, all function relevant parts shall be thoroughly cleaned . Function test Before commissioning a function test must be performed.
