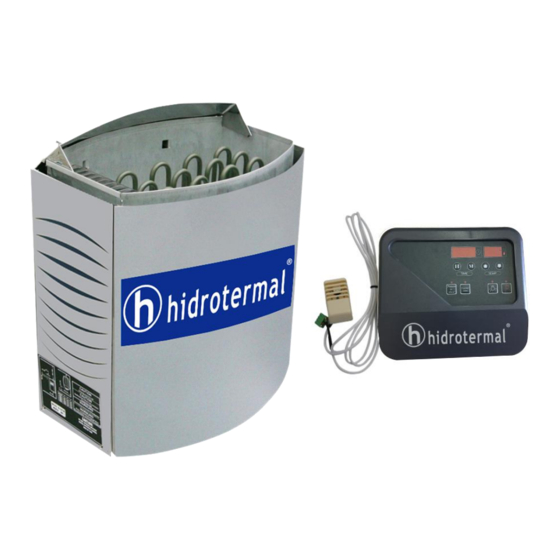

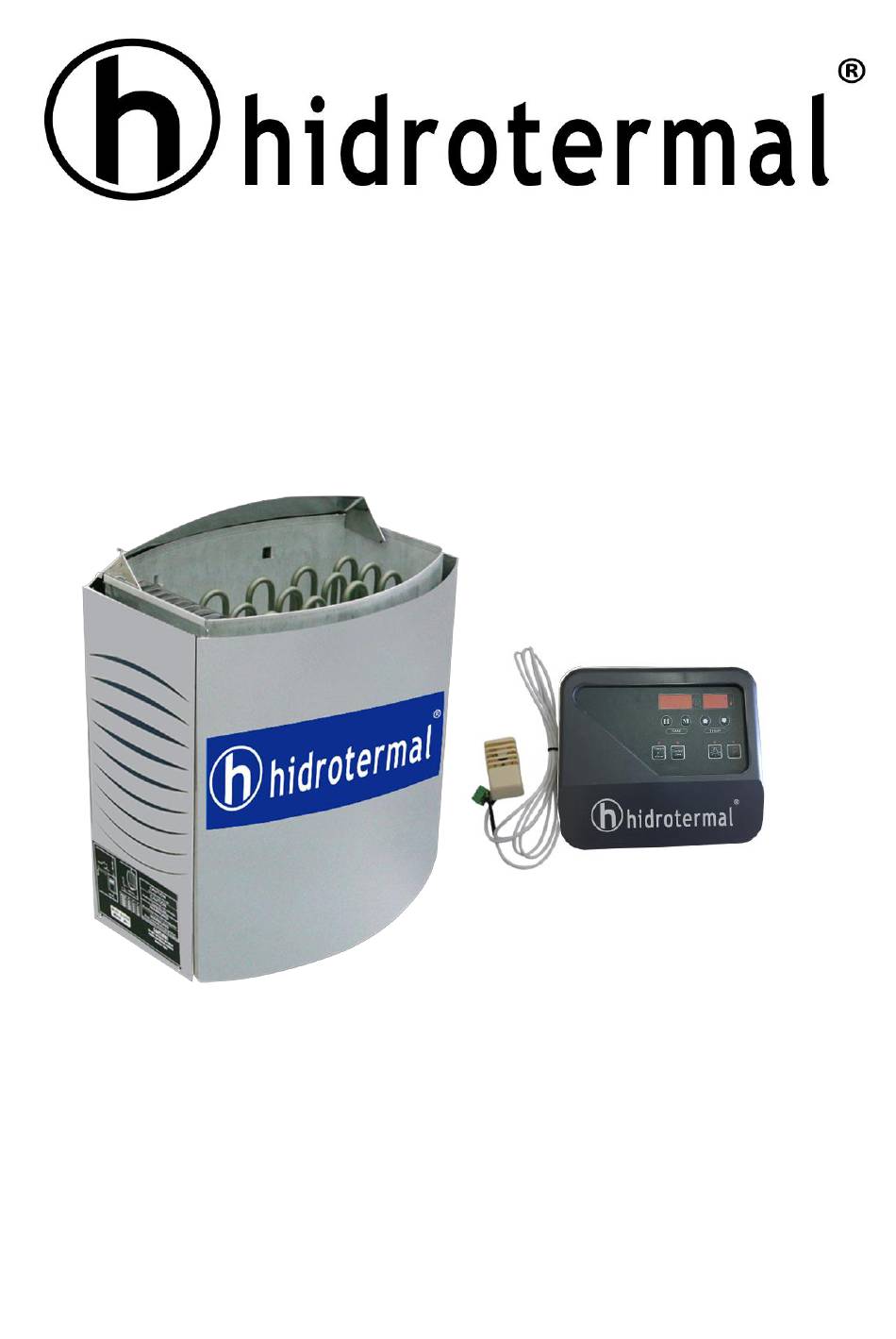

- Page 1 SAUNA HEATER With Digital Display External Controller USER MANUAL...
- Page 2 Product Not Including Sauna Stone Height Min.mm Min. mm Min. mm Model Power Min. Max. Hidro-HX45B 4.5 kw Hidro-HX60B 6.0 kw Hidro-HX80B 8.0 kw Hidro-HX90B 9.0 kw Table 1 2. Installation Install the sauna heater onto the wall with the screw provided in the heater, according to the minimum safety distances and volumes indicated in table 1 and figure 1, or on the plate of the heater.
- Page 3 5. Usage of heater operative mode switch and time/temp control A. Proofread time: Press H to adjust hour. After several blinking, it will confirm automatically. The same as M to adjust minutes. B. Power-on by alarm: ( at most 24 hours) Pressing prepare to place, then pressing H, M button to set time.
- Page 4 10. Put sauna stone After installing the sauna heater and controller, put appropriate sauna stone (10~15kg) on heater. Notice: It's high temperature inside heater, so must use superior sauna stone. The poor heat resistant sauna stone will crack after heating and watering and damage the sauna heater. Or to be readily and block the heat circulate then damage the heater.
- Page 5 13. Error Code and Corresponding Error code Reason of error Remark Solution Alarm on the Circuit board is Alarm on the Circuit board is Need change the controller circuit damaged damaged board. The light in the sauna room The light in the sauna room Need change the light in the sauna is damaged.
