- Page 1 ZL01F Model: ZigBee -Combined Interface User Manual ZigBee Wireless COM Port Model: ZL01F 20120112...

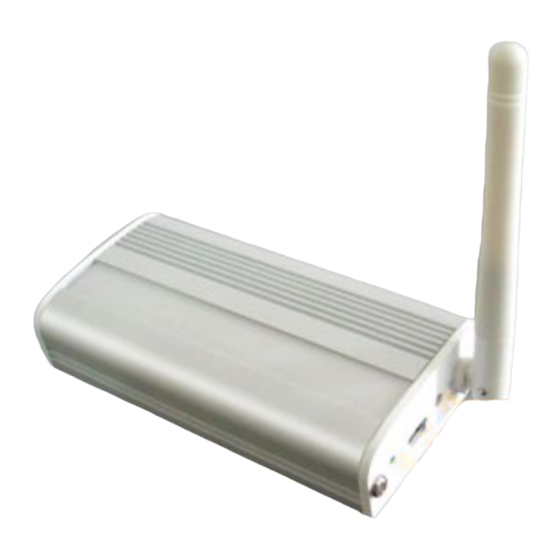

- Page 2 ZL01F ZigBee network status USB interface Permit join key RS232 interface Figure 1: ZL01F device...
-
Page 3: Product Specification
Introduction NETVOX ZL01F functions as a router in the ZigBee network. It is suitable for user who wants to communicate between two serial COM’s through ZigBee wireless network. Field application can be meter reading and data acquisition. To the serial COM terminals, this device should look as a straight through device and the wireless communication should be transparent to them. - Page 4 (3) Match with a consumption display device. Startup and Network Association tep 1. To allow ZL01F to function, it must first join to a ZigBee network. When it is given powered (refer to How to power up ZL01F device) it will automatically start searching for an existed network.
- Page 5 How to power up ZL01F device ZL01F is powered from the standard USB port normally found on PC. Simply take the USB cable and plug one end to the PC or USB power supply and the other end which is...
-
Page 6: Restore To Factory Setting
Permit other device to join ZL01F is featured to be a router in the network. It permits other devices, such as another ZL01F, to join the network. In normal operation, by default the router device ZL01F does not permit any device to join to the network to protect the network from unexpected or unauthorized join attempt. -
Page 7: Communication Configuration
DstAddr – 2 bytes –network address of the destination address. DstEndpoint – byte – the destination EndPoint. represents the application endpoint the data. Cluster ID – 2 byte –Netvox MIX ClusterID (0x0E60). SendDataPayload—var bytes—PayloadData Send From PC API (MAX=32bytes) Data request Response... - Page 8 COM port terminal of the targeted ZL01F. Once ZL01F receives the request, the COM port terminal attached to the ZL01F reads data in the SendDataPayload. To return the data requested to the request source, the...
- Page 9 Clusters of Home Automation for ZL01F Home Automation device feature is defined by the endpoint which contains functional clusters. Table 1 lists clusters for the endpoint of ZL01F Device ID: Combined Interface (0x0007) EndPoint: 0x0A Server side Client side Basic (0x0000)
- Page 10 0x0011 PhysicalEnvironment 8-bit 0x00 – Read/write 0x00 Enumeration 0xff 0x0012 DeviceEnabled Boolean 0x00 – Read/write 0x01 0x01 Attributes of the Identify Information Mandatory Identifier Name Type Range Access Default / Optional Unsigned 0x0000 – Read / 0x0000 IdentifyTime 16-bit 0x0000 0xffff write integer...
-
Page 11: Important Maintenance Instructions
Important Maintenance Instructions As the device is not water proof it is recommended to keep the device in a dry place. Liquid and heavy moisture contains minerals that may oxidize the electronic circuitry. In case of liquid spill, please leave the device to completely dry before storing or using. ...
