Summary of Contents for ETG ETG6900

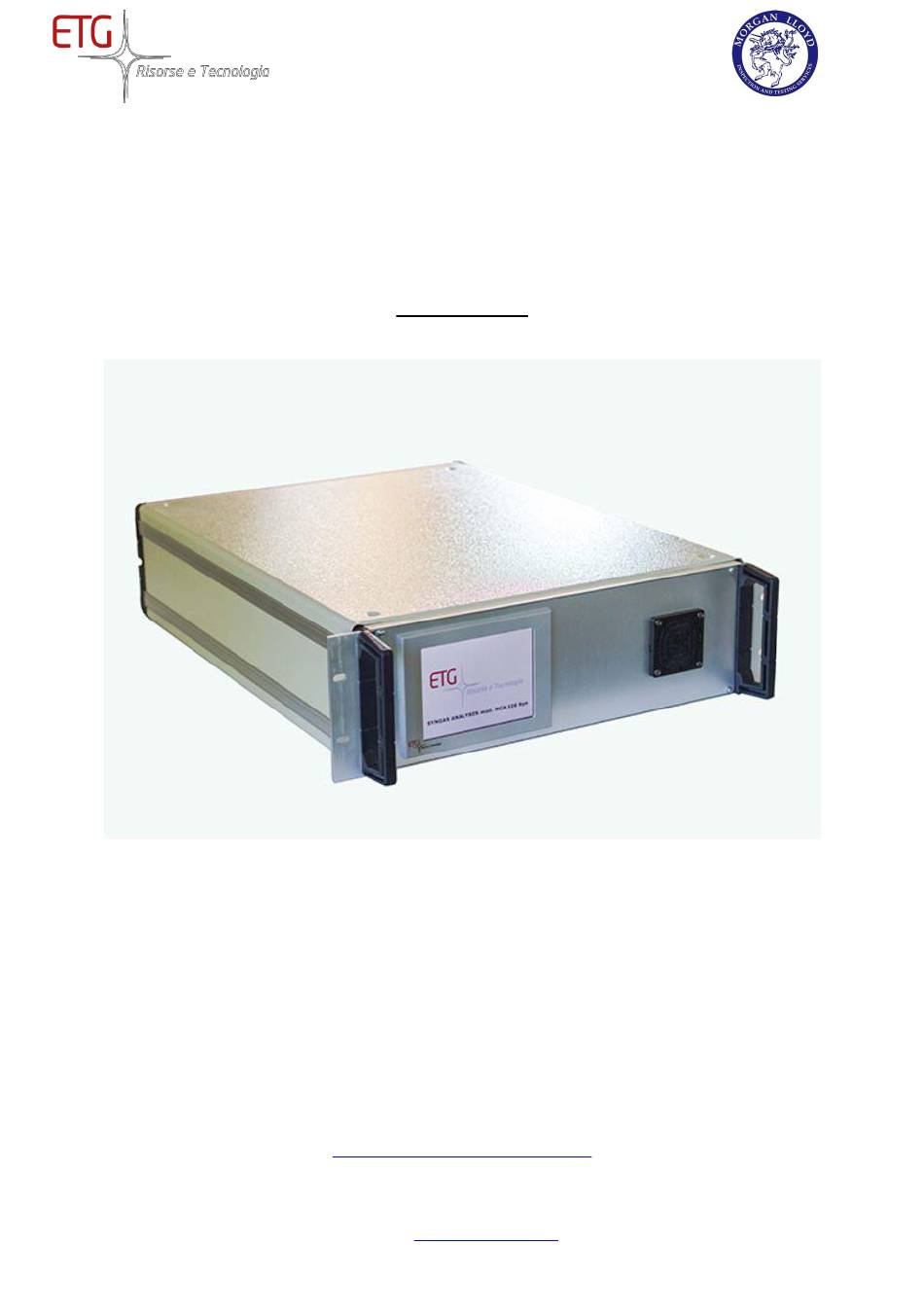

- Page 1 ETG 6900 NH3 LASER ANALYZER Fixed version USER INSTRUCTION MANUAL 세 일 국 제 무 역 서울특별시 구로구 공원로 81 3층 (구로동, 엘림빌딩) www.rbr.co.kr / www.eurotron.co.kr Tel.: 02-837-6974 Fax.: 02-859-2059 Email: info@eurotron.co.kr...
-
Page 2: Table Of Contents
Download ..........................13 Calibration ........................... 16 Zero Calibration........................17 Span Calibration ........................17 Maintenance ..........................18 ETG 6900Maintenance ......................18 ETG GAS LASER MAINTENANCE AND TROUBLE SHOOTING ............18 7.2.1 Warnings ........................18 7.2.2 Maintenance ......................... 19 7.2.3 ANNEX ........................... 20... - Page 3 Versione mark_2 This alert identifies hazards that should be considered to prevent damage to property and people and the analyzer itself. This symbol indicates information that is useful for the system...
-
Page 4: Overview
• Sample to be analyzed at room temperature • Suitable for 19" rack mounting • Minimum standard range 0-100 ppm • Maximum standard range 0-1000 ppm • Detection limit 4 ppm • Signal Output 4-20 mA 1.1 ETG 6900 1.1.1 block diagram of the whole system... -
Page 5: Block Diagram Of The Pneumatic Scheme
Versione mark_2 1.1.2 block diagram of the pneumatic scheme 1.1.3 Overview system... - Page 6 Versione mark_2...
-
Page 7: Installation
Thanks to the software developed by ETG, the user is able to carry out a high performance and versatile analysis in a few minutes. - Page 8 • Then exit with the cables from the hole provided in the ETG6900 case (1) • Make the pneumatic connections (2), (3) • Connect the LAN cable (4), connect to the network with DHCP. • Connect the power supply by connecting a cable to the rear socket of the ETG6900 (5)
-
Page 9: Measurement Graph
(“Last Measure”). In the same screen of the software indicates the presence of any alarms with a reference code (that’s need to be communicated to ETG for troubleshooting) Fig. Main screen If you click on "Reset Graph", the software, after asking for confirmation via a pop-up, start a new session of measurement to a new origin of the time axis. -
Page 10: Set Up The Analyser
Versione mark_2 4 Set up the analyser From the main screen (Fig. Main screen), tap on “Control” then, it will open the following screen: now click on “Settings”... - Page 11 Versione mark_2 Here you can change the parameters of data acquisition from the laser sensor. Setting Description Limits The sensor sends one value per second. If longer Integration Time measurement periods can be accepted, the integration time can be increased. This reduces the noise of the 1s <...
-
Page 12: Datalog And Download
Versione mark_2 5 Datalog and download 5.1 Datalog From “Settings” menu you can activate or deactivate the datalog. From the main screen (Fig. Main screen), tap on “Control” then, it will open the following screen: then click on “Log” and it will open the following screen:... -
Page 13: Download
Remember to deactivate the datalog before the download To download the data, proceed as follow: • if ETG6900 is connected to the network via DHCP, find its address using an appropriate program, it should be similar to 192.168.X.X • else use the address you set •... - Page 14 Versione mark_2 ➢ Double click on “FlashDisk” ➢ In the folder “Log” you’ll find the sub-folders named by the “log’s date”; select which you’re interested to and with a right-click of your mouse select “copy” To avoid risk of memory’s saturation, you can press “cut” to delete the files from internal storage. You can even select the entire “Log”...
- Page 15 Versione mark_2 ➢ Double click on “USB HD” ➢ Paste your log’s files pressing the right-click and selecting “Paste” ➢ Done. You can remove all USB devices connected.
-
Page 16: Calibration
Versione mark_2 6 Calibration From the main screen (Fig. Main screen), tap on “Calibration” then, it will open the following screen: The user has the ability to set the “offset” and the “span” of the instrument (remember, the laser sensor is already was pre-calibrated and does not require frequent calibration). -
Page 17: Zero Calibration
Versione mark_2 Insert the value of concentration reported on the cylinder. After entering and pressing "OK" the software will record this value and is ready to perform the calibration of the instrument. Be sure to insert the correct value of "Span Value" or calibration make it unreliable the instrument! 6.1 Zero Calibration The zero calibration is necessary to set the offset of the analyzer. -
Page 18: Maintenance
Any gas filtration and conditioning equipment must be checked and replaced periodically according to the manual specifications. If the measurement cell gets contaminated or damaged, please contact ETG RISORSE E TECNOLOGIA for cell maintenance and replacements. As technical training is necessary for this procedure, we recommend setting up a system exchange program. -
Page 19: Maintenance
Versione mark_2 ETG gas sensor modules contain metal and elastomeric sealing parts. The customer is responsible for checking the compatibility of those materials with the gas applied to the device. Not observing these recommendations might lead to personal injury or death. -
Page 20: Annex
Versione mark_2 7.2.3 ANNEX N° Message Action/Solution Detailed Explanation Unexpected error /watchdog) Check Communication Check sensor connectivity Reboot (15 s) Contact Service End Of Life Soon Sensor will no longer work The sensor will soon be out of service Optical Head’s temperature Check for additional errors Check if ambient temperature is within out of range... - Page 21 2 hours check the - Check that the ambient heater power supply. If the problem temperature in the specified persists call ETG service. range Ambient version (A): - Turn off gas flow in case The sensor temperature is out of condensation could occur.
- Page 22 Versione mark_2 For any case don’t hesitate to contact us: 세 일 국 제 무 역 서울특별시 구로구 공원로 81 3층 (구로동, 엘림빌딩) Tel.: 02-837-6974 Fax.: 02-859-2059 e-mail : info@eurotron.co.kr www.rbr.co.kr / www.eurotron.co.kr...
