ALM-008 - 'Pip Slope'
ALM-008
'Pip Slope'
- Operation Manual -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pip Slope and is the answer not in the manual?

Questions and answers

Summary of Contents for ALM Pip Slope

  • Page 1 ALM-008 - ‘Pip Slope’ ALM-008 ‘Pip Slope’ - Operation Manual -...

  • Page 2: Table Of Contents

    Introduction .................... Technical Specifications ..................Core Operation ..................Panel Layout ......................General Usage ...................... Limited Warranty ..................Support ...................." 2...

  • Page 3: Introduction

    ALM-008 - ‘Pip Slope’ Introduction ‘Pip Slope’ is an envelope generator. It supports both Attack/Decay and Attack/ Sustain/Decay type functions with both direct and voltage control of Attack and Decay times. Envelopes can be automatically looped and the function curve type changed between exponential and linear.

  • Page 4: Core Operation

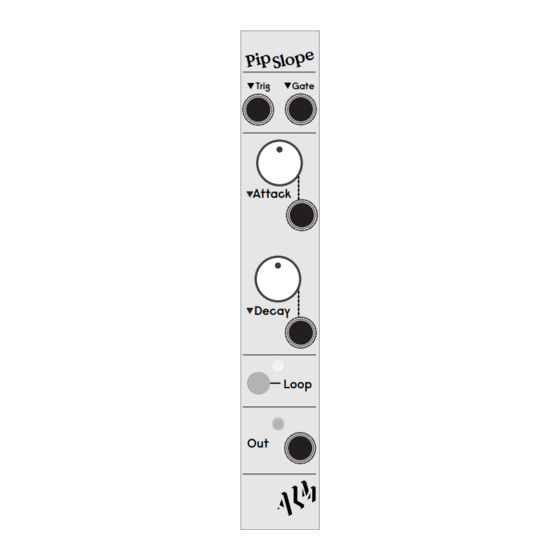

    ALM-008 - ‘Pip Slope’ Core Operation Panel Layout Trigger input for Gate input for Attack/Sustain/Decay Attack/Decay envelopes. envelopes. Knobs control attack and decay times from sub 1ms to ~100secs. Inputs respond to 0-5v control voltage. With cable patched associated knob then acts as attenuator on incoming control signal.

  • Page 5: General Usage

    ALM-008 - ‘Pip Slope’ General Usage A trigger or gate signal is patched into the top inputs of the module as to produce an envelope (between 0 and ~+5v) at the output. The red LED indicates the output level. A trigger input will produce an envelope that rises to ~5v and then instantly falls.

  • Page 6: Limited Warranty

    From the date of manufacture this device is guaranteed for a period of 2 years against any manufacturing or material defects. Any such defects will be repaired or replaced at the discretion of ALM. This does not apply to; • Physical damage arising for mistreating (i,e dropping, submerging etc).

  • Page 7: Support

    ALM-008 - ‘Pip Slope’ Support For the latest news, additional info, downloads and firmware updates please visit the ALM website at http://busycircuits.com and follow @busycircuits on twitter. Please send any questions or comments to info@busycircuits.com...
  • Page 8 ALM-008 - ‘Pip Slope’...
