Summary of Contents for Tyba TY-B-PDC

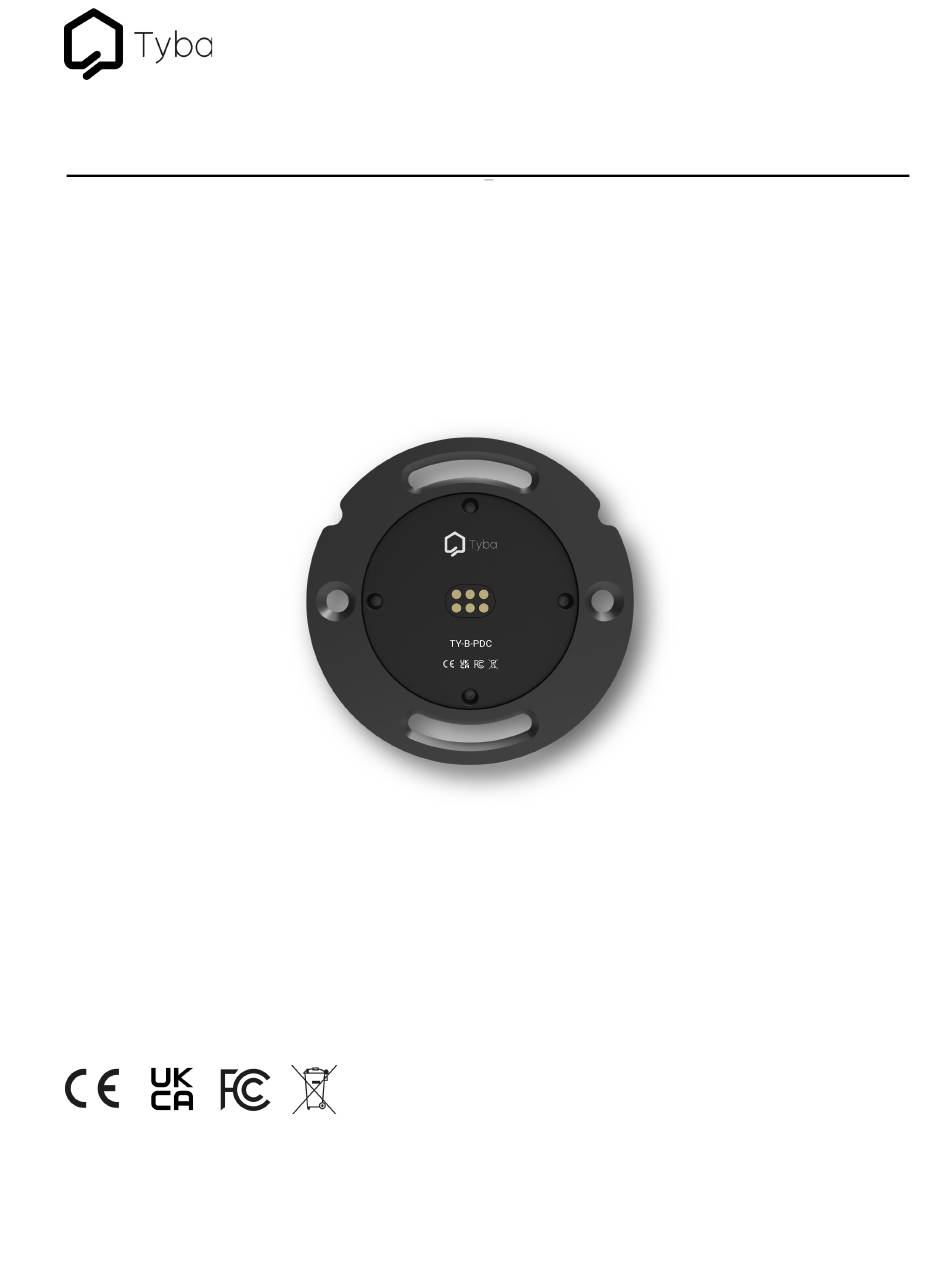

- Page 1 User Guide Bus Connector DC Power TY-B-PDC January 2021 Version 1.0...
- Page 2 Neither Tyba Home Limited nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information that is contained herein. If you have any suggestions for improvements or amendments or have found errors in this publication, please notify us.
- Page 3 Product Modifications Year Version Modifications 01/01/2021 Initial release Document Revisions Date Version Document Changes 01/01/2021 Initial draft...
-
Page 4: Table Of Contents
Table of Contents Preface ..............................................5 1.1 ..Description of the User ...................................... 5 1.2 ..Explanation of Safety Warnings ................................5 1.3 ..Retaining Instructions ......................................5 Product Description ......................................6 2.1 ..Intended Use and Reasonably Foreseeable Misuse ....................... 6 2.2 .. -
Page 5: Preface
Ensure that each person who uses the product has read these warnings and instructions and follows them. Tyba Home Limited is not liable for cases of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions. In such... -
Page 6: Product Description
Product Description Intended Use and Reasonably Foreseeable Misuse The DC Power Bus Connector is intended to operate as a power supply for Tyba products. The Bus Connector also provides a mounting interface to Tyba products. The DC Power Bus Connector is not intended to be used for any function outside those described. -
Page 7: Safety Instructions
Failure to do so can result in minor or moderate injury. How to Use the Product Safely When using this product, ensure all guidance is followed regarding technical specification, installation, setup and operation. Never use this product with anything other than Tyba genuine accessories. Graphical Symbols Symbol Meaning The CE Marking on the product is the manufacturer's declaration that the product complies. -
Page 8: Installation
Installation The product should only be installed by a qualified and trained person. Connections and Physical Details Front Description Bus Connector proprietary connector... -
Page 9: Connections And Physcical Details Rear
Connections and Physical Details Rear Description Power | 5-36VDC | 5W... -
Page 10: Bus Connector Wiring
Bus Connector Wiring The Bus Connector DC Power can be wired as a single device or in a loop with other devices. The maximum number of devices should be calculated according to the power supply and device consumption. Ensure the connections are correct before providing power. Always test the cable polarity. -
Page 11: Mounting A Bus Connector Using A Euro Back Box
Mounting a Bus Connector using a Euro back box Once the back box is installed, align the Bus Connector with the front of the back box and insert it so that the Bus Connector sits flat and square on the wall. Use the screw slots top and bottom to fix the Bus Connector to the back box. -
Page 12: Mounting A Bus Connector Using A Uk Back Box
Mounting a Bus Connector using a UK back box Once the back box is installed, insert the Bus Connector in to the Wall Plate. Align the Bus Connector and Wall Plate with the front of the back box and insert it so that the Bus Connector and Wall Plate sits flat and square on the wall. -
Page 13: Setup
Setup It is recommend that setup is carried out by a qualified and trained person. Powering On Once Bus Connector DC Power is powered it will be ready to provide power to a Tyba keypad. -
Page 14: Maintenance
Maintenance The product is maintenance free. Repair should only be carried out by a qualified and trained person.
