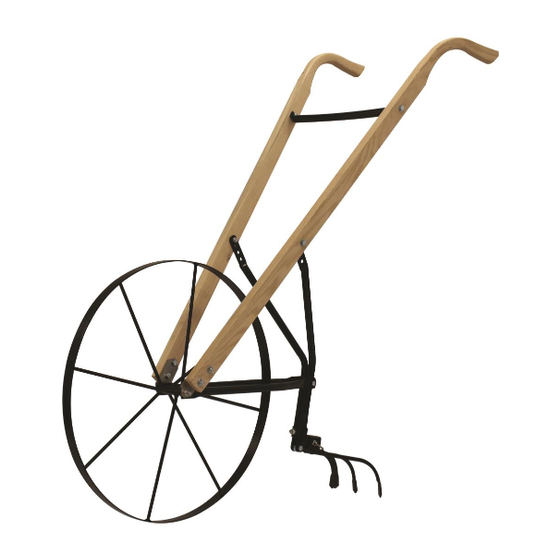

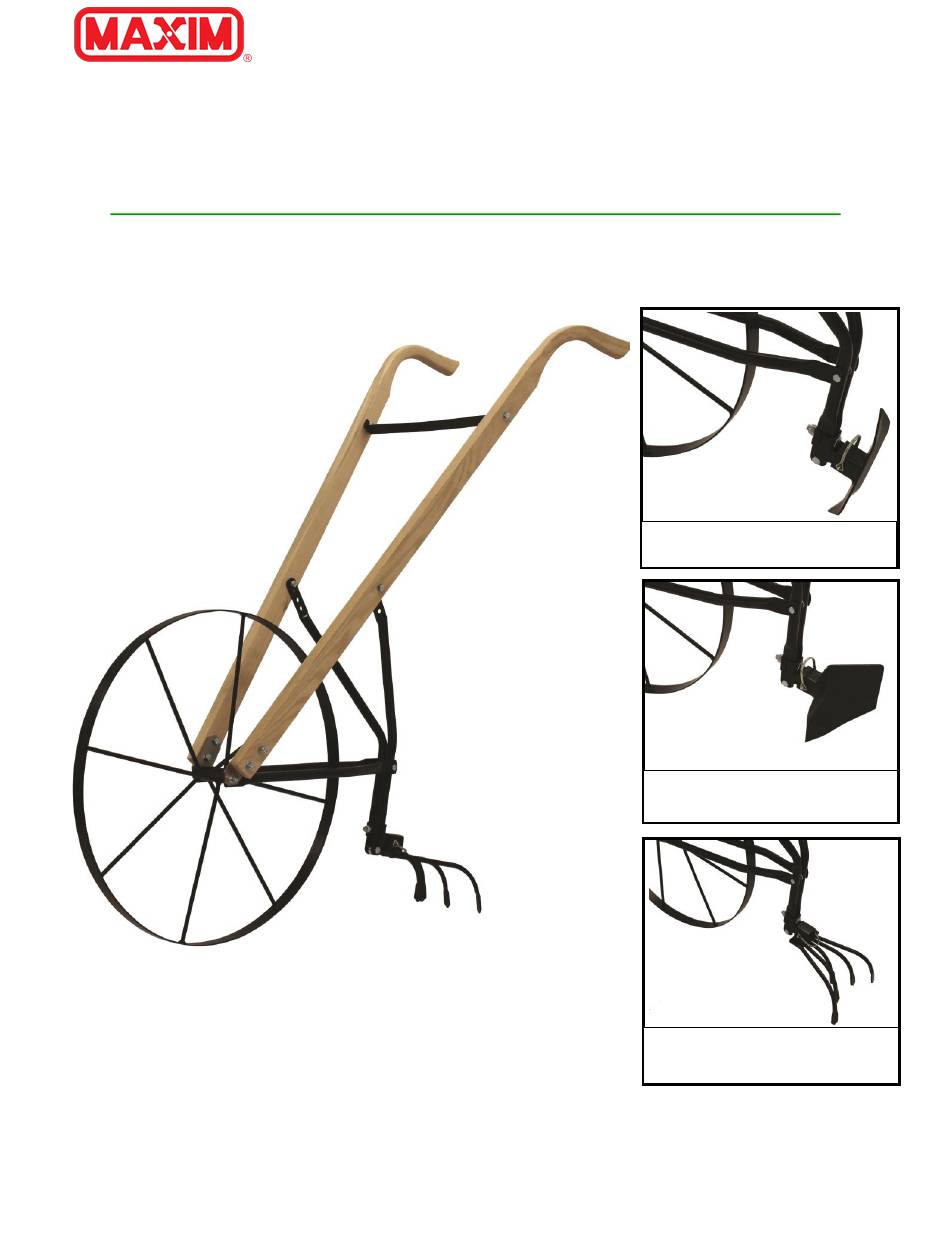

- Page 1 HWP-24WH Owner’s Manual MHWP-24WHB Furrow Plow Hilling Plow High Wheel Walk Behind Plow & Cultivator Cultivator tine 800-621-2789 HWP-24WH Rev B Page 1...
-
Page 2: Table Of Contents
HWP-24WH Table of Contents INTRODUCTION ................................3 1.1 ... Navigating This Manual ..............................3 1.2 ... Warnings and Safety Precautions ..........................3 1.3 ... Owner Assistance ................................3 1.4 ... Further Assistance................................4 SAFETY....................................4 2.1 ... General Safety Rules ................................4 UNPACKING AND ASSEMBLY OF PLOW....................... 5 3.1 ... -
Page 3: Introduction
HWP-24WH 1 INTRODUCTION Maxim’s Walk Behind High Wheel Plow features a long wooden handle, making it an easy to manually guide one of three easy to change garden tools through tilled soil. Switch out the garden tools and use the cultivator tool for weeding, single plow for planning or the hilling plow to help close soil around seeds or add soil around the root base of plants. -
Page 4: Further Assistance
HWP-24WH 1.4 Further Assistance Your dealer and all of us at Maxim want you to be pleased with your plow. Should you require further assistance or have questions regarding your plow, please contact your local dealer where you purchased your plow. If you are unable to satisfy your needs by your local dealer, please... -
Page 5: Unpacking And Assembly Of Plow
Then carefully set all parts to the side and follow set up and assemble instructions found in this manual. 3.1 Assembly Follow these steps when assembling your Maxim Plow: Locate the Left tool support ref # 6 having a sticker and the Right tool support ref # 7 with a sticker. - Page 6 HWP-24WH 3/8-16 Nyloc nut 3/8-16 x 2 Carriage Bolt Fix Plate Tool Union 5/16-18 x 1.25 Bolt & Nyloc Nut Tool Support Spacer 2. Insert ref# 16 (E) - 5/16” x 1.25” bolt through both tool support arms with ref # 17 (F) spacer in the middle, thread on ref # 8 (E) - 5/16”...
- Page 7 HWP-24WH 4. With the wooden handles both pointing in the same direction, mount on the inside ref# 18 - Handle metal axle bracket to each handle using (2) ref# 5 - 5/16” x 1.75” Flange bolt, and ref# 8 – 5/16” Nyloc nuts on the inside as shown above, and tighten. Make sure the Handle metal axle brackets both left and right bends are mounted as illustrated above.
- Page 8 HWP-24WH 7. Slide axle bushing ref# 20 into wheel ref# 21 as shown below. Axle Bushing 8. Lift handle and frame assembly to mount wheel. 9. Align Axle bushing, Left/Right frame and Handle metal axle bracket of each side and insert ref# 19 –...
- Page 9 This “D” pin will be used for all Plow Attachments. “D” pin to be used for all Plow attachments 12. Your Maxim High Wheel Plow is now ready to tip right side up. 13. Adjust right and left tool supports to adjust handle to a comfortable and safe operator height and begin to use.
-
Page 10: Final Set-Up
HWP-24WH 3.2 Final Set-up 1. Apply a small amount of dry silicone spray to axle bolt 4 PARTS BREAKDOWN 800-621-2789 HWP-24WH Rev B Page 10... -
Page 11: Parts List
HWP-24WH 4.1 Parts List Ref # Part # Description 20003 Wood handle 30001 Cross brace 30002 "D" pin 40001 Cultivator tine 30022 5/16-18x1.75 Flange Bolt 30004 Left Tool support 30005 Right Tool support 30006 5/16 Nyloc nut 30007 3/8-16x2 Carriage Bolt 40002 Tool Union 40003... -
Page 12: Warranty & Product Registration
Or, complete the following warranty/production registration form on the next page and return to: Maxim Attn: Warranty Registration Department 20195 South Diamond Lake Road, STE 100 Rogers, MN 55374 800-621-2789 HWP-24WH Rev A... - Page 13 HWP-24WH Or, Fax completed form to: 763-428-4821 800-621-2789 HWP-24WH Rev A Page 13...
- Page 14 HWP-24WH PAGE INTENTIONALLY LEFT BLANK 800-621-2789 HWP-24WH Rev A Page 14...
- Page 15 HWP-24WH 800-621-2789 HWP-24WH Rev A Page 15...
- Page 16 HWP-24WH Maxim 20195 S. Diamond Lake Rd, STE 100 Rogers, MN 5537 800-621-2789 800-621-2789 HWP-24WH Rev A Page 16...
