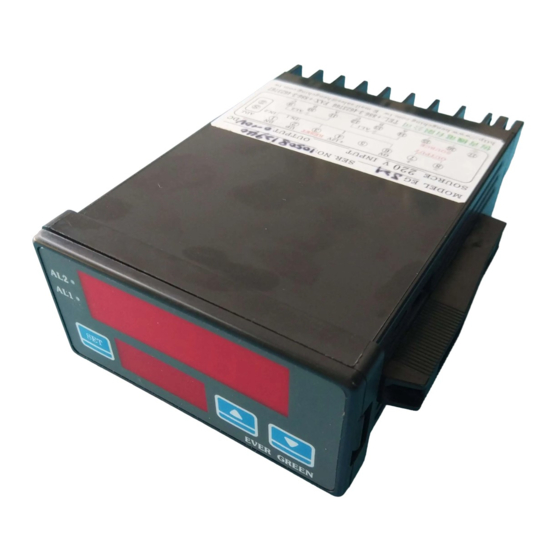

SETTING OF SPEED METER （EG-N2N）

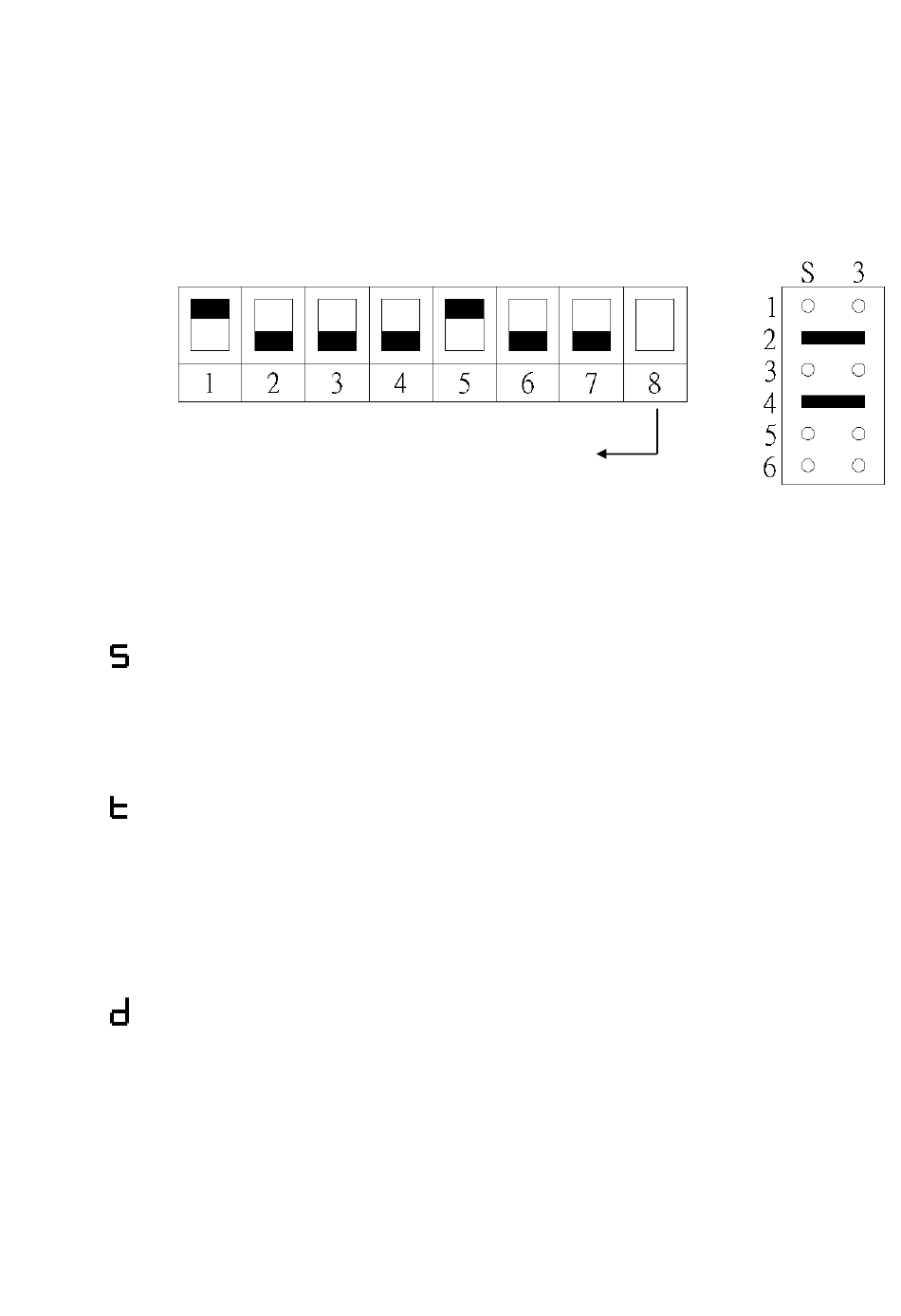

（1）ARRANGEMENT OF SW1 DIP SWITCH AND SHORT CHIP：
"
LOCK ON
SWITCHED"ON"﹐IT CAN BE SET H. L. ONLY
（2）DESCRIPTION OF CODE （IT WILL DISPLAY IN
FOLLOWING SEQUENCE AT THE FACE BOARD） ：
BASIC RATIO VALUE。
Ｈ SETTING OF HIGH LIMIT AL2。
Ｌ SETTING OF LOW LIMIT AL1。
BASIC TIME BASE OF VALTAGE﹐CURRENT﹐FREQUENCY﹐
IT HAS BEEN SET BEFORE SHIPMENT（EACH UNIT ID IS
1ms）
Ｕ ACCELERATING TIME BASE OF SPEED SETTER（EACH
INCREMENT IS UNIT 1ms） ﹐WHEN SET "0"﹐IT IS 0.5ms.
DECELERATING TIME BASE OF SPEED SETTER（EACH
DECREMENT UNIT IS 1ms） ﹐WHEN SET "0"﹐IT IS 0.5ms.
Ｐ SHIFTING OF DECIMAL POINT （0～4 DIFFERENT SETTING） ：
０ ALL INTEGERS﹐NO DECIMAL。
１ DECIMAL POINT IN ZERO INTEGER。
２ FOLLOWING DECIMAL POINT HAVE ONE INTEGER。
1/3
AND INSTRUCTION MANUAL
"
SWITCH﹐WHEN IT WAS
