- Page 1 DSP501/DSP502 Quick Start Guide The first steps with your DSP50x Software Version: 2.5.1r2997 Date: February 16, 2022...
-
Page 2: Table Of Contents
DSP501/DSP502 Contents 1 The DSP501/DSP502 2 Quick Start Guide 2.1 Setting up the DSP50x hardware ........ -
Page 3: The Dsp501/Dsp502

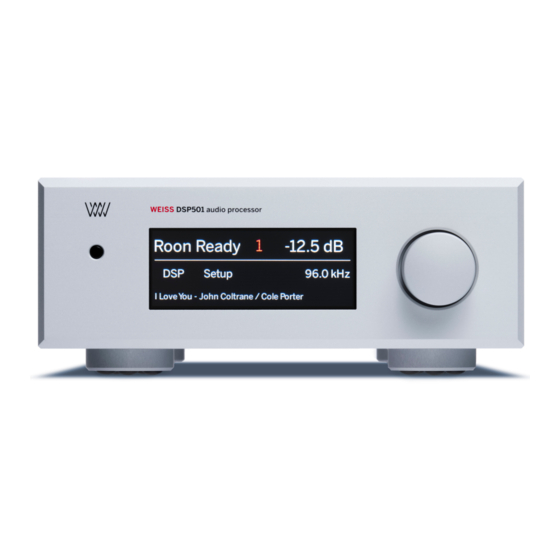

Figure 2: The front panel of the DSP501 The DSP502 uses a larger frame but else sports the same features as the DSP501. The front of the DSP502 is displayed in fig. 1, the DSP501 in fig. 2. The term DSP50x refers to both models. -
Page 4: Quick Start Guide
This Quick Start Guide presents the first steps to set up the DSP50x unit. Further and more detailed informations about the DSP50x and its features can be found in the DSP501/DSP502 User Manual and White Papers. 2.1 Setting up the DSP50x hardware Carefully unpack the DSP50x unit. -
Page 5: Output Selection
Weiss Enginering Ltd. DSP501/DSP502 Figure 4: The back panel of the DSP502 2.2 Output selection The DSP50x has two digital outputs, XLR and RCA number 1 and XLR and RCA number 2. Only one of the two outputs can be active at any time. The inactive one will be muted. -
Page 6: Output Level
Weiss Enginering Ltd. DSP501/DSP502 2.4 Output Level Be careful with the output level upon first opera- tion. Best is to lower the level to a very low value with the rotary knob or via the remote control. The DSP50x has an additional level control to match the basic output level with the amplifiers at hand. -
Page 7: Selecting The Input
• for iPad: mconnectHD or Creation 5 • for Android: BubbleUPnP 2.6.1 Roon Ready The Roon Core will acquire the Roon Ready Certified DSP501/DSP502 when required and automatically select its Roon Ready input. No further user input is required. The first steps with your DSP50x... -
Page 8: Ir Remote Control
Weiss Enginering Ltd. DSP501/DSP502 2.7 IR Remote Control Most of the keys on the IR remote control are self-explanatory. Here are some additional remarks: • The two top/middle keys select the active Output. Long press (> 2s) of either keys toggles the active Output’s Termination. -
Page 9: The Web Interface
DSP50x with an Ethernet cable to a Router unit. Enter this URL into your browser: • dsp501-nnnn.local (for a DSP501 unit) or dsp502-nnnn.local (for a DSP502 unit) • nnnn is the serial number of your DSP50x unit. You see that number on the back of the unit. -
Page 10: Screenshot Of The Dsp50X Web Interface
Weiss Enginering Ltd. DSP501/DSP502 Figure 13: Screenshot of the DSP50x web interface The first steps with your DSP50x Quick Start Guide... - Page 11 The front panel of the DSP501 ........
