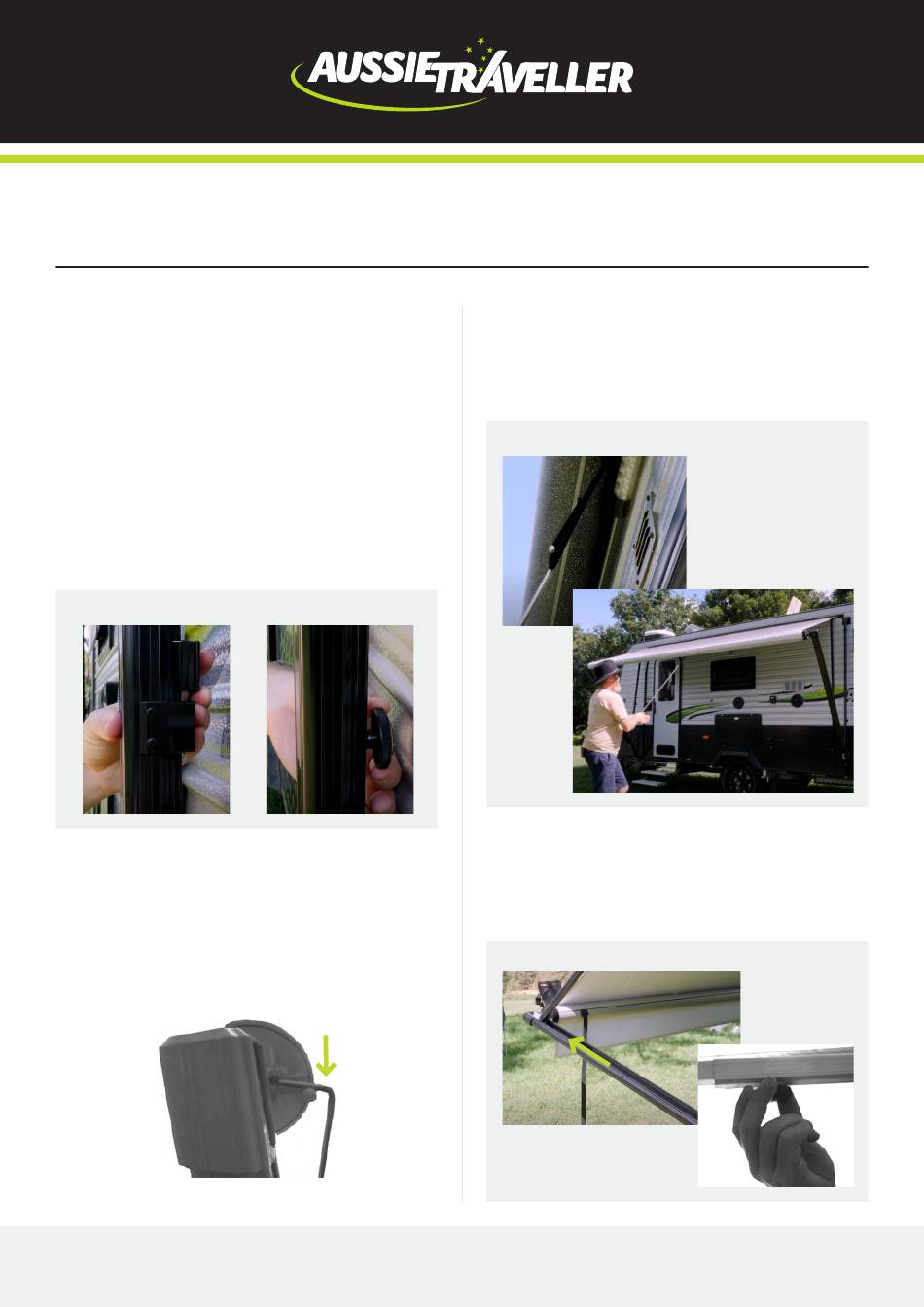

ROLL OUT PROCEDURE - ALL TERRAIN POSITION
We recommend the All Terrain position (when support
arms remain attached to van) as it is stronger and
more stable than Patio position.
1. Unlock both arms from travel position. To open
travel locks squeeze rafter and top support arm
together and move plastic slider upwards as far as
possible See Figure 1A.
Pull rod may be used to move slider in this step.
2. Loosen black rafter knobs located on back of both
rafters. See Figure 1B.
Figure 1A
3. Locate Ratchet Lever behind right end of roller.
Using the pull down rod, move lever downward
See Figure 2.
The ratchet mechanism is functioning correctly if a
clicking noise is heard when rolling the awning out
or in.
Figure 2
1300 663 868 | enquiries@aussietraveller.com.au | aussietraveller.com.au
BRISBANE SHOWROOM: 11-15 Oasis Court, Clontarf QLD 4019 | MELBOURNE SHOWROOM: 235 Barry Road, Campbellfield VIC 3061
SUNBURST ECLIPSE AWNING
Figure 1B
4. Insert pull rod through the loop in pull strap. Pull
the awning open until fully extended. See Figure
3A & 3B. Do not overextend the roller.
Figure 3A
5. Slide the rafter up support arm until it locks into
position over the black spring button. Tighten
knob on rafter to tension fabric. See Figure 4.
6. Repeat on other arm.
Figure 4
Figure 3B
