dtm EasyRX 868 Installation Manual

Download this manual

EasyRX 868

R A D I O C A R D F O R E A S Y G AT E C O N T R O L L E R

i n s t a l l a t i o n m a n u a l

GENERAL INFORMATION

EasyRX 868 radio card is designed for EASY gate controllers. EasyRX 868 radio receiver card is compatible with

DTM868MHz transmitters.

TECHNICAL DATA

4 designed for EASY gate controllers;

4 easy remote registering without need to use receiver button;

4 verifying number of registered remotes;

4 IRS coding system;

4 superheterodyne receiver, frequency 868 MHz;

4 memory up to 200 remotes DTM868MHz series;

4 power supply via gate controller connector;

4 working temperature -20°C / +55°C;

4 dimensions

[mm]:

55 40 13.

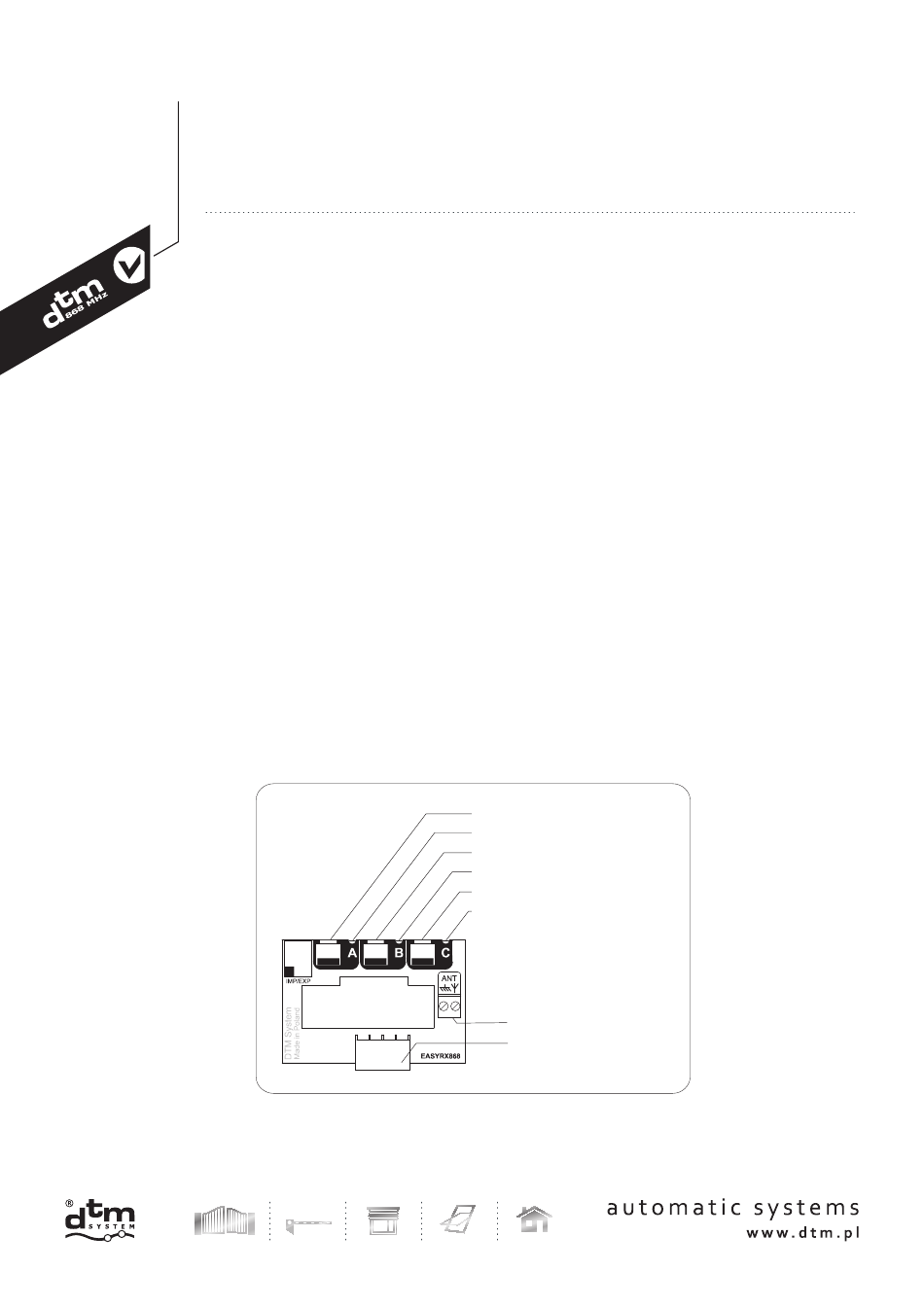

Fig.1 EasyRX 868 view.

channel A button

channel A LED

channel B button

channel B LED

channel C button

channel C LED

antenna connector

card connector

v. 1.0

Need help?

Do you have a question about the EasyRX 868 and is the answer not in the manual?

Page 1 1.0 GENERAL INFORMATION EasyRX 868 radio card is designed for EASY gate controllers. EasyRX 868 radio receiver card is compatible with DTM868MHz transmitters. TECHNICAL DATA 4 designed for EASY gate controllers;...
Page 2 Receiver has three identically programmed A, B and C channels analogue to OPEN A, OPEN B and OPEN C inputs in gate controller. Fig.2 Installing EasyRX 868 card into EASY gate controller. To register any button to first channel: 4 push and hold channelA button;...
Page 3 2.3. Single remote removing form receiver memory While holding receiver button press active button on the remote. If valid removal LED fade. Caution Holding receiver button for more than 15 seconds will erase memory 1 1 3 2.4. Changing buttons registration to channel lock disabled 4 remove remote from memory (see section 2.3.) 4 register remote according to section 2.1.
Page 4 W A R R A N T Y DTM System provides operational and ready to use devices. The producer gives 24 months warranty from the selling date to the end customer. This time is counted according to the producer warranty labels or serial numbers placed on every product.
