Summary of Contents for Centrodyne Z059

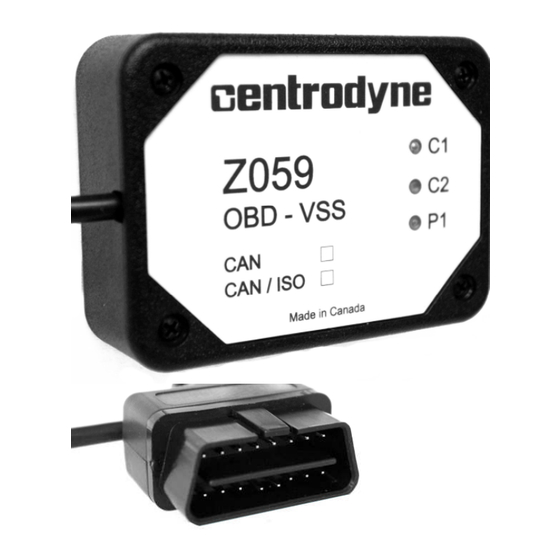

- Page 1 Z059 OBD VSS Installation and User Guide...
- Page 2 January 2010 Centrodyne Inc., All rights reserved. The information in this document is the property of Centrodyne Inc. Reproduction or transcription by any means, in whole or in part, without the prior written consent of Centrodyne Inc., is prohibited.
-
Page 3: Specifications
50 mA Consumption 14400 pulses / Km 23175 pulses / mile Frequency CAN Only model Installation ● Wire the taximeter to the Z059 according to the diagram below. Note which model you have. Model VSS Output Ignition Detect Description Wire Wire 1.05... - Page 4 ● Verify the P1 LED goes on with vehicle speed. At very low speeds the LED will flash with each speed pulse. ● Secure the installation, but allow for removal of the Z059 Converter in case of vehicle maintenance. Page 4...
-
Page 5: Status Led Indicators
Off – No speed Calibration The Z059 Converter outputs a fixed value of 14400 pulses per Km or 23175 pulses per mile. The taximeter must still be calibrated owing to differences in vehicle characteristics. Refer to the calibration procedure in the relevent taximeter docoument. -
Page 6: Troubleshooting
Z059 User and Installation Guide January 2010 Troubleshooting LEDs C1 and C2 Always Flashing If after two minutes of searching without success the unit cannot communicate with the vehicle. The most likely cause is incompatability with the particular vehicle model or year. - Page 7 Z059 User and Installation Guide January 2010 Contact Centrodyne For technical support or service you may email or call us at: support@centrodyne.com United States and Canada International 1-800-655-5575 01-514-331-8760 1-800-679-9939 Page 7...
