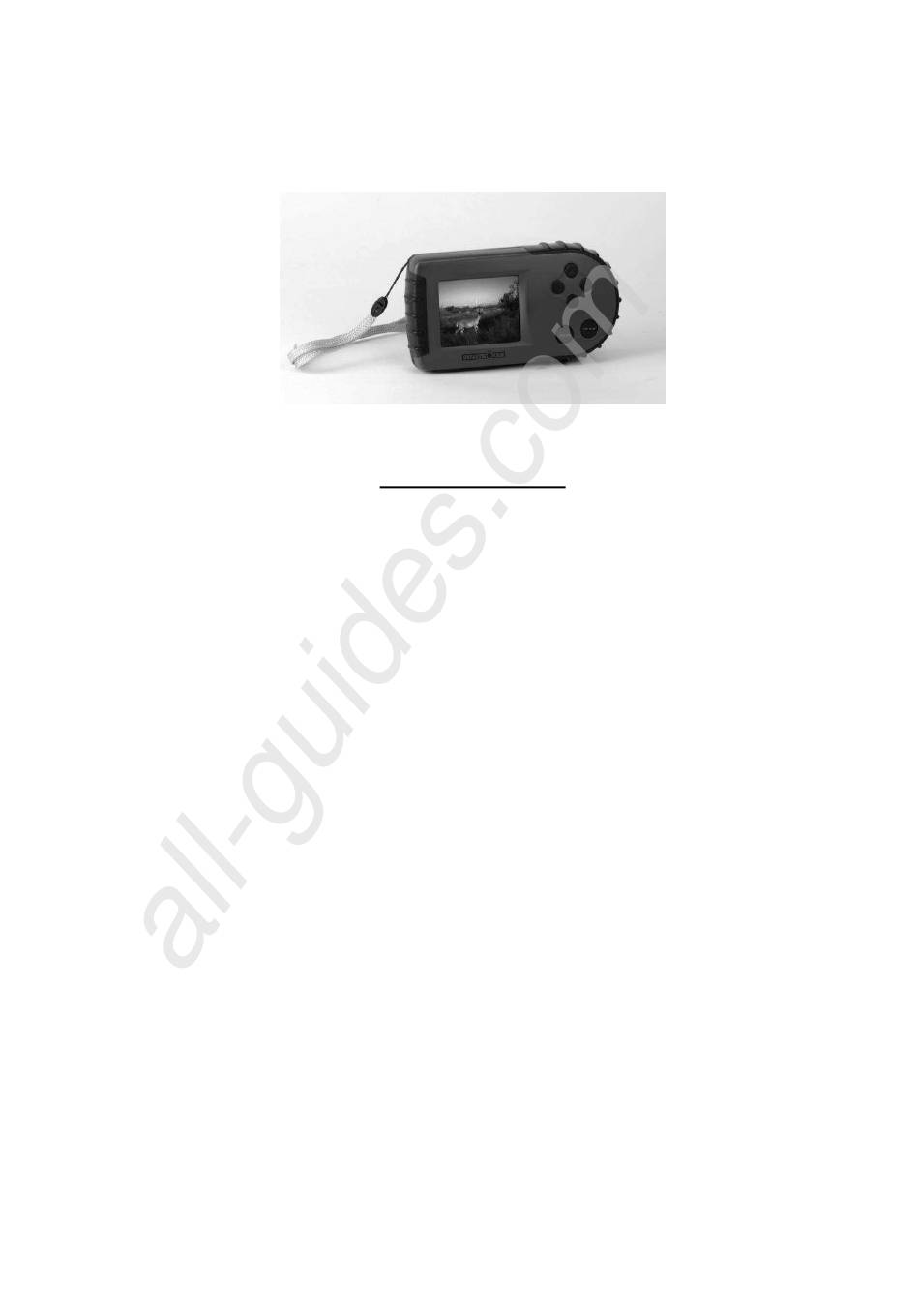

- Page 1 All manuals and user guides at all-guides.com Stealth Cam STC-CRV20 User’s Manual Toll Free Customer Support 1-877-269-8490 www.stealthcam.net Version 1.1 08/08...
-
Page 2: Warranty
Stealth Cam Limited Warranty Your Stealth Cam scouting camera is covered by a 90 day Limited Warranty on parts and labor from the date of original purchase, and purchases must be made through an authorized dealer. The warranty covers defects in workmanship and materials. -
Page 3: Table Of Contents
All manuals and user guides at all-guides.com STC-CRV20 Manual Contents Warranty Picture Viewer Overview Picture Viewer Contents Battery Installation Memory Card Compatibility Features Operations Information Display Use as Memory Card Reader Specifications General Information www.stealthcam.net Toll Free 877-269-8490... -
Page 4: Picture Viewer Overview

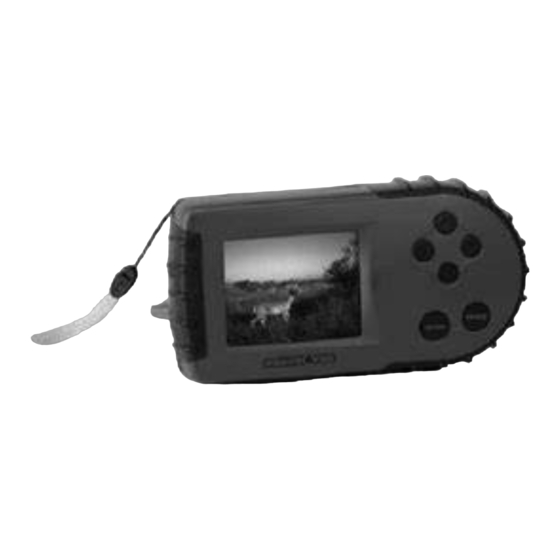

All manuals and user guides at all-guides.com STC-CRV20 Picture Player Overview www.stealthcam.net Toll Free 877-269-8490... -
Page 5: Picture Viewer Contents
All manuals and user guides at all-guides.com STC-CRV20 Picture Player Contents Model STC-CRV20 Picture Viewer • CDROM (Contains camera driver for Win 98 and Win 98SE • operating system) User Manual • USB cable • Barrel Plug Converter Cable •... -
Page 6: Battery Installation
(+/-) as noted inside battery compartment. 6V Lead Acid external battery The STC-CRV20 is equipped with an external power jack designed to accept a barrel plug cable to attach to a sealed lead acid battery. (sold separately). Complete 6V Lead Acid battery kits is available wherever Stealth Cam scouting cameras are sold or call toll free 877-269-8490. - Page 7 All manuals and user guides at all-guides.com STC-CRV20 Only Stealth Cam external battery accessories are recommended Attach the barrel plug from the 6V Lead Acid Battery kit to the receiving end of the Barrel Plug Converter Cable. Insert the small barrel plug from the Barrel Plug Converter Cable to the external power jack on the side of the picture viewer.
-
Page 8: Memory Card Compatibility
Memory Card Compatibility The STC-CRV20 picture viewer is designed to accept SD memory card that was used in storing images from any of the Stealth Cam and Wildview digital camera models. Except from models with Audio. Please note: Do not alter the file name that is used in storing the image capture by your Stealth Cam or Wildview Digital camera. -
Page 9: Features
All manuals and user guides at all-guides.com STC-CRV20 Features Zoom: Magnify the image up to 4 times its normal size. • Memory Card: If you have 2 SD card insert in the viewer at the • same time, you can choose which card you want to view the image. -
Page 10: Operations
All manuals and user guides at all-guides.com STC-CRV20 Operations Power On/Off: Push and hold the Power/Mode button for • approximately 5 seconds or until you see the Stealthcam logo on the screen to power on the unit. To turn the unit off, push and hold the button for approximately 2 seconds or until the screen is turned off. - Page 11 All manuals and user guides at all-guides.com STC-CRV20 Push the button again for zoom in x4, and push the button 4 times to return to normal view x1 zoom. Panning: While the image is in zoom mode, you can pan the •...
- Page 12 All manuals and user guides at all-guides.com STC-CRV20 Delete All: To delete all image in the memory card. Choose Yes or No by using the UP/DOWN arrow and confirm your selection by pressing Right Arrow once. Format: To format your memory card. Choose Yes or No by using the UP/DOWN arrow and confirm your selection by pressing Right Arrow once.
- Page 13 All manuals and user guides at all-guides.com STC-CRV20 Maximum Image file number display limitation: If there are more than 998 files saved in the SD card, the maximum playback quantity number on the information bar will only show the first 998 files, in file number sequence, regardless of still image or AVI file.
- Page 14 All manuals and user guides at all-guides.com STC-CRV20 automatically power off when SD card B reaches its maximum memory capacity. 2. If SD card B has enough memory capacity to hold the files copied or cut from card A: Copy all (for less than 998 image files) - you may •...
- Page 15 All manuals and user guides at all-guides.com STC-CRV20 the same files to cut. After no more image files exists in Card A, the viewer screen will show “No Image.” 4. When using Cut, the LCD screen will show "Moving…... "...
- Page 16 All manuals and user guides at all-guides.com STC-CRV20 If there are more than 998 image files inside the SD card, • the information bar displays the maximum number of 998 files, so only the images you see on the viewer may be deleted all or one at a time while the remaining files exist in the SD card.
-
Page 17: Information Display
All manuals and user guides at all-guides.com STC-CRV20 Information Display Top Information Bar: • o Shows current image number vs. total number of images in the memory card. o Memory card slot in use o Zoom value o Battery Status... -
Page 18: Use As Memory Card Reader
All manuals and user guides at all-guides.com STC-CRV20 Use as Memory Card Reader For Windows XP, 2000, ME user This picture viewer is a plug and play unit and can be used as memory card reader when you connect the picture viewer to a computer via USB cable. - Page 19 Software installation Insert the CDROM in CD driver of your PC. • Make sure a memory card is inserted in the STC-CRV20 • picture viewer. Turn on the picture viewer and it will automatically display the first file saved in the memory card.
- Page 20 All manuals and user guides at all-guides.com STC-CRV20 Follow the instructions shown on screen from your PC to • completely install the driver and application program. Unplug the USB Cable and restart windows. • If your computer doesn’t run automatically, please click “Start”...
-
Page 21: Specifications
All manuals and user guides at all-guides.com STC-CRV20 Specification Built in 2.0” Color LCD display. • Memory support: • Maximum file size of still image supported: 5MB pixel. Maximum file size of AVI clip supported: 1.8MB Warning If you have image with file size larger than 5MB, or AVI file size larger than 1.8MB, it may or may not display properly. -
Page 22: General Information
All manuals and user guides at all-guides.com STC-CRV20 General Information Storing conditions Store in cool and dry location when it’s not in use. • Operating Environment: 14 to 104 deg F (-10 to 40 deg C). 20- • 85% relative humidity, non-condensing.
