Fume Extractor
Model: ZD-159
Features:
• Dual function: It can be used as a bench fan or as a solder smoke absorber

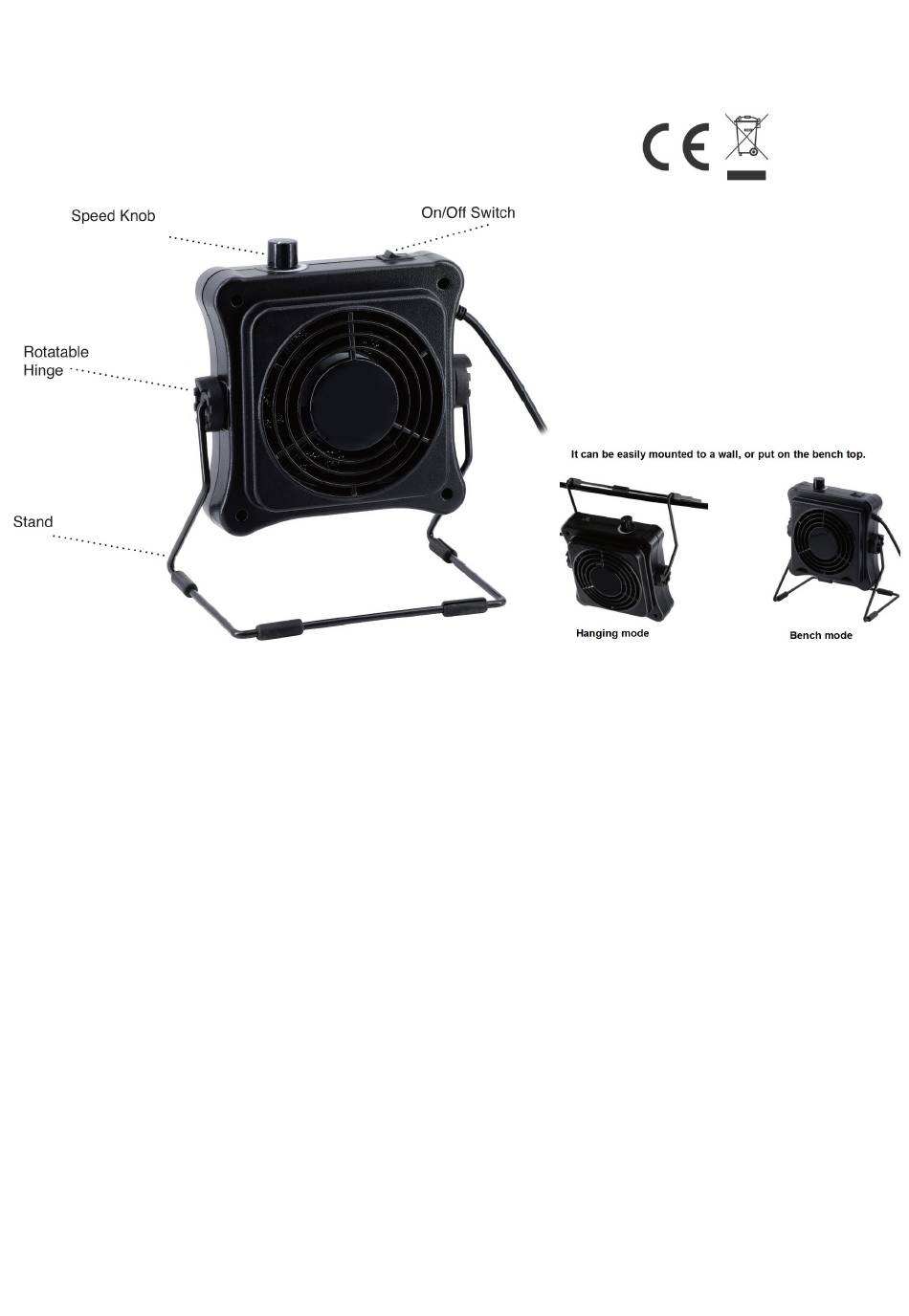

• Positioning Options: Designed to set on a desktop or can be hung from a support beam
• Adjustable speed: Turn the knob at the top of the fan to adjust the speed.
• 1 carbon fiber filter is included
• Low noise and long life fan
Specifications
Power: 23W
ESD safe: Optional
Absorption capacity: 0.2-1M³/minute
Blowing capacity: 0.2-1.2M³/minute
Operation
1. Position the fan as needed
2. If use the bench fan function, use the Front Side
3. If use the smoke absorber function, make sure the Carbon Filter has been installed, and aim the Reverse Side
towards the solder smoke.
4. Plug in the fan and switch it on.
5. Adjust the Speed Knob to your preferred setting (1-10) to change the fan speed.
