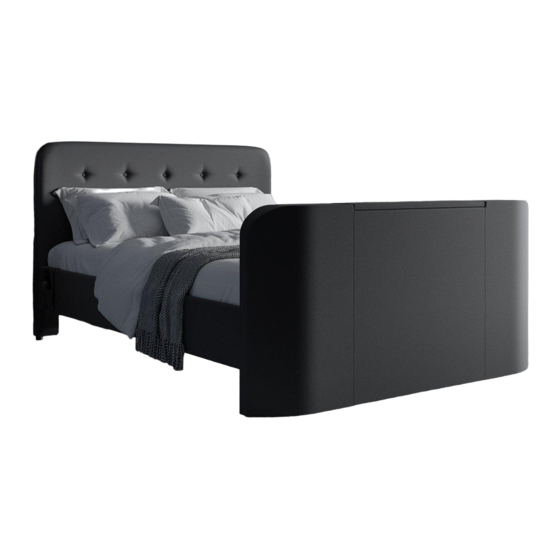

- Page 1 Evans TV Bed Double Size King Size 1 hour approx Two person assembly time assembly 210905...
-
Page 2: Assembly Tips
Please ensure that packaging is disposed of in a safe and environmentally friendly way, and recycle where possible. Our assembly instructions are printed on recycled paper. Please keep your assembly instructions safe to refer back to in the future. Assembly Guide - Page 2 Evans TV Bed -... -
Page 3: Parts List
Double / King C. Side rails H. Bentwood Slat Set D. Centre Support Rail I. Holster for Remote Controls E. Centre Support Legs Tools required No more tools needed. 1 1 0 0 Assembly Guide - Page 3 Evans TV Bed -... -
Page 4: Bed Assembly
Fit support legs (E) to centre support rail then fit double plastic slat caps (F), align the lugs and push gently into place. Double Size x3 for Double Size x4 for King Size Assembly Guide - Page 4 Evans TV Bed -... - Page 5 Using bolt (a) & flat tighten all bed assembly bolts 100%. washer (c) loosely screw into place. Please make certain of the correct orientation by following the labels. Evans TV Bed - Assembly Guide - Page 5...
-
Page 6: Electrical & Cable Connections
Remove TV Lift remote control. Press the “UP” button to raise the TV lift. Remove transit packing. Make sure all protection is removed then please dispose of it responsibly. Assembly Guide - Page 6 Evans TV Bed -... - Page 7 3: STEREO OUTPUT (L & R) 4: VGA (PC VIDEO CONNECTION) 5: AUDIO INPUT (FROM PC) 6: HDMI SOCKETS x2 7: RF - CO-AX AERIAL SOCKET Media Cables are not supplied Assembly Guide - Page 7 Evans TV Bed -...
- Page 8 Do not allow antenna to lean backward s or it shall get trapped & break o˜. PLUG IN - KEEP ALL CABLES TIGHT ！ USING CLIPS & TIES PROVIDED. cover from cable clips & adhere to back of TV. Assembly Guide - Page 8 Evans TV Bed -...
- Page 9 VESA bolts, please do not over-tighten. w x1 Re-plug TV into it's power socket. Press the “DOWN” button to lower the TV lift. Assembly Guide - Page 9 Evans TV Bed -...
- Page 10 Unroll the slats and slide on x8 single caps as shown (G) Slide slats into double caps (F). iii) Align lugs with holes in side rails and press down. Press down Assembly Guide - Page 10 Evans TV Bed -...
- Page 11 Double: 193 x 137.5 Slat width Distance between slats (cm) Double or King: 7.0 Slat Dimensions (LWH cm) Floor to top of slat Top of side rail to top of slat Assembly Guide - Page 11 Evans TV Bed -...
- Page 12 Evans TV bed safety information. GENERAL INFORMATION It is very important not to place any vessel containing liquids, e.g. drinks or vase of flowers on top of the TV footboard that may accidentally spill and enter the TV compartment as this could cause damage to the TV and/or the TV lifting equipment. If this happens turn o°...
-
Page 13: Care And Maintenance
Metal tends to be more resilient to everyday wear and tear. We recommend to gently dust your metal furniture and keep it dry to maintain its look. Thank you for shopping with us - we hope you have a great night's sleep Care and maintenance - Page 13 Evans TV Bed -...
