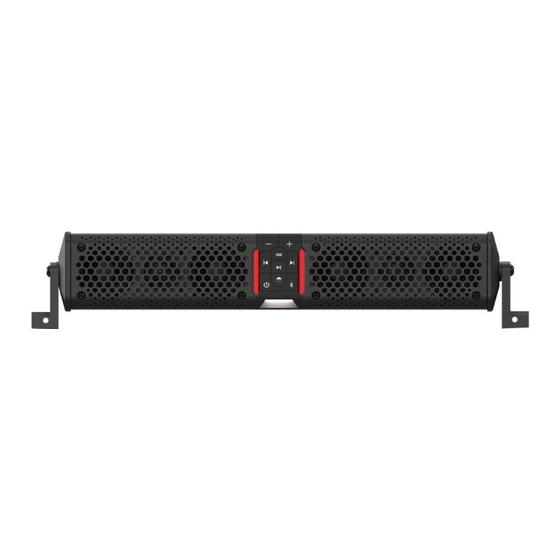

- Page 1 STEALTH-XT Powersport Soundbar Owner’s Manual...
- Page 2 Wet Sounds and will help you understand the correct installation methods and use of this product. If you have any questions or concerns, please contact a certified Wet Sounds dealer. You may also contact Wet Sounds technical support by dialing 1-877-WET-SPKR (1-877-938-7757).
-
Page 3: Table Of Contents
Soundbar Dimensions ............Installation Specifications ............Wiring Diagram ............... Control Panel Functions ............Remote Functions ..............Audio Source Connection ..........11-12 Factory Reset & Remote Paring ........... RGB Modes ................Limited Warranty ..............Wet Sounds Stealth XT Soundbar Owner’s Manual... -
Page 4: Soundbar Features & Specifications
• 3.5mm line output (2V) to connect an additional external amplifier and speakers. • IP67 rated RF wireless remote • Universal L-brackets and spacers with hardware included • Wet Sounds patented Fast Track sliding mount system Stealth XT Soundbar Specifications Stealth XT 6 Specs: • 4 marine-rated 3” full range drivers •... -
Page 5: Included Products
• Stealth Clamp Round 2.0” (ST-ADP-RND 2.0) • Stealth Clamp Round T 2.0” (ST-ADP-RND 2.0T) • Stealth Clamp Round 1.75” ( ST-ADP-RND 1.75) • Stealth Clamp Round 1.5” (ST-ADP-RND 1.5) Slider Bracket: • Stealth Slider Bracket (ST-ADP-SLIDER BRACKET) Wet Sounds Stealth XT Soundbar Owner’s Manual... -
Page 6: Soundbar Dimensions
Stealth XT 6 Stealth XT 8 Stealth XT 12 23.34” 28.87” 35.76” 25.07” 30.60” 37.49” 24.16” - 26.85” 29.63” - 32.32” 36.52” - 39.21” 25.90” - 28.58” 31.36” - 34.05” 38.25” - 40.94” Wet Sounds Stealth XT Soundbar Owner’s Manual... - Page 7 Configuration A: L-Bracket, No Spacer Configuration B: L-Bracket, with Spacer Configuration C: L-Bracket, No Spacer Configuration D: L-Bracket, with Spacer Wet Sounds Stealth XT Soundbar Owner’s Manual...
-
Page 8: Installation Specifications
AUX Input cable to a desired location. Optional: Route and connect the blue Remote Wire and the blue Signal Output cable to an additional amplifier or Stealth AS subwoofer. 7. Switch back into Run Mode. Wet Sounds Stealth XT Soundbar Owner’s Manual... -
Page 9: Wiring Diagram
Stealth XT Soundbar Wiring Diagram Remote Wire Signal Output Additional Amplifier & Speakers* Stealth AS Subwoofer* AUX Input Media Device* 20A Fuse Ground Power Battery* *Products not included Wet Sounds Stealth XT Soundbar Owner’s Manual... -
Page 10: Control Panel Functions
Short press to enter Bluetooth ® pairing mode( icon blue). Enter broadcasting mode by long pressing (LP) the Bluetooth ® icon for 3 sec ( icon green). For additional instructions reference page 11-12. Wet Sounds Stealth XT Soundbar Owner’s Manual... -
Page 11: Remote Functions
Short press to skip the current track. 6. Volume Up: Short press to increase the soundbar volume. 7. Volume Down: Short press to lower the soundbar volume. 8. Track Back: Short press for the previous track. Wet Sounds Stealth XT Soundbar Owner’s Manual... -
Page 12: Audio Source Connection
Once the volume level is zero, the levels are now in sync. Volume is now freely adjustable and set to desired levels. Note: Secondary soundbars can independently adjust their volume after the volume sync. To re-sync, follow the steps again in order. Wet Sounds Stealth XT Soundbar Owner’s Manual... -
Page 13: Factory Reset & Remote Paring
Turn the soundbar back on and wait for the icon to flash blue. Very long press the Volume down and up buttons on the remote for 8-10 sec until the RGB lights flash on the soundbar. The remote is now paired. Wet Sounds Stealth XT Soundbar Owner’s Manual... -
Page 14: Rgb Modes
Fade multi color Cycles colors in order shown above Mode 11 Breath multi color Dims on/off while cycling colors RGB brightness reacts to soundbar audio Music multi color Mode 12 while cycling through colors Wet Sounds Stealth XT Soundbar Owner’s Manual... -
Page 15: Limited Warranty
What Wet Sounds, Inc. Will Do Wet Sounds, Inc. will repair any part of your product that proves to be defective in materials or workmanship. In the event repair is not possible, Wet Sounds, Inc. will replace the product in question. - Page 16 Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Wet Sounds Stealth XT Soundbar Owner’s Manual...
- Page 17 Bluetooth SIG, Inc. and ® any use of such marks by Wet Sounds, Inc. is under license. Other trademarks and trade names are those of their respective owners. © 2022 Wet Sounds, Inc. All Rights Reserved. WET SOUNDS and associated logos where applicable are registered trademarks of Wet Sounds Corporation in the United States and/or other countries.
