Summary of Contents for Epcom B8TURBODP

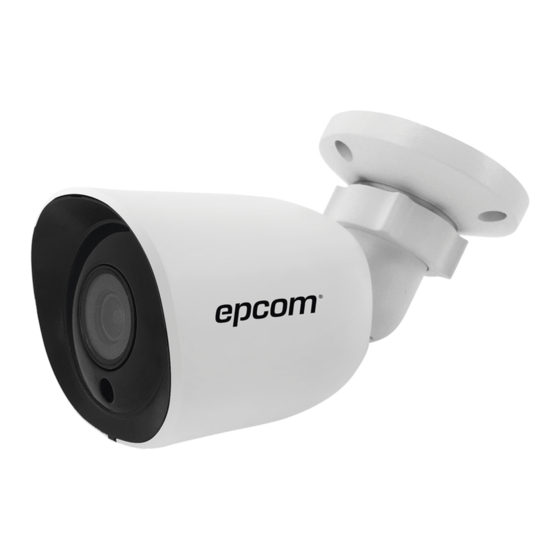

  • Page 1 B8TURBODP User Manual...

  • Page 2: Installation Notice

    △ INSTALLATION NOTICE  Please keep the equipment in a dry and non-corrosive gas environment to avoid direct sunlight;  Do not drop the camera or subject it to physical shock and away from electromagnetic interference （ Otherwise keep it may damage the product ）...
  • Page 3 FEATURES  Using high performance CMOS image sensor,1.0/1.3/2.0 Megapixel high-performance CMOS,Images are Clear and delicate, up to 720P/960P/1080P resolution;  Support ICR ,Auto Day/Night switch;  Support OSD menu;  720P/960P Support 75-3 coaxial cable,Transmission is over 500 meters,1080P Support 75-3 coaxial cable,Transmission is over 300 meters;...

  • Page 4: Technical Parameters

    2. TECHNICAL PARAMETERS Resolution 1080P Signal System PAL/NTSC 1920*1080 Effective Pixels IR Range 15-80m Video Output AHD/CVI/TVI/CVBS Mode Day/Night IR cut filter with auto switch 25fps(50Hz),30fps(60Hz) Video Frame Rate 0.01Lux @ (F1.2,AGC ON),0 Lux with IR Min.Illumination S/N Ratio >60dB Shutter Time 1/25s(1/30s)~1/100,000s White Balance...

  • Page 5: Operational Mode

    3. OPERATIONAL MODE 3.1 Circulation button switch： Operation manual: press camera waterproof switch in cable end for 3~5 seconds once,video signal will sequentially switch among CVI,AHD,TVI,CVBS model. 3.2 Toggle switch： Operation manual: press the switch (as following picture)and details as following 4 block picture.video signal sequentially switch as TVI,AHD,Analog(CVBS) and CVI.
  • Page 6 3.3 OSD menu button switch： CVBS: Turn UP hold on 5 seconds;CVI: Turn down hold on 5 seconds;AHD: Turn left and hold on 5 seconds;TVI: Turn right and hold on 5 seconds.
  • Page 7 a. OSD CONFIGURATION: MENU VIDEO- DAY-NIGHT LANGUAGE RESET SAVE-EXIT EXIT SETTING MODE BRIGHTNESS MODE CONTRAST ENGLISH EXPOSURE- RETURN RETURN SHARPNESS CHINESE -MODE COLOR GAIN GAIN RETURN TRANSFER MODE FORMAT DWDR RETURN b. AE BRIGHTNESS 1-20 EXPOSURE MODE GLOBE/CENTER/BLC/FLC GAIN 1-16 RETURN...

  • Page 8: Video Setting

    c. WB Mode ATW/MWB RETURN d. DAY AND NIGHT DAY AND NIGHT Mode COLOR/ B/W /EXT RETURN e. VIDEO-SETTING VIDEO-SETTING CONTRAST 1-50 SHARPNESS 1-20 COLOR GAIN 1-31 1-15 TRANSFER MODE AHD/CVI/TVI/CVBS FORMAT NTSC/PAL DWDR OFF/ON RETURN...
  • Page 9 4. SERVICE INSTRUCTION The camera maintenance Lens surface are coated anti-reflection coating, in case of dust, grease, fingerprints, etc which would produce harmful substances and resulting in a decline in the performance or cause scratches, once found dirt please follow the steps below. Step 1: first use a balloon or soft brush to clean the surface of the lens and avoid the surface of the dust particles in the process.
  • Page 10 from the center after cleaning the paper with oil-free cotton cloth or lens cleaner. Still do not wipe clean, can change other cloth to wipe more times. Infrared camera glass maintenance Use a soft cloth with a little water or oil, then wipe it out from the center after rubbing alcohol or lens cleaner with a non-oily cotton cloth or lens cleaner.
